Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI GSR 600 2006

TRANSMISSION

Item numbers

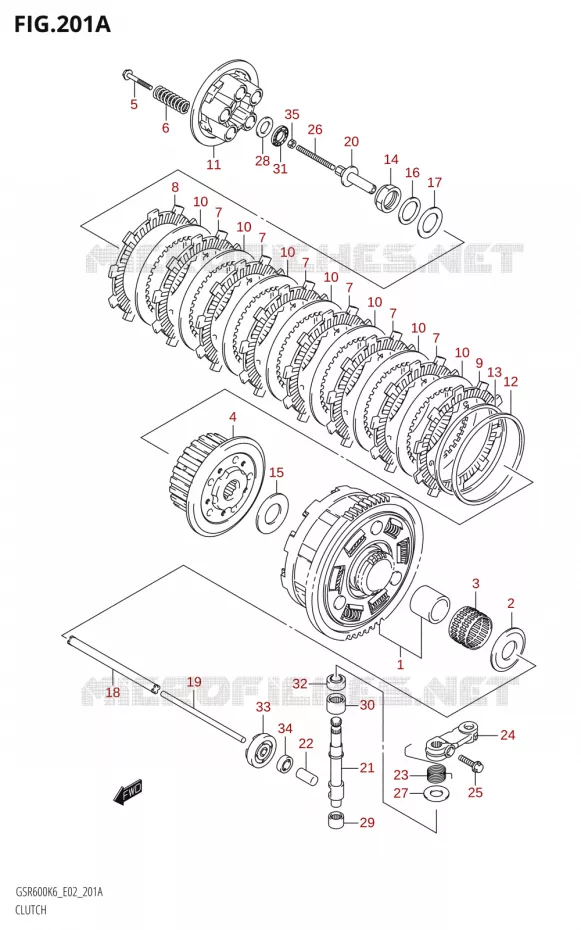

CLUTCH Suzuki MOTO 600 GSR 2006 GSR600K6(E19)
1
2
3
4
5
6
7
7
7
7
7
7
8
9
10
10
10
10
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN(NT:78)

21200-39820-000   2120039820000

2120039820000

Unit Price

2
WASHER(25X54X2.4)
WASHER(25X54X2.4)

09160-25073-000   0916025073000

0916025073000

Unit Price

3
BEARING(35X40X29.8)

09263-35036-000   0926335036000

0926335036000

Unit Price

4
HUB, CLUTCH SLEEVE

21410-44G00-000   2141044G00000

2141044G00000

Unit Price

5
BOLT, CLUTCH SPRING

21412-35F00-000   2141235F00000

2141235F00000

Unit Price

6
SPRING, CLUTCH

21413-35F10-000   2141335F10000

2141335F10000

Unit Price

7
PLATE, CLUTCH DRIVE NO.1

21441-31E70-000  

21441-31E50-000
 2144131E70000

Unit Price

8
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE(T:3.0)

21441-31E60-000   2144131E60000

2144131E60000

Unit Price

9
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE(T:3.0)

21442-31E21-000   2144231E21000

2144231E21000

Unit Price

10
PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN, NO.2(T:2.6)

21451-31E30-000   2145131E30000

2145131E30000

Unit Price

11
DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-35F00-000   2146235F00000

2146235F00000

Unit Price

12
SEAT,CLUTCH PLATE WAVE WASHER
SEAT, CLUTCH PLATE WAVE WASHER

21471-31E20-000   2147131E20000

2147131E20000

Unit Price

13
WASHER,CLUTCH PLATE WAVE
WASHER, CLUTCH PLATE WAVE

21472-31E01-000   2147231E01000

2147231E01000

Unit Price

14
NUT
NUT

09159-24010-000   0915924010000

0915924010000

Unit Price

15
WASHER SLEEVE HUB<br />WASHER(25X50X2.5)
WASHER SLEEVE HUB
WASHER(25X50X2.5)

09160-25056-000   0916025056000

0916025056000

Unit Price

16
WASHER CL SLEEVE HUB<br />WASHER(24.2X35X2)
WASHER CL SLEEVE HUB
WASHER(24.2X35X2)

09164-24006-000   0916424006000

0916424006000

Unit Price

16
WASHER
WASHER(24.2X35X2.7)

09164-24008-000   0916424008000

0916424008000

Unit Price

17
SHIM,25X38X1.0<br />SHIM(25X38X1)
SHIM, 25X38X1.0
SHIM(25X38X1)

09181-25223-000   0918125223000

0918125223000

Unit Price

18
ROD,CLUTCH<br />ROD,CLUTCH(L:161)
ROD, CLUTCH
ROD, CLUTCH(L:161)

23110-27A00-000   2311027A00000

2311027A00000

Unit Price

19
ROD,CLUTCH PUSH
ROD, CLUTCH PUSH

23111-05A01-000   2311105A01000

2311105A01000

Unit Price

20
PIECE, CLUTCH PUSH

23121-41G00-000   2312141G00000

2312141G00000

Unit Price

21
CAMSHAFT, CLUTCH RELEASE

23122-41G00-000   2312241G00000

2312241G00000

Unit Price

22
CAP, CLUTCH PUSH ROD

23123-41G00-000   2312341G00000

2312341G00000

Unit Price

23
SPRING, CLUTCH RELEASE RETURN

23125-44G00-000   2312544G00000

2312544G00000

Unit Price

24
ARM, CLUTCH RELEASE

23271-41G10-000   2327141G10000

2327141G10000
Not available
25
BOLT
BOLT(6X20)

09103-06223-000   0910306223000

0910306223000

Unit Price

26
SCREW, CLUTCH PUSH RO
SCREW(6X73)

09134-06015-000   0913406015000

0913406015000

Unit Price

27
WASHER(10.5X24X1)
WASHER, 10.5X24X1(10.5X24X1.0)

09160-10020-000   0916010020000

0916010020000

Unit Price

28
WASHER<br />WASHER(15.5X28X1)
WASHER
WASHER(15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

29
BEARING(10X14X10)

09263-10014-000   0926310014000

0926310014000

Unit Price

30
BEARING, CL RLSE
BEARING(12X18X12)

09263-12027-000   0926312027000

0926312027000

Unit Price

31
BEARING(15X28X2)
BEARING(15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

32
OIL SEAL(10X20X6)

09282-10012-000   0928210012000

0928210012000

Unit Price

33
OIL SEAL
SEAL, OIL, 6X34X10(6X37X710)

09285-06011-000   0928506011000

0928506011000

Unit Price

34
OIL SEAL<br />OIL SEAL(10X17X5)
OIL SEAL
OIL SEAL(10X17X5)

09285-10004-000   0928510004000

0928510004000

Unit Price

35
NUT
NUT

08310-0006A-000  

083100006A000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki GSR 600 of GSR. Let us know if you have any questions.
