Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (MODEL L0)

FOOTREST FOR SUZUKI GSR 600 2008

FUEL TANK (MODEL K6) REFER TO FIG.38A(F-12) FOR MODEL K7

Item numbers

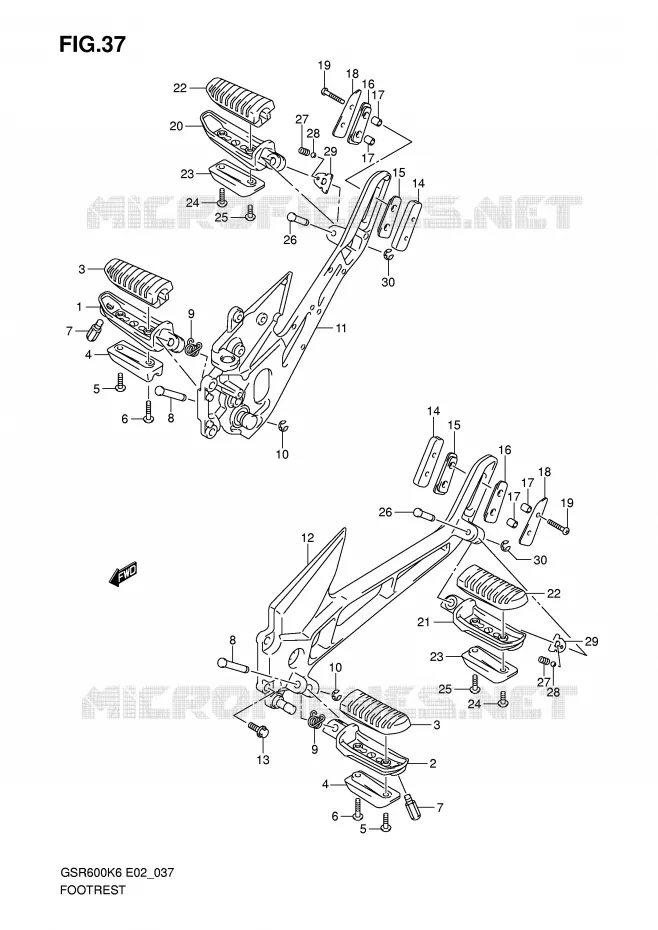

FOOTREST Suzuki MOTO 600 GSR 2008 GSR600AK8(E2)
1
1
2
2
3
3
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
21
22
22
23
23
24
24
25
25
26
26
26
26
27
27
27
27
28
28
29
29
29
29
30
30
1
BAR, FR FOOTREST, R
BAR, FRONT FOOTREST RH

43511-44G00-000   4351144G00000

4351144G00000

Unit Price

1
BAR, FR FOOTREST RH
BAR, FRONT FOOTREST RH

43511-44G10-000   4351144G10000

4351144G10000

Unit Price

2
BAR, FR FOOTREST, L
BAR, FRONT FOOTREST LH

43521-44G00-000   4352144G00000

4352144G00000

Unit Price

2
BAR, FR FOOTREST LH
BAR, FRONT FOOTREST LH

43521-44G10-000   4352144G10000

4352144G10000

Unit Price

3
RUBBER, FOOTREST
RUBBER

43550-44G00-000  

4355044G00000
Not available
3
RUBBER, FOOTREST
RUBBER

43550-44G20-000  

4355044G20000
Not available
4
BALANCER, FR FOOTREST
BALANCER, FOOTREST

43536-44G00-000   4353644G00000

4353644G00000

Unit Price

5
SCREW
SCREW, OUTER

02142-0525A-000   021420525A000

021420525A000

Unit Price

6
SCREW
SCREW, INNER

02142-0530A-000   021420530A000

021420530A000

Unit Price

7
BOLT, BANK SENSOR

43576-48B02-000   4357648B02000

4357648B02000

Unit Price

8
PIN

09208-08019-000   0920808019000

0920808019000

Unit Price

9
SPRING

09448-14046-000   0944814046000

0944814046000

Unit Price

10
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

11
BRACKET, FOOTREST RH

43510-44G30-000   4351044G30000

4351044G30000
Not available
11
BRACKET, FOOTREST RH

43810-44G00-000   4381044G00000

4381044G00000
Not available
11
BRACKET, FOOTREST RH

43810-44G10-000   4381044G10000

4381044G10000
Not available
12
BRACKET, FOOTREST LH

43521-44G30-000   4352144G30000

4352144G30000
Not available
12
BRACKET, FOOTREST LH

43821-44G00-000   4382144G00000

4382144G00000
Not available
12
BRACKET, FOOTREST LH

43821-44G10-000   4382144G10000

4382144G10000
Not available
13
BOLT, FR FOOTREST BRK
BOLT

09106-08167-000   0910608167000

0910608167000

Unit Price

14
BARANCER, BRACKET

43591-44G00-000   4359144G00000

4359144G00000
Not available
15
RUBBER, INNER

43594-44G00-000   4359444G00000

4359444G00000
Not available
16
RUBBER, OUTER

43593-44G00-000   4359344G00000

4359344G00000
Not available
17
SPACER(6.5X10X11.5)<br />SPACER
SPACER(6.5X10X11.5)
SPACER

09180-06289-000   0918006289000

0918006289000

Unit Price

18
PLATE

43595-44G00-000   4359544G00000

4359544G00000
Not available
19
SCREW(6X25)
BOLT

09139-06057-000   0913906057000

0913906057000

Unit Price

20
BAR, PILLION FOOTREST, R
BAR, PILLION RH

43611-44G00-000   4361144G00000

4361144G00000

Unit Price

21
BAR, PILLION FOOTREST, L
BAR, PILLION LH

43621-44G00-000   4362144G00000

4362144G00000

Unit Price

22
RUBBER, FOOTREST
RUBBER

43550-44G00-000  

4355044G00000
Not available
23
BALANCER, PILLION FOOTREST

43534-44G00-000  

43534-44G01-000
 4353444G00000

Unit Price

24
SCREW<br />SCREW, OUTER
SCREW
SCREW, OUTER

02142-0520B-000   021420520B000

021420520B000

Unit Price

25
SCREW<br />SCREW, INNER
SCREW
SCREW, INNER

02142-0525B-000   021420525B000

021420525B000

Unit Price

26
PIN

09208-08017-000   0920808017000

0920808017000

Unit Price

26
PIN

09208-08020-000   0920808020000

0920808020000

Unit Price

27
SPRING,STAND GRIP<br />SPRING
SPRING, STAND GRIP
SPRING

09440-05003-000   0944005003000

0944005003000

Unit Price

27
SPRING
SPRING

09440-05005-000   0944005005000

0944005005000

Unit Price

28
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

29
PLATE, PILLION FOOTREST
PLATE

43816-01H20-000   4381601H20000

4381601H20000

Unit Price

29
PLATE, PILLION, R
PLATE

43816-44G00-000   4381644G00000

4381644G00000

Unit Price

30
E RING
E RING

08332-1106A-000  

08332-1106B-000
 083321106A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of GSR. Let us know if you have any questions.

Genuine parts for Suzuki 600 GSR 2008
