Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

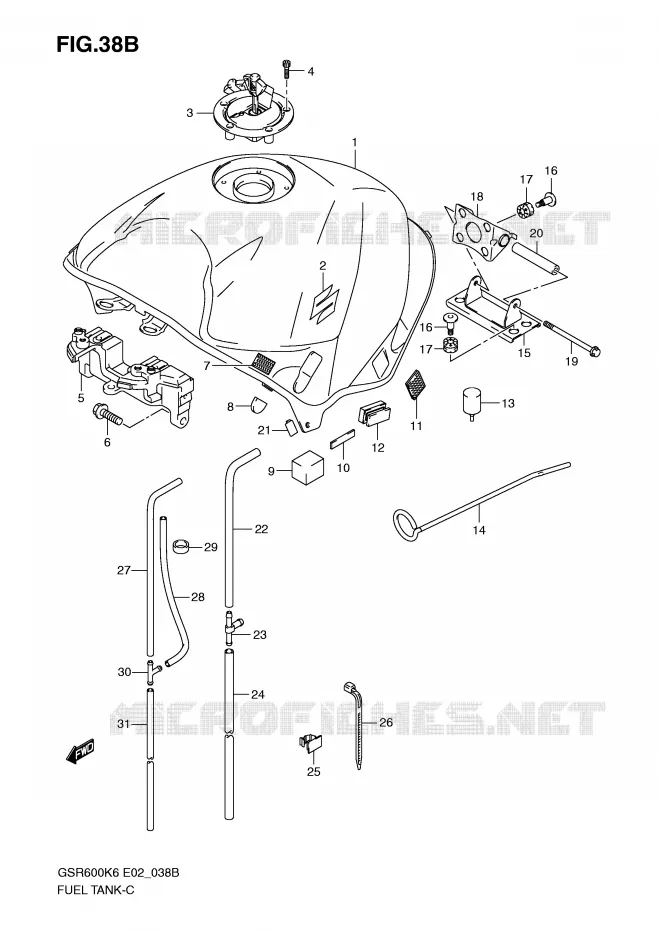

FUEL TANK (MODEL K7) REFER TO FIG.38B(F-14) FOR MODEL K8

FUEL TANK (MODEL K8) FOR SUZUKI GSR 600 2010

FUEL TANK (MODEL K9) COLOR : GUL=YSF(BLUE),YMD(SILVER)

Item numbers
FUEL TANK (MODEL K8) Suzuki MOTO 600 GSR 2010 GSR600UAL0(E2)
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
1
TANK ASSY, FUEL (BLACK)

44100-44G00-YAY   4410044G00YAY

4410044G00YAY
Not available
1
TANK ASSY, FUEL (BLUE)

44100-44G00-YBA   4410044G00YBA

4410044G00YBA
Not available
1
TANK ASSY, FUEL (GRAY)

44100-44G00-YLF   4410044G00YLF

4410044G00YLF
Not available
1
TANK ASSY, FUEL (SILVER)

44100-44G00-YMD   4410044G00YMD

4410044G00YMD
Not available
1
TANK ASSY, FUEL (ORANGE)

44100-44G00-YME   4410044G00YME

4410044G00YME
Not available
1
TANK ASSY, FUEL (BLACK)

44100-44G10-YAY   4410044G10YAY

4410044G10YAY
Not available
1
TANK ASSY, FUEL (BLUE)

44100-44G10-YBA   4410044G10YBA

4410044G10YBA
Not available
1
TANK ASSY, FUEL (GRAY)

44100-44G10-YLF   4410044G10YLF

4410044G10YLF
Not available
1
TANK ASSY, FUEL (SILVER)

44100-44G10-YMD   4410044G10YMD

4410044G10YMD
Not available
1
TANK ASSY, FUEL (ORANGE)

44100-44G10-YME   4410044G10YME

4410044G10YME
Not available
2
EMBLEM, S
EMBLEM

68111-18G20-000   6811118G20000

6811118G20000

Unit Price

3
CAP SET, FUEL TANK FILLER

44200-16850-000  

44200-16852-000
 4420016850000

Unit Price

4
BOLT, L:20<br />BOLT
BOLT, L:20
BOLT

09106-05017-000   0910605017000

0910605017000

Unit Price

5
BRACKET, FRONT

44521-44G00-000   4452144G00000

4452144G00000
Not available
6
BOLT
BOLT

01550-0825B-000   015500825B000

015500825B000

Unit Price

7
FASTENER(25X33X2.6)
FASTENER

44572-02F01-000   4457202F01000

4457202F01000

Unit Price

8
CUSHION
CUSHION, COVER

09329-18001-000   0932918001000

0932918001000

Unit Price

9
CUSHION, SIDE

44541-44G00-000   4454144G00000

4454144G00000
Not available
10
MOLDING

68241-04X50-300   6824104X50300

6824104X50300

Unit Price

11
FASTENER(25X33X2.6)
FASTENER

44572-02F01-000   4457202F01000

4457202F01000

Unit Price

12
CUSHION, FUEL TANK SIDE

44541-35F00-000  

44541-35F01-000
 4454135F00000

Unit Price

13
CUSHION, FUEL TANK RR

44542-18G00-000  

44542-18G01-000
 4454218G00000

Unit Price

14
STAY, FUEL TANK
STAY

44574-16G00-000   4457416G00000

4457416G00000

Unit Price

15
BRACKET, REAR LOWER

44550-44G00-000   4455044G00000

4455044G00000
Not available
16
09139-06191
SCREW

44543-47H00-000  

4454347H00000
Not available
17
CUSHION, FUEL TANK BR
CUSHION

09320-08071-000   0932008071000

0932008071000

Unit Price

18
BRACKET, FUEL TANK

44530-41G00-000  

44530-41G01-000
 4453041G00000

Unit Price

19
BOLT
BOLT, JOINT

01550-0695B-000   015500695B000

015500695B000

Unit Price

20
SPACER, FUEL TANK RR
SPACER

44561-18G00-000   4456118G00000

4456118G00000

Unit Price

21
MOLDING, BRACE
MULDING, LH

51861-21D00-000   5186121D00000

5186121D00000

Unit Price

22
HOSE, WATER DRAIN UPPER

44423-44G20-000   4442344G20000

4442344G20000
Not available
23
UNION 3WAY<br />3 WAY
UNION 3WAY
3 WAY

09367-08004-000   0936708004000

0936708004000

Unit Price

24
HOSE, WATER DRAIN LOWER

44423-44G30-000   4442344G30000

4442344G30000
Not available
25
CLAMP

09403-14311-000   0940314311000

0940314311000

Unit Price

26
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

27
HOSE, BREATHER NO.1

44424-44G10-000   4442444G10000

4442444G10000
Not available
27
HOSE, BREATHER NO.1

44424-44GA0-000   4442444GA0000

4442444GA0000
Not available
28
44425-09E00
HOSE, BREATHER NO.3

44424-38G00-000  

4442438G00000
Not available
29
HOSE(12X16X600)
HOSE(12X16X600)

09352-12163-600  

09352-12164-600
 0935212163600

Unit Price

30
HOSE,3-WAY<br />3 WAY
HOSE, 3-WAY
3 WAY

09367-06002-000   0936706002000

0936706002000

Unit Price

31
HOSE, BREATHER NO.2

44424-44G20-000   4442444G20000

4442444G20000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL K8) of your Suzuki of GSR. Let us know if you have any questions.
