REAR FENDER (MODEL S) REFER TO FIG.39B(1-J-10) FOR MODEL T

REAR FENDER (MODEL T) FOR SUZUKI GSX-F 600 1988

FAIRING (MODEL J) REFER TO FIG.40A(1-K- 6) FOR MODEL K 24V,28V

Item numbers

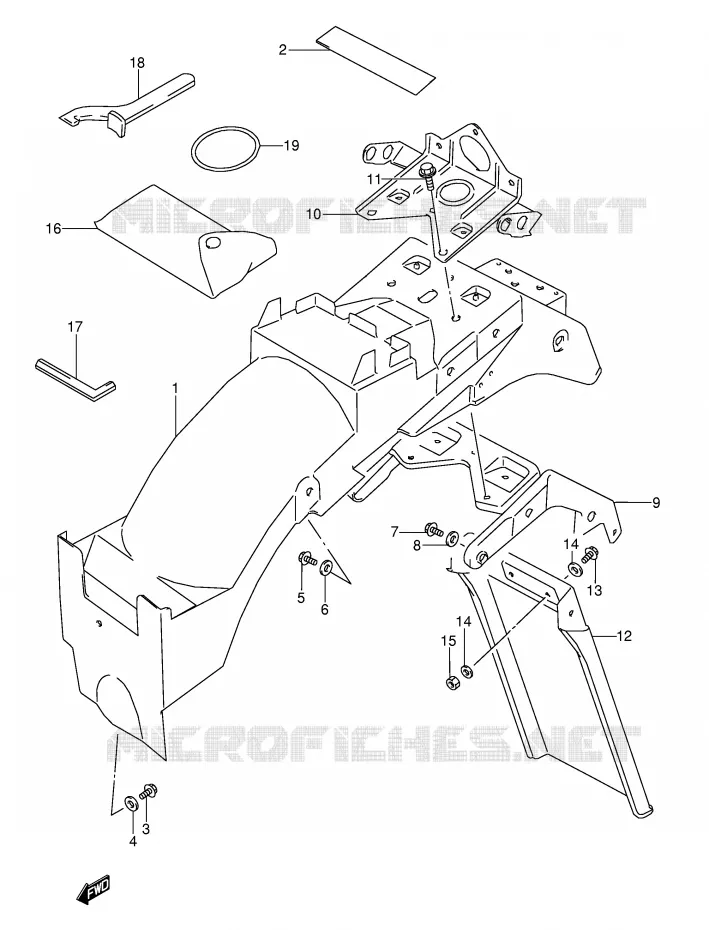

REAR FENDER (MODEL T) Suzuki MOTO 600 GSX-F 1988 GSX600FU2J(E2)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
1
BODY, REAR FENDER

63111-19C00-000   6311119C00000

6311119C00000
Not available
1
BODY, REAR FENDER

63111-19C20-000   6311119C20000

6311119C20000
Not available
2
DISCONTINUE
CUSHION, FENDER

63191-19C00-000   6319119C00000

6319119C00000
Not available
3
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

4
LOCK WASHER

09169-06037-000  

09169-06011-000
 0916906037000

Unit Price

5
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

6
LOCK WASHER

09169-06037-000  

09169-06011-000
 0916906037000

Unit Price

7
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

8
WASHER
WASHER

09169-06042-000   0916906042000

0916906042000
Not available
9
DISCONTINUE
REINFORCEMENT, REAR FENDER

63120-19C00-000   6312019C00000

6312019C00000
Not available
10
DISCONTINUE
BRACKET, LAP

63460-19C01-000   6346019C01000

6346019C01000
Not available
11
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

12
EXTENSION, REAR FENDER

63311-19C00-000   6331119C00000

6331119C00000
Not available
13
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

14
CLUTCH REL WASHER<br />WASHER
CLUTCH REL WASHER
WASHER

09160-06019-000   0916006019000

0916006019000

Unit Price

15
NUT

08319-21066-000  

08319-21068-000
 0831921066000

Unit Price

16
TOOL ASSY

09800-21036-000  

0980021036000
Not available
17
HEXAGON SPANNER, 3

09816-00102-000   0981600102000

0981600102000
Not available
18
CLAMP, WRENCH
CLAMP, WRENCH

09822-00005-000   0982200005000

0982200005000

Unit Price

19
O RING
BAND

09280-61002-000  

0928061002000
Not available
20
MANUAL, OWNER'S

99011-20C57-17W   9901120C5717W

9901120C5717W
Not available
20
MANUAL, OWNER'S

99011-20C57-DGS   9901120C57DGS

9901120C57DGS
Not available
