Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI GSX-F 600 1993

OIL PAN

Item numbers

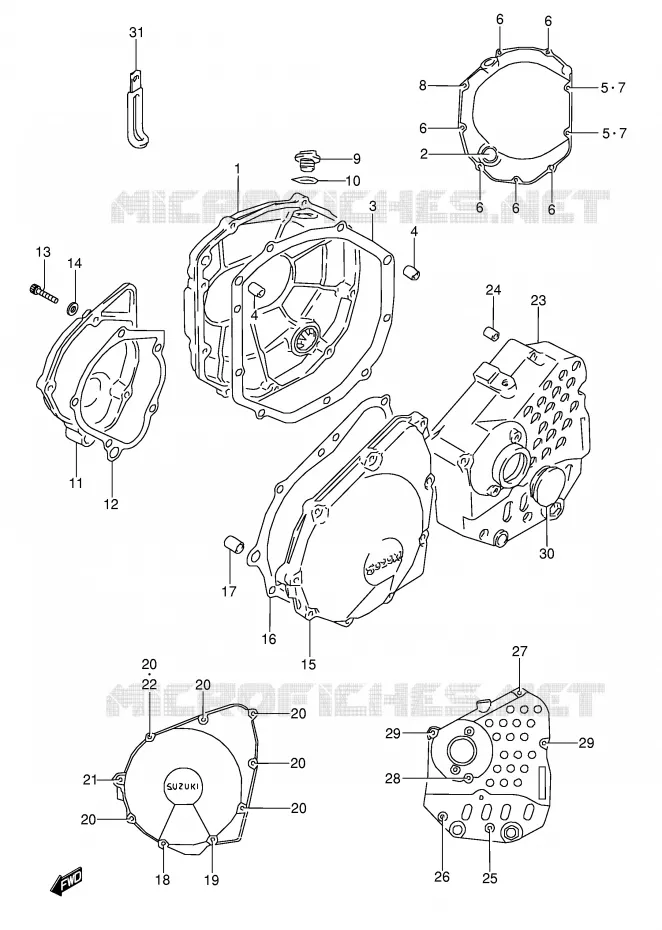

CRANKCASE COVER Suzuki MOTO 600 GSX-F 1993 GSX600FP(E2)
1
1
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
8
8
9
9
10
11
11
12
12
13
13
14
15
15
16
16
17
17
18
18
19
19
20
20
20
20
20
20
20
20
20
20
20
20
21
21
22
23
23
24
25
25
26
26
27
27
28
28
29
29
29
29
30
31
1
DISCONTINUE
COVER, CLUTCH (BLACK)

11340-20C00-000   1134020C00000

1134020C00000
Not available
2
LENS,OIL LEVEL CHECK<br />LENS, OIL LEVEL
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET, CL COVER

11482-27A10-000  

11482-27A20-000
 1148227A10000

Unit Price

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

5
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price

6
BOLT

07110-06255-000  

07130-0625B-000
 0711006255000

Unit Price

7
BOLT

07110-06305-000  

07130-0630B-000
 0711006305000

Unit Price

8
BOLT

07110-06355-000  

07130-0635B-000
 0711006355000

Unit Price

9
PLUG

09259-20012-000  

09259-20008-XC0
 0925920012000

Unit Price

10
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

11
DISCONTINUE

11381-27A02-000  

1138127A02000
Not available
11
DISCONTINUE

11381-48B01-000  

1138148B01000
Not available
12
GASKET, SIGNAL GEN COVER

11491-27A10-000  

11491-27A30-000
 1149127A10000

Unit Price

13
BOLT<br />BOLT (6X23)
BOLT
BOLT (6X23)

09106-06082-000   0910606082000

0910606082000

Unit Price

13
DISCONTINUE

09106-06059-000  

0910606059000
Not available
14
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price

15
DISCONTINUE
COVER, STARTER GEAR (GRAY)

11351-17C00-000   1135117C00000

1135117C00000
Not available
15
DISCONTINUE
COVER, STARTER GEAR (BLACK)

11351-20C00-000   1135120C00000

1135120C00000
Not available
16
GASKET, STARTER GEAR COVER

11483-27A10-000  

11483-27A20-000
 1148327A10000

Unit Price

17
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

18
BOLT

07110-06165-000  

07130-0616B-000
 0711006165000

Unit Price

19
BOLT

07110-06205-000  

07130-0620B-000
 0711006205000

Unit Price

20
BOLT

07110-06255-000  

07130-0625B-000
 0711006255000

Unit Price

21
BOLT

07110-06405-000  

07130-06403-000
 0711006405000

Unit Price

22
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price

23
DISCONTINUE

11361-19C03-000  

1136119C03000
Not available
23
DISCONTINUE

11361-20C01-000  

1136120C01000
Not available
24
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

25
BOLT

07110-06405-000  

07130-06403-000
 0711006405000

Unit Price

26
BOLT

07110-06305-000  

07130-0630B-000
 0711006305000

Unit Price

27
BOLT

07110-06505-000  

07130-0650B-000
 0711006505000

Unit Price

28
BOLT

07110-06655-000  

07130-0665B-000
 0711006655000

Unit Price

29
BOLT

07110-06705-000  

07130-0670B-000
 0711006705000

Unit Price

30
RELEASE SCREW CAP<br />CAP, CLUTCH RELEASE
RELEASE SCREW CAP
CAP, CLUTCH RELEASE

09250-30003-000   0925030003000

0925030003000

Unit Price

31
CLAMP(L:80)

09404-06426-000  

09404-06433-000
 0940406426000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
