Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARBURETOR (MODEL J) REFER TO FIG.12A(C-10) FOR MODEL K

CARBURETOR (MODEL K) FOR SUZUKI GSX-F 600 1996

CARBURETOR (MODEL L / M / N / P / R / S / T)

Item numbers

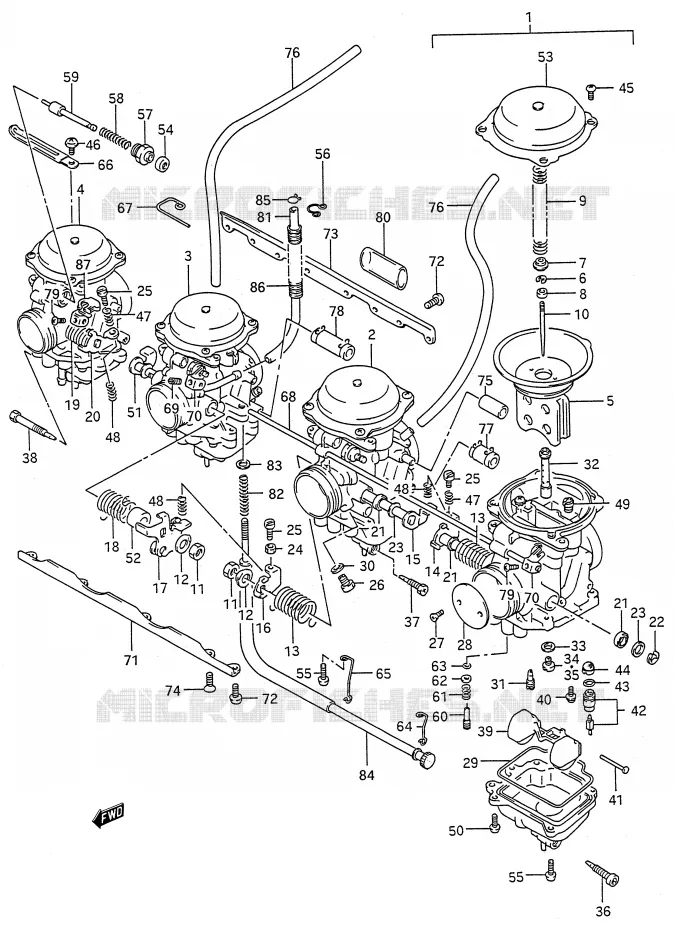

CARBURETOR (MODEL K) Suzuki MOTO 600 GSX-F 1996 GSX600FT(E28)
1
2
3
4
5
6
7
9
10
11
12
12
12
13
13
14
15
16
17
18
19
20
21
21
21
22
23
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
48
48
49
50
51
52
53
54
55
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
70
71
72
72
73
74
75
76
76
77
78
79
79
80
81
82
83
84
85
86
87
1
CARBURETOR ASSY, LH

13201-43C00-000   1320143C00000

1320143C00000
Not available
2
CARBURETOR ASSY, ML

13202-43C00-000   1320243C00000

1320243C00000
Not available
3
CARBURETOR ASSY, MR

13203-43C00-000   1320343C00000

1320343C00000
Not available
4
CARBURETOR ASSY, RH

13204-43C00-000   1320443C00000

1320443C00000
Not available
5
DISCONTINUE
DIAPHRAGM ASSY

13500-19C00-000   1350019C00000

1350019C00000
Not available
6
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

7
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

8
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

9
DISCONTINUE
SPRING

13417-26B00-000   1341726B00000

1341726B00000
Not available
10
DISCONTINUE
NEEDLE, JET (4CZ3-3)

13383-19C10-000   1338319C10000

1338319C10000
Not available
11
NUT

08310-22086-000  

08310-00083-000
 0831022086000

Unit Price

12
WASHER

13606-47070-000   1360647070000

1360647070000
Not available
13
SPRING

13573-28A10-000   1357328A10000

1357328A10000
Not available
14
SHAFT ASSY

13550-28A30-000   1355028A30000

1355028A30000
Not available
15
SHAFT ASSY

13550-28A00-000   1355028A00000

1355028A00000
Not available
16
LEVER

13553-28A00-000   1355328A00000

1355328A00000
Not available
17
LEVER

13555-28A00-000   1355528A00000

1355528A00000
Not available
18
SPRING

13573-28A00-000   1357328A00000

1357328A00000
Not available
19
SPRING

13573-28A20-000   1357328A20000

1357328A20000
Not available
20
SHAFT ASSY

13550-28A20-000   1355028A20000

1355028A20000
Not available
21
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

22
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

23
GASKET,THROTTLE SHAFT<br />WASHER
GASKET, THROTTLE SHAFT
WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

24
NUT

13582-95216-000   1358295216000

1358295216000
Not available
25
SCREW

13267-52012-000   1326752012000

1326752012000
Not available
26
SCREW

13605-73000-000   1360573000000

1360573000000

Unit Price

27
SCREW

13604-42A00-000  

13604-44080-000
 1360442A00000

Unit Price

28
.VALVE, THROTTLE

13551-42A30-000   1355142A30000

1355142A30000
Not available
29
O RING, FLOAT CHAMBER
O RING

13251-42A00-000   1325142A00000

1325142A00000

Unit Price

30
WASHER

13249-78100-000   1324978100000

1324978100000
Not available
31
JET,PILOT<br />JET, PILOT (40)
JET, PILOT
JET, PILOT (40)

09492-40014-000   0949240014000

0949240014000

Unit Price

32
JET, NEEDLE (P-9)

09494-00623-000   0949400623000

0949400623000
Not available
33
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

34
JET, MAIN (137.5)

09491-27010-000   0949127010000

0949127010000

Unit Price

35
JET, MAIN
JET, MAIN (135)

09491-27009-000   0949127009000

0949127009000

Unit Price

36
DISCONTINUE
SCREW, DRAIN

13247-24500-000   1324724500000

1324724500000
Not available
37
PLUG, DRAIN

13247-38B00-000  

13247-02340-000
 1324738B00000

Unit Price

38
SCREW, DRAIN

13247-19C00-000   1324719C00000

1324719C00000
Not available
39
FLOAT
FLOAT

13250-28A00-000   1325028A00000

1325028A00000

Unit Price

40
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

41
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

42
VALVE ASSY, NEEDLE

13370-44500-000   1337044500000

1337044500000

Unit Price

43
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

44
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

45
SCREW

02112-04085-000  

02112-0408B-000
 0211204085000

Unit Price

46
SCREW

13602-38A20-000  

02142-04083-000
 1360238A20000

Unit Price

47
DISCONTINUE
SPRING

13271-28A00-000   1327128A00000

1327128A00000
Not available
48
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

49
JET,GALLERY BAL****<br />JET, PILOT AIR (160)
JET, GALLERY BAL****
JET, PILOT AIR (160)

09493-32002-000   0949332002000

0949332002000

Unit Price

50
SCREW

13602-27A10-000  

02112-0412A-000
 1360227A10000

Unit Price

51
SHAFT ASSY

13550-28A10-000   1355028A10000

1355028A10000
Not available
52
DISCONTINUE<br />RING
DISCONTINUE
RING

13574-28A00-000   1357428A00000

1357428A00000
Not available
53
DISCONTINUE

13502-28A00-000  

1350228A00000
Not available
54
CAP,STARTER VALVE<br />CAP, STARTER
CAP, STARTER VALVE
CAP, STARTER

13682-31210-000   1368231210000

1368231210000

Unit Price

55
SCREW

13602-19C00-000   1360219C00000

1360219C00000
Not available
56
CLIP

13692-02500-000   1369202500000

1369202500000

Unit Price

57
GUIDE SCREW,PLUNGER<br />HOLDER
GUIDE SCREW, PLUNGER
HOLDER

13418-44080-000   1341844080000

1341844080000

Unit Price

58
SPRING
SPRING

13417-43010-000   1341743010000

1341743010000

Unit Price

59
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

60
SCREW,PILOT<br />SCREW, AIR (1 1/4)
SCREW, PILOT
SCREW, AIR (1 1/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

61
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

62
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

63
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

64
DISCONTINUE
CLIP

13692-19C00-000   1369219C00000

1369219C00000
Not available
65
CLIP

13692-43C00-000   1369243C00000

1369243C00000
Not available
66
CLAMP(L:80)

13671-05A20-000  

09404-06433-000
 1367105A20000

Unit Price

67
CLIP

13671-48B00-000   1367148B00000

1367148B00000
Not available
68
SHAFT, STARTER

13586-48B00-000   1358648B00000

1358648B00000
Not available
69
DISCONTINUE

13605-49330-000  

1360549330000
Not available
70
DISCONTINUE

13422-28A00-000  

1342228A00000
Not available
71
PLATE

13628-19C00-000   1362819C00000

1362819C00000
Not available
72
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

73
DISCONTINUE
PLATE

13628-19C10-000   1362819C10000

1362819C10000
Not available
74
DISCONTINUE
SCREW

09126-05005-000   0912605005000

0912605005000
Not available
75
09354-65113-600
HOSE (6.5X10.5X400)

13683-49160-000  

1368349160000
Not available
76
HOSE

13684-22A00-000  

09352-50823-600
 1368422A00000

Unit Price

77
13218-03D00
HOSE ASSY

13680-27A00-000  

1368027A00000
Not available
78
DISCONTINUE<br />HOSE ASSY
DISCONTINUE
HOSE ASSY

13680-28A00-000  

1368028A00000
Not available
79
DISCONTINUE

13605-34390-000  

1360534390000
Not available
80
DISCONTINUE<br />HOSE (16X19X100)
DISCONTINUE
HOSE (16X19X100)

13684-43440-000   1368443440000

1368443440000
Not available
81
HOSE(5X9X600)

13683-05A30-000  

09352-50903-600
 1368305A30000

Unit Price

82
SPRING

13271-28A10-000   1327128A10000

1327128A10000
Not available
83
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

84
ADJUSTER

13267-43C00-000   1326743C00000

1326743C00000
Not available
85
CLIP

13671-05A30-000  

1367105A30000
Not available
86
DISCONTINUE
HOSE (10X14X225)

13684-19C00-000   1368419C00000

1368419C00000
Not available
87
LEVER

13422-48B00-000   1342248B00000

1342248B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
