GEAR SHIFTING ASSY

ALTERNATOR FOR SUZUKI GSX-F 600 1996

GENERATOR SENSOR (MODEL J / K / L / M / N / P / R / S) REFER TO FIG.21A(1-E-15) FOR MODEL T

Item numbers

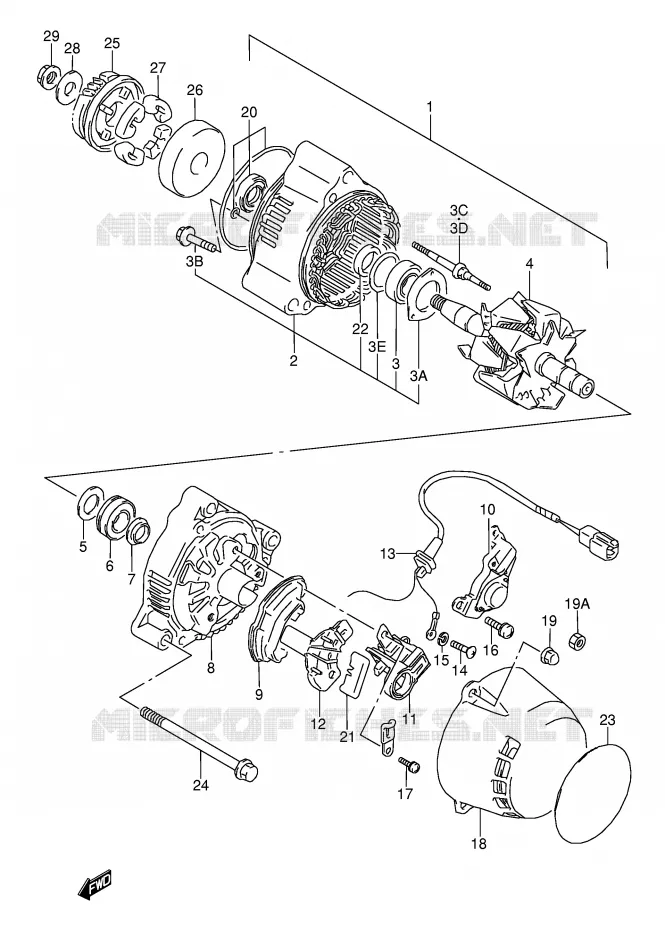

ALTERNATOR Suzuki MOTO 600 GSX-F 1996 GSX600FUT(E2)
1
1
1
2
3A
3B
3D
3C
3
3E
4
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19A
19
20
20
21
21
22
23
24
24
25
26
27
28
29
29
1
DISCONTINUE

31400-17C03-000  

3140017C03000
Not available
2
FRAME, DRIVE END

31580-48B00-000   3158048B00000

3158048B00000
Not available
3
BEARING
BEARING

31612-06B00-000   3161206B00000

3161206B00000

Unit Price

3A
DISCONTINUE<br />RETAINER
DISCONTINUE
RETAINER

31585-48B00-000   3158548B00000

3158548B00000
Not available
3B
DISCONTINUE<br />SCREW, BEARING RETAINER
DISCONTINUE
SCREW, BEARING RETAINER

31586-48B00-000   3158648B00000

3158648B00000
Not available
3C
STUD BOLT
STUD BOLT

31587-85250-000   3158785250000

3158785250000
Not available
3D
31587-85250
..STUD BOLT

31587-19C00-000  

3158719C00000
Not available
3E
DISCONTINUE<br />COVER, BEARING
DISCONTINUE
COVER, BEARING

31613-48B00-000   3161348B00000

3161348B00000
Not available
4
DISCONTINUE

31710-48B03-000  

3171048B03000
Not available
5
COVER,BEARING<br />COVER (1)
COVER, BEARING
COVER (1)

31613-82610-000   3161382610000

3161382610000

Unit Price

6
BEARING
BEARING

31612-48B00-000   3161248B00000

3161248B00000

Unit Price

7
COVER (2)
COVER (2)

31613-27A10-000   3161327A10000

3161327A10000

Unit Price

8
FRAME, END

31611-48B00-000   3161148B00000

3161148B00000
Not available
9
DISCONTINUE<br />HOLDER, RECTIFIER
DISCONTINUE
HOLDER, RECTIFIER

31621-27A00-000   3162127A00000

3162127A00000
Not available
10
DISCONTINUE<br />REGULATOR
DISCONTINUE
REGULATOR

32500-27A00-000   3250027A00000

3250027A00000
Not available
11
DISCONTINUE<br />HOLDER, BRUSH
DISCONTINUE
HOLDER, BRUSH

31656-48B00-000   3165648B00000

3165648B00000
Not available
12
COVER, RECTIFIER

31687-27A00-000  

31687-17E00-000
 3168727A00000

Unit Price

13
DISCONTINUE<br />LEAD WIRE
DISCONTINUE
LEAD WIRE

31480-48B00-000   3148048B00000

3148048B00000
Not available
14
SCREW

02112-04063-000  

02112-0406B-000
 0211204063000

Unit Price

14
SCREW

02112-04086-000  

02112-04083-000
 0211204086000

Unit Price

14
.SCREW

31516-85250-000   3151685250000

3151685250000
Not available
15
WASHER, LOCK

08321-21046-000  

08321-0104A-000
 0832121046000

Unit Price

16
DISCONTINUE<br />SCREW (5X17)
DISCONTINUE
SCREW (5X17)

31688-27A00-000   3168827A00000

3168827A00000
Not available
17
DISCONTINUE

31688-06B00-000  

3168806B00000
Not available
18
COVER

31614-48B00-000   3161448B00000

3161448B00000
Not available
19
NUT

31692-48B00-000  

08313-20053-000
 3169248B00000

Unit Price

19A
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

20
SERVICE KIT(A)<br />OIL SEAL SET
SERVICE KIT(A)
OIL SEAL SET

31780-27X50-000   3178027X50000

3178027X50000

Unit Price

21
COVER, RECTIFIER

31514-27A00-000  

31687-17E00-000
 3151427A00000

Unit Price

22
DISCONTINUE<br />SPACER
DISCONTINUE
SPACER

31776-06B00-000   3177606B00000

3177606B00000
Not available
23
.PROTECTOR, ALTERNATOR

31615-17C00-000   3161517C00000

3161517C00000
Not available
24
BOLT

01517-08908-000  

01550-08907-000
 0151708908000

Unit Price

24
BOLT

01550-08903-000  

01550-0890B-000
 0155008903000

Unit Price

25
DISCONTINUE

22730-19C01-000  

2273019C01000
Not available
26
DISCONTINUE

22733-27A04-000  

2273327A04000
Not available
27
DAMPER,GENERATOR DRIVEN<br />DAMPER
DAMPER, GENERATOR DRIVEN
DAMPER

21231-06B00-000   2123106B00000

2123106B00000

Unit Price

28
WASHER
WASHER

08211-10283-000   0821110283000

0821110283000
Not available
29
NUT

08316-20103-000  

08316-2010B-000
 0831620103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
