CARBURETOR

CARBURETOR FITTINGS FOR SUZUKI GSX-F 600 1998

AIR FILTER

Item numbers

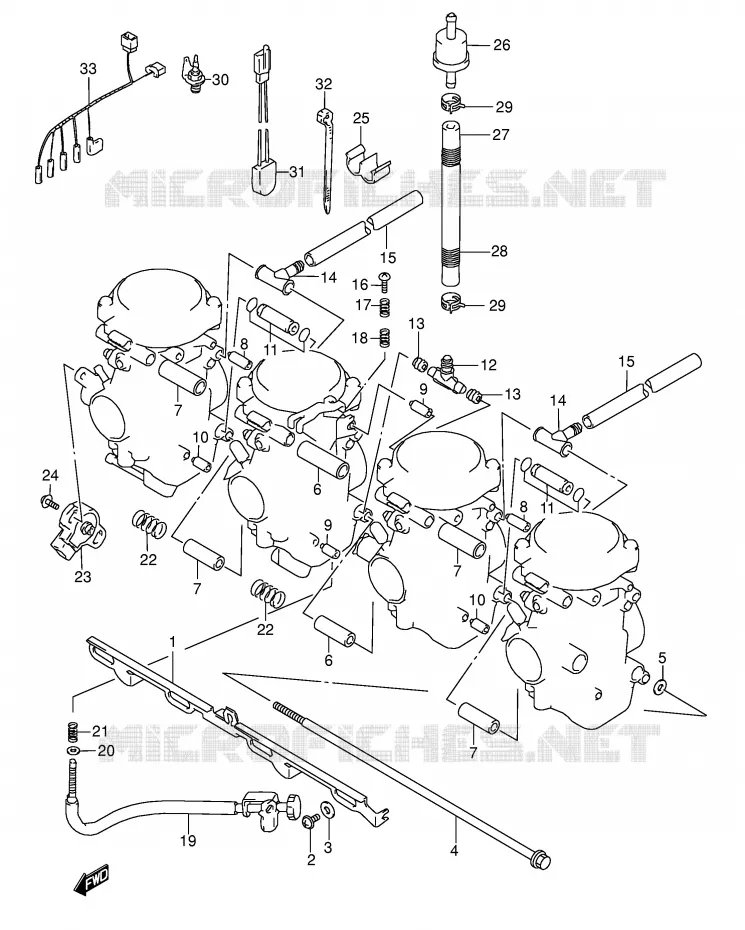

CARBURETOR FITTINGS Suzuki MOTO 600 GSX-F 1998 GSX600FW(E2)
1
1
2
3
4
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
13
13
14
14
15
15
16
17
18
18
19
20
21
22
22
23
24
24
25
26
27
27
28
29
29
30
31
32
33
1
DISCONTINUE
LEVER

13413-19E00-000   1341319E00000

1341319E00000
Not available
2
SCREW

02142-04083-000  

02142-0408B-000
 0214204083000

Unit Price

3
PACKING
PACKING

13557-33E00-000   1355733E00000

1355733E00000

Unit Price

4
BOLT
BOLT

13612-33E00-000   1361233E00000

1361233E00000

Unit Price

5
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

6
PIPE

13685-19E20-000   1368519E20000

1368519E20000

Unit Price

7
PIPE

13685-34E00-000   1368534E00000

1368534E00000

Unit Price

8
ROD

13685-19E00-000   1368519E00000

1368519E00000

Unit Price

9
ROD

13685-19E10-000   1368519E10000

1368519E10000

Unit Price

10
ROD

13685-19E30-000   1368519E30000

1368519E30000

Unit Price

11
NIPPLE,CARBURETOR<br />PIPE ASSY
NIPPLE, CARBURETOR
PIPE ASSY

13685-31310-000   1368531310000

1368531310000

Unit Price

12
NIPPLE

13685-16E00-000   1368516E00000

1368516E00000

Unit Price

13
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

14
HOSE

13683-01DB0-000   1368301DB0000

1368301DB0000

Unit Price

15
HOSE(7X10.2X475)
HOSE(7X10.2X475)

13684-40C00-000  

13684-40C01-000
 1368440C00000

Unit Price

16
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

17
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

18
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

19
DISCONTINUE
ADJUST SCREW ASSY

13267-19E00-000   1326719E00000

1326719E00000
Not available
20
WASHER, STARTER SHAFT
WASHER

13615-43010-000   1361543010000

1361543010000

Unit Price

21
SPRING

13271-19E00-000   1327119E00000

1327119E00000

Unit Price

22
SPRING

13573-06C10-000   1357306C10000

1357306C10000

Unit Price

23
SENSOR ASSY,THROTTLE
SENSOR ASSY, THROTTLE

13550-13D60-000  

13550-13D61-000
 1355013D60000

Unit Price

24
SCREW, SENSOR
SCREW, SENSOR

13605-20C00-000   1360520C00000

1360520C00000

Unit Price

24
SCREW, SENSOR

13602-55A00-000   1360255A00000

1360255A00000
Not available
25
CLIP
CLAMP, AIR VENT HOSE

09408-00100-000   0940800100000

0940800100000

Unit Price

26
STRAINER, FUEL

15410-19E00-000  

15410-19E10-000
 1541019E00000

Unit Price

27
HOSE

13683-48B00-000  

09352-50901-600
 1368348B00000

Unit Price

27
DISCONTINUE
HOSE, FUEL

09355-50105-600  

0935550105600
Not available
28
SPRING
PROTECTOR

09440-14030-000   0944014030000

0944014030000

Unit Price

29
CLAMP,WATER HOSE
CLAMP, WATER HOSE

09401-11407-000  

09401-11415-000
 0940111407000

Unit Price

30
HEATER ASSY,CARBURETOR(15W)<br />HEATER ASSY, CARBURETOR
HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARBURETOR

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

31
THERMO SWITCH, CARB HEATER
THERMO SWITCH

13655-16F00-000   1365516F00000

1365516F00000

Unit Price

32
CLIP
CLAMP

09408-00100-000   0940800100000

0940800100000

Unit Price

33
WIRE, CARB HEATER LEAD
WIRE, CARB HEATER

36856-21E00-000   3685621E00000

3685621E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
