CARBURETOR FOR SUZUKI GSX-F 600 2000

CARBURETOR FITTINGS

Item numbers

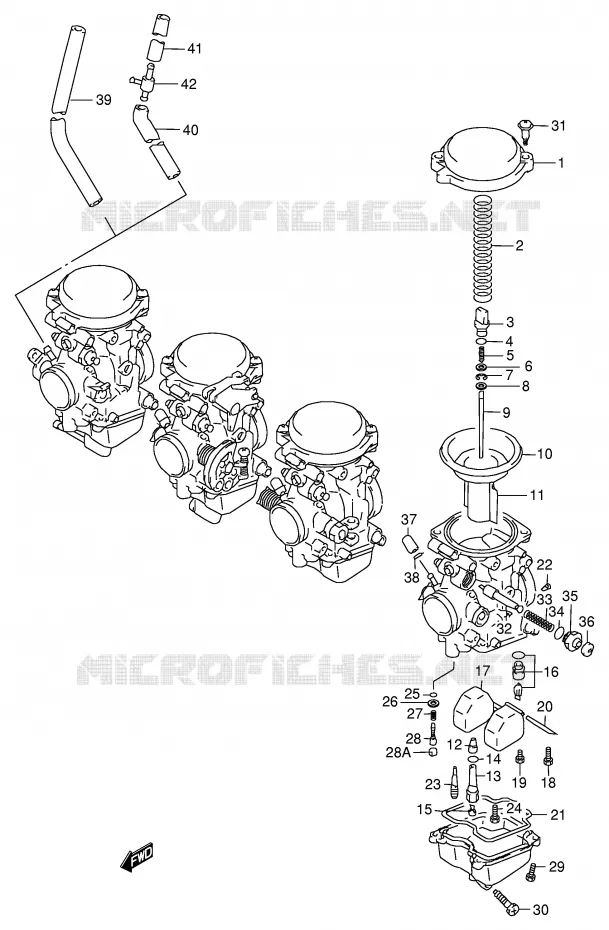

CARBURETOR Suzuki MOTO 600 GSX-F 2000 GSX600FUY(E2)
1
1
2
3
4
5
6
7
8
8
9
9
10
11
11
11
11
11
11
12
12
13
14
15
15
16
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
28
28
28A
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
COVER, DIAPHRAGM
DIAPHRAGM COVER

13502-19E00-000   1350219E00000

1350219E00000

Unit Price

1
DIAPHRAGM COVER

13502-19E50-000   1350219E50000

1350219E50000
Not available
2
SPRING

13573-19E00-000   1357319E00000

1357319E00000

Unit Price

3
HOLDER
HOLDER

13418-33E00-000   1341833E00000

1341833E00000

Unit Price

4
O RING
O RING

09280-05004-000   0928005004000

0928005004000

Unit Price

5
SPRING

13481-04F00-000   1348104F00000

1348104F00000

Unit Price

6
WASHER

13382-19E00-000   1338219E00000

1338219E00000

Unit Price

7
E RING, MULTIPLE JET NOZZLE
E RING, MULTIPLE JET NOZZLE

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

8
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

8
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

9
NEEDLE, JET (5DH29-54-3)

13383-19E00-000   1338319E00000

1338319E00000
Not available
9
NEEDLE, JET (5DH53-3)

13383-19E60-000   1338319E60000

1338319E60000
Not available
10
DIAPHRAGM

13507-19E00-000  

13507-19E01-000
 1350719E00000

Unit Price

11
VALVE, PISTON

13501-04F00-000   1350104F00000

1350104F00000
Not available
11
VALVE, PISTON

13501-19E10-000   1350119E10000

1350119E10000
Not available
11
VALVE, PISTON

13501-19E20-000   1350119E20000

1350119E20000
11
VALVE, PISTON

13501-19E30-000  

1350119E30000
Not available
12
JET, NEEDLE (P-0M)

13341-19E60-000   1334119E60000

1334119E60000

Unit Price

12
JET, NEEDLE (P-0)

09494-00910-000   0949400910000

0949400910000
Not available
13
HOLDER, JET

13385-19E00-000   1338519E00000

1338519E00000

Unit Price

14
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

15
JET,MAIN<br />JET, MAIN (112.5)
JET, MAIN
JET, MAIN (112.5)

09491-22014-000   0949122014000

0949122014000

Unit Price

15
JET, MAIN (115)

09491-23012-000   0949123012000

0949123012000

Unit Price

16
VALVE ASSY, NEEDLE(ID:2.3)

13370-07F00-000  

13370-07F01-000
 1337007F00000

Unit Price

17
FLOAT ASSY

13250-04F00-000   1325004F00000

1325004F00000

Unit Price

18
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

19
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

20
PIN, FLOAT
PIN, FLOAT

13254-01010-000   1325401010000

1325401010000

Unit Price

21
GASKET

13258-04F00-000   1325804F00000

1325804F00000

Unit Price

22
JET, POWER(145)
JET, PILOT AIR (145)

09492-29002-000   0949229002000

0949229002000

Unit Price

22
JET, AIR(160)
JET, PILOT AIR (160)

09493-32007-000   0949332007000

0949332007000

Unit Price

22
JET, PILOT AIR (140)

09493-28013-000   0949328013000

0949328013000
Not available
23
JET, PILOT #12.5
JET, PILOT (12.5)

09492-12008-000   0949212008000

0949212008000

Unit Price

24
JET, STARTER
JET, STARTER (50)

09491-50006-000   0949150006000

0949150006000

Unit Price

25
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

26
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

27
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

28
ADJUSTER<br />ADJUSTER (2,1/4)
ADJUSTER
ADJUSTER (2, 1/4)

13279-33E00-000   1327933E00000

1327933E00000

Unit Price

28A
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

29
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

30
PLUG,DRAIN<br />SCREW, DRAIN
PLUG, DRAIN
SCREW, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

31
SCREW
SCREW

13247-33E00-000   1324733E00000

1324733E00000

Unit Price

32
PLUNGER
PLUNGER

13411-05300-000   1341105300000

1341105300000

Unit Price

33
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

34
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

35
GUIDE SCREW,PLUNGER<br />HOLDER, GUIDE
GUIDE SCREW, PLUNGER
HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

36
CAP, STARTER VALVE
CAP, STARTER VALVE

13682-31210-000   1368231210000

1368231210000

Unit Price

37
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

38
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

39
HOSE

13684-02F10-000   1368402F10000

1368402F10000
Not available
40
HOSE

13684-02F10-000   1368402F10000

1368402F10000
Not available
41
HOSE

13683-19E30-000   1368319E30000

1368319E30000
Not available
42
NIPPLE
NIPPLE

13685-48B00-000   1368548B00000

1368548B00000

Unit Price

99x
CARBURETOR ASSY, LH

13201-19E01-000   1320119E01000

1320119E01000
Not available
99x
CARBURETOR ASSY, LH

13201-19E11-000   1320119E11000

1320119E11000
Not available
99x
CARBURETOR ASSY, LH

13201-19E21-000   1320119E21000

1320119E21000
Not available
99x
CARBURETOR ASSY, LH

13201-19E50-000   1320119E50000

1320119E50000
Not available
99x
CARBURETOR ASSY, LH

13201-19E60-000   1320119E60000

1320119E60000
Not available
99x
CARBURETOR ASSY, ML

13202-19E01-000   1320219E01000

1320219E01000
Not available
99x
CARBURETOR ASSY, ML

13202-19E11-000   1320219E11000

1320219E11000
Not available
99x
CARBURETOR ASSY, ML

13202-19E21-000   1320219E21000

1320219E21000
Not available
99x
CARBURETOR ASSY, ML

13202-19E50-000   1320219E50000

1320219E50000
Not available
99x
CARBURETOR ASSY, ML

13202-19E60-000   1320219E60000

1320219E60000
Not available
99x
CARBURETOR ASSY, MR

13203-19E01-000   1320319E01000

1320319E01000
Not available
99x
CARBURETOR ASSY, MR

13203-19E11-000   1320319E11000

1320319E11000
Not available
99x
CARBURETOR ASSY, MR

13203-19E21-000   1320319E21000

1320319E21000
Not available
99x
CARBURETOR ASSY, MR

13203-19E50-000   1320319E50000

1320319E50000
Not available
99x
CARBURETOR ASSY, RH

13203-19E60-000   1320319E60000

1320319E60000
Not available
99x
CARBURETOR ASSY, RH

13204-19E01-000   1320419E01000

1320419E01000
Not available
99x
CARBURETOR ASSY, RH

13204-19E11-000   1320419E11000

1320419E11000
Not available
99x
CARBURETOR ASSY, RH

13204-19E21-000   1320419E21000

1320419E21000
Not available
99x
CARBURETOR ASSY, RH

13204-19E50-000   1320419E50000

1320419E50000
Not available
99x
NEEDLE, JET (5DH53-3)

13204-19E60-000   1320419E60000

1320419E60000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 600 GSX-F 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME for Suzuki GSX-F 600 2000

FRAME
for Suzuki GSX-F 600 2000

FOOTREST (MODEL W/X/Y) for Suzuki GSX-F 600 2000

FOOTREST (MODEL W / X / Y)
for Suzuki GSX-F 600 2000

FOOTREST (MODEL K1/K2/K3) for Suzuki GSX-F 600 2000

FOOTREST (MODEL K1 / K2 / K3)
for Suzuki GSX-F 600 2000

FUEL TANK (MODEL W/X) for Suzuki GSX-F 600 2000

FUEL TANK (MODEL W / X)
for Suzuki GSX-F 600 2000

FUEL TANK (MODEL Y/K1) for Suzuki GSX-F 600 2000

FUEL TANK (MODEL Y / K1)
for Suzuki GSX-F 600 2000

FUEL TANK (MODEL K2/K3) for Suzuki GSX-F 600 2000

FUEL TANK (MODEL K2 / K3)
for Suzuki GSX-F 600 2000

FAIRING (MODEL W) for Suzuki GSX-F 600 2000

FAIRING (MODEL W)
for Suzuki GSX-F 600 2000

FAIRING (MODEL X) for Suzuki GSX-F 600 2000

FAIRING (MODEL X)
for Suzuki GSX-F 600 2000

FAIRING (MODEL Y) for Suzuki GSX-F 600 2000

FAIRING (MODEL Y)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K1) for Suzuki GSX-F 600 2000

FAIRING (MODEL K1)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K2) for Suzuki GSX-F 600 2000

FAIRING (MODEL K2)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K3) for Suzuki GSX-F 600 2000

FAIRING (MODEL K3)
for Suzuki GSX-F 600 2000

FRONT FENDER (MODEL W/X/Y/K1/K2) for Suzuki GSX-F 600 2000

FRONT FENDER (MODEL W / X / Y / K1 / K2)
for Suzuki GSX-F 600 2000

FRONT FENDER (MODEL K3) for Suzuki GSX-F 600 2000

FRONT FENDER (MODEL K3)
for Suzuki GSX-F 600 2000

REAR FENDER (MODEL W/X/Y/K1/K2) for Suzuki GSX-F 600 2000

REAR FENDER (MODEL W / X / Y / K1 / K2)
for Suzuki GSX-F 600 2000

REAR FENDER (MODEL K3) for Suzuki GSX-F 600 2000

REAR FENDER (MODEL K3)
for Suzuki GSX-F 600 2000

FAIRING (MODEL W) for Suzuki GSX-F 600 2000

FAIRING (MODEL W)
for Suzuki GSX-F 600 2000

FAIRING (MODEL X) for Suzuki GSX-F 600 2000

FAIRING (MODEL X)
for Suzuki GSX-F 600 2000

FAIRING (MODEL Y) for Suzuki GSX-F 600 2000

FAIRING (MODEL Y)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K1) for Suzuki GSX-F 600 2000

FAIRING (MODEL K1)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K2) for Suzuki GSX-F 600 2000

FAIRING (MODEL K2)
for Suzuki GSX-F 600 2000

FAIRING (MODEL K3) for Suzuki GSX-F 600 2000

FAIRING (MODEL K3)
for Suzuki GSX-F 600 2000

COWLING BODY INSTALLATION PARTS for Suzuki GSX-F 600 2000

COWLING BODY INSTALLATION PARTS
for Suzuki GSX-F 600 2000

UNDER COWLING for Suzuki GSX-F 600 2000

UNDER COWLING
for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL W/X) for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL W / X)
for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL Y) for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL Y)
for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K1) for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K1)
for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K2) for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K2)
for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K3) for Suzuki GSX-F 600 2000

WARNING LABEL (MODEL K3)
for Suzuki GSX-F 600 2000

SEAT (MODEL W/X) for Suzuki GSX-F 600 2000

SEAT (MODEL W / X)
for Suzuki GSX-F 600 2000

SEAT (MODEL Y/K1/K2) for Suzuki GSX-F 600 2000

SEAT (MODEL Y / K1 / K2)
for Suzuki GSX-F 600 2000

SEAT (MODEL K3) for Suzuki GSX-F 600 2000

SEAT (MODEL K3)
for Suzuki GSX-F 600 2000

Suzuki 600 GSX-F 2000

Choose your Suzuki 600 2000 GSX-F model

600 GSX-F 2000 GSX600FUY(E2)

Suzuki GSX-F

Displacement: 600 cc
Year: 2000
Model code GSX600FUY(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
