CRANKCASE COVER

OIL PAN FOR SUZUKI GSX-F 600 2005

OIL PUMP

Item numbers

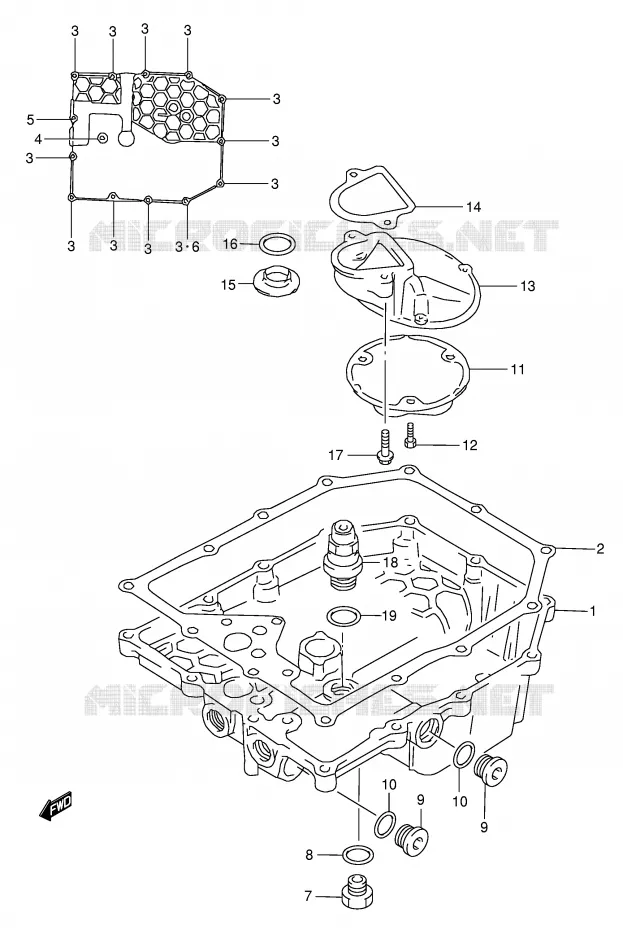

OIL PAN Suzuki MOTO 600 GSX-F 2005 GSX600FK5(E2)
1
2
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
1
PAN, OIL
PAN, OIL

11511-26E01-000   1151126E01000

1151126E01000

Unit Price

2
GASKET, OIL PAN
GASKET, OIL PAN

11489-27A21-000   1148927A21000

1148927A21000

Unit Price

3
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

4
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

5
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

6
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
7
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-14026-000   0924714026000

0924714026000

Unit Price

8
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

9
PLUG,OIL<br />PLUG, OIL GALLERY
PLUG, OIL
PLUG, OIL GALLERY

09248-16012-000   0924816012000

0924816012000

Unit Price

10
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

11
STRAINER, ENGINE OIL
STRAINER, ENGINE OIL

16520-09301-000   1652009301000

1652009301000

Unit Price

12
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

13
PROTECTOR,OIL STRAINER<br />PROTECTOR, STRAINER
PROTECTOR, OIL STRAINER
PROTECTOR, STRAINER

16525-06B00-000   1652506B00000

1652506B00000

Unit Price

14
GASKET,OIL STR PROTECTOR<br />GASKET, PROTECTOR
GASKET, OIL STR PROTECTOR
GASKET, PROTECTOR

16528-27A21-000   1652827A21000

1652827A21000

Unit Price

15
GASKET, OIL OUTLET
GASKET, OIL OUTLET

16529-27A01-000   1652927A01000

1652927A01000

Unit Price

16
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

17
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

18
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF

16440-17C10-000   1644017C10000

1644017C10000

Unit Price

19
GASKET OIL GALLERY<br />WASHER
GASKET OIL GALLERY
WASHER

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
