Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI RF 600 1995

ALTERNATOR (MODEL P / R) REFER TO FIG.25A(E-11) FOR MODEL S/T/V

Item numbers

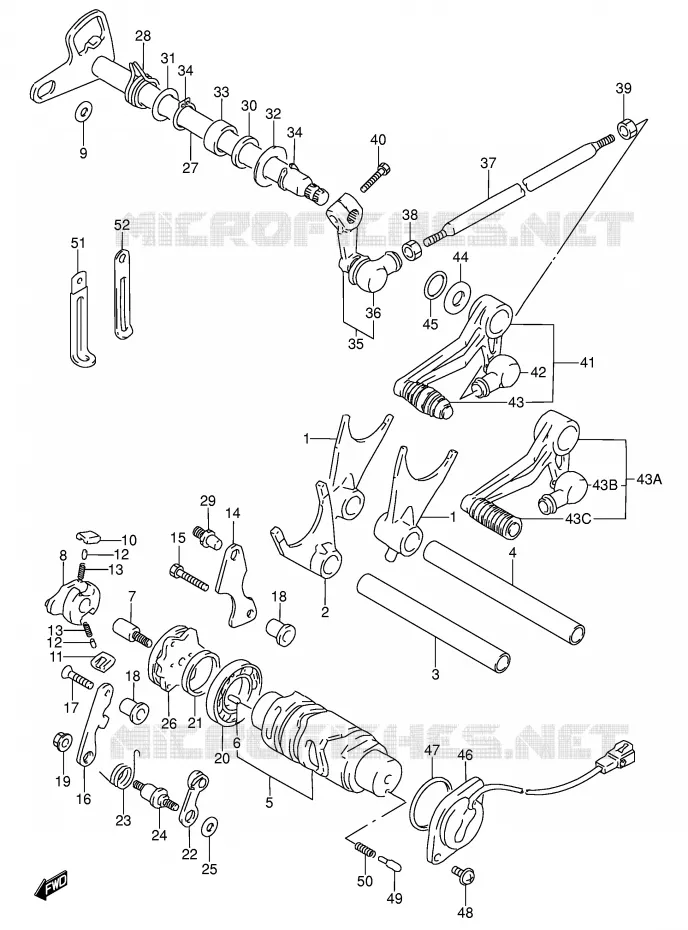

GEAR SHIFTING ASSY Suzuki MOTO 600 RF 1995 RF600RUS(E2)
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
18
19
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
31
32
32
33
34
34
35
36
37
38
39
39
40
40
41
42
43B
43A
43
43C
44
45
46
47
47
48
48
49
50
51
52
52
52
52
1
FORK, GEAR SHIFT

25211-17E00-000  

25211-17E02-000
 2521117E00000

Unit Price

2
FORK, GEAR SHIFT NO.3

25231-17E00-000  

25231-35F00-000
 2523117E00000

Unit Price

3
SHAFT,GEAR SHIFT FORK<br />SHAFT, FORK (L:110)
SHAFT, GEAR SHIFT FORK
SHAFT, FORK (L:110)

25411-26D01-000   2541126D01000

2541126D01000

Unit Price

4
SHAFT,GEAR SHIFT FORK(L:128)<br />SHAFT, FORK (L:128)
SHAFT, GEAR SHIFT FORK(L:128)
SHAFT, FORK (L:128)

25411-27A00-000   2541127A00000

2541127A00000

Unit Price

5
DISCONTINUE

25310-17E01-000  

2531017E01000
Not available
6
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

7
PIN, SHIFT CAM DRIVEN GEAR
PIN, SHIFT CAM DRIVEN GEAR

25312-12C00-000   2531212C00000

2531212C00000

Unit Price

8
DISCONTINUE
SHIFTER, CAM

25322-33C01-000   2532233C01000

2532233C01000
Not available
9
SPACER<br />ROLLER
SPACER
ROLLER

09180-07014-000   0918007014000

0918007014000

Unit Price

10
PAWL,GEAR SHIFT NO.1<br />PAWL, NO.1
PAWL, GEAR SHIFT NO.1
PAWL, NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

11
PAWL,GEAR SHIFT NO.2<br />PAWL, NO.2
PAWL, GEAR SHIFT NO.2
PAWL, NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

12
SHIFTING PAUL ROLLER<br />PIN
SHIFTING PAUL ROLLER
PIN

09261-05003-000   0926105003000

0926105003000

Unit Price

13
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

14
DISCONTINUE
PAWL LIFTER

25331-26D00-000   2533126D00000

2533126D00000
Not available
15
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

16
DISCONTINUE
GUIDE, CAM

25341-17E00-000   2534117E00000

2534117E00000
Not available
17
SCREW

02122-06303-000  

02122-0630B-000
 0212206303000

Unit Price

18
SPACER
SPACER

09180-06202-000   0918006202000

0918006202000
Not available
19
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

20
BEARING, ROLLER KOYO

09262-25002-000  

09262-25006-000
 0926225002000

Unit Price

21
WASHER (25X32X3)
WASHER (25X32X3)

09160-25059-000   0916025059000

0916025059000

Unit Price

22
STOPPER,GEAR SHIFT CAM<br />STOPPER, CAM
STOPPER, GEAR SHIFT CAM
STOPPER, CAM

25350-26D01-000   2535026D01000

2535026D01000

Unit Price

23
SPRING, STOPPER ARM

25355-26D10-000  

25355-26D20-000
 2535526D10000

Unit Price

23
SPRING, STOPPER ARM
SPRING

25355-26D21-000   2535526D21000

2535526D21000

Unit Price

24
SUPPORT,CAM STOPPER ARM<br />SUPPORT, STOPPER
SUPPORT, CAM STOPPER ARM
SUPPORT, STOPPER

25356-12C00-000   2535612C00000

2535612C00000

Unit Price

25
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

26
DISCONTINUE
PLATE, STOPPER

25380-12B00-000   2538012B00000

2538012B00000
Not available
27
DISCONTINUE
SHAFT, GEAR SHIFTING

25510-17E10-000   2551017E10000

2551017E10000
Not available
28
SPRING
SPRING

09444-20003-000   0944420003000

0944420003000

Unit Price

29
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

30
SEAL,OIL(14X22X6)<br />OIL SEAL
SEAL, OIL(14X22X6)
OIL SEAL

09283-14006-000   0928314006000

0928314006000

Unit Price

31
WASHER, GEAR SHIFT SH

08211-14221-000  

09181-14167-000
 0821114221000

Unit Price

32
WASHER 14X29X0.8<br />WASHER, LH
WASHER 14X29X0.8
WASHER, LH

09160-14016-000   0916014016000

0916014016000

Unit Price

32
WASHER(14.5X28X0.8)

09160-14034-000  

09160-14060-000
 0916014034000

Unit Price

33
BEARING, RR CUSHION<br />BEARING
BEARING, RR CUSHION
BEARING

09263-14027-000   0926314027000

0926314027000

Unit Price

34
CIRCLIP

08331-31146-000  

08331-3114A-000
 0833131146000

Unit Price

35
ARM,GEAR SHIFT LINK
ARM, GEAR SHIFT LINK

25520-19C02-000  

25520-19C03-000
 2552019C02000

Unit Price

36
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

37
ROD, GEAR SHIFT LINK
GEAR SHIFT LINK ROD

25525-21E10-000   2552521E10000

2552521E10000

Unit Price

38
GR SHFT LINK ROD NUT<br />NUT
GR SHFT LINK ROD NUT
NUT

09140-06011-000   0914006011000

0914006011000

Unit Price

39
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

40
BOLT

01107-06257-000  

01500-06257-000
 0110706257000

Unit Price

41
LEVER ASSY, GEAR SHIFT

25600-17C03-000  

25600-33E01-000
 2560017C03000

Unit Price

42
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

43
RUBBER,GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT PEDAL

25652-16500-000  

25652-16510-000
 2565216500000

Unit Price

43A
LEVER ASSY,GEAR SHIFT
LEVER ASSY, GEAR SHIFT

25600-33E00-000  

25600-33E01-000
 2560033E00000

Unit Price

43B
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

43C
RUBBER,GEAR SHIFT PEDAL<br />RUBBER
RUBBER, GEAR SHIFT PEDAL
RUBBER

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

44
WASHER (14X27X4)

09160-14052-000   0916014052000

0916014052000
Not available
45
WASHER<br />WASHER (18X24X1)
WASHER
WASHER (18X24X1)

09160-18022-000   0916018022000

0916018022000

Unit Price

46
TERMINAL BASE ASSY,NEUTRAL<br />BODY, GEAR SHIFTING SWITCH
TERMINAL BASE ASSY, NEUTRAL
BODY, GEAR SHIFTING SWITCH

37720-48B00-000   3772048B00000

3772048B00000

Unit Price

47
O-RING,ID:35.5<br />O RING (D:2.4,ID:35.5)
O-RING, ID:35.5
O RING (D:2.4, ID:35.5)

09280-35006-000   0928035006000

0928035006000

Unit Price

47
O RING,SHIFT SWITCH<br />O RING (D:2.4,ID:36.2)
O RING, SHIFT SWITCH
O RING (D:2.4, ID:36.2)

09280-36001-000   0928036001000

0928036001000

Unit Price

48
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

49
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

50
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

51
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

52
CLAMP(L:65)

09404-06422-000  

09404-06429-000
 0940406422000

Unit Price

52
CLAMP(L:80)

09404-06426-000  

09404-06433-000
 0940406426000

Unit Price

52
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

52
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of RF. Let us know if you have any questions.

Genuine parts for Suzuki 600 RF 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
CYLINDER HEAD COVER for Suzuki RF 600 1995

CYLINDER HEAD COVER
for Suzuki RF 600 1995

CYLINDER HEAD for Suzuki RF 600 1995

CYLINDER HEAD
for Suzuki RF 600 1995

CYLINDER for Suzuki RF 600 1995

CYLINDER
for Suzuki RF 600 1995

CRANKCASE for Suzuki RF 600 1995

CRANKCASE
for Suzuki RF 600 1995

CRANKCASE COVER for Suzuki RF 600 1995

CRANKCASE COVER
for Suzuki RF 600 1995

OIL PAN OIL PUMP for Suzuki RF 600 1995

OIL PAN - OIL PUMP
for Suzuki RF 600 1995

CRANKSHAFT for Suzuki RF 600 1995

CRANKSHAFT
for Suzuki RF 600 1995

STARTER MOTOR CLUTCH for Suzuki RF 600 1995

STARTER MOTOR CLUTCH
for Suzuki RF 600 1995

CAM SHAFT VALVE for Suzuki RF 600 1995

CAM SHAFT - VALVE
for Suzuki RF 600 1995

TIMING for Suzuki RF 600 1995

TIMING
for Suzuki RF 600 1995

CARBURETOR (MODEL P/R) for Suzuki RF 600 1995

CARBURETOR (MODEL P / R)
for Suzuki RF 600 1995

CARBURETOR (MODEL S) for Suzuki RF 600 1995

CARBURETOR (MODEL S)
for Suzuki RF 600 1995

CARBURETOR (MODEL P/R E18/E39) for Suzuki RF 600 1995

CARBURETOR (MODEL P / R E18 / E39)
for Suzuki RF 600 1995

CARBURETOR (MODEL S/V E18) for Suzuki RF 600 1995

CARBURETOR (MODEL S / V E18)
for Suzuki RF 600 1995

CARBURETOR (MODEL T/V) for Suzuki RF 600 1995

CARBURETOR (MODEL T / V)
for Suzuki RF 600 1995

CARBURETOR FITTINGS (MODEL P/R) for Suzuki RF 600 1995

CARBURETOR FITTINGS (MODEL P / R)
for Suzuki RF 600 1995

CARBURETOR FITTINGS (MODEL S/T/V) for Suzuki RF 600 1995

CARBURETOR FITTINGS (MODEL S / T / V)
for Suzuki RF 600 1995

AIR FILTER for Suzuki RF 600 1995

AIR FILTER
for Suzuki RF 600 1995

MUFFLER (MODEL P/R) for Suzuki RF 600 1995

MUFFLER (MODEL P / R)
for Suzuki RF 600 1995

MUFFLER (MODEL S/T/V) for Suzuki RF 600 1995

MUFFLER (MODEL S / T / V)
for Suzuki RF 600 1995

FUEL PUMP for Suzuki RF 600 1995

FUEL PUMP
for Suzuki RF 600 1995

OIL COOLER OIL FILTER for Suzuki RF 600 1995

OIL COOLER - OIL FILTER
for Suzuki RF 600 1995

WATER PUMP for Suzuki RF 600 1995

WATER PUMP
for Suzuki RF 600 1995

RADIATOR for Suzuki RF 600 1995

RADIATOR
for Suzuki RF 600 1995

RADIATOR HOSE EXPANSION TANK for Suzuki RF 600 1995

RADIATOR HOSE - EXPANSION TANK
for Suzuki RF 600 1995

FUEL EVAP SYSTEM (MODEL P/R E18/E39) for Suzuki RF 600 1995

FUEL EVAP SYSTEM (MODEL P / R E18 / E39)
for Suzuki RF 600 1995

FUEL EVAP SYSTEM (MODEL S/V E18) for Suzuki RF 600 1995

FUEL EVAP SYSTEM (MODEL S / V E18)
for Suzuki RF 600 1995

CLUTCH (MODEL P/R) for Suzuki RF 600 1995

CLUTCH (MODEL P / R)
for Suzuki RF 600 1995

CLUTCH (MODEL S/T/V) for Suzuki RF 600 1995

CLUTCH (MODEL S / T / V)
for Suzuki RF 600 1995

TRANSMISSION for Suzuki RF 600 1995

TRANSMISSION
for Suzuki RF 600 1995

GEAR SHIFTING ASSY for Suzuki RF 600 1995

GEAR SHIFTING ASSY
for Suzuki RF 600 1995

ALTERNATOR (MODEL P/R) for Suzuki RF 600 1995

ALTERNATOR (MODEL P / R)
for Suzuki RF 600 1995

ALTERNATOR (MODEL S/T/V) for Suzuki RF 600 1995

ALTERNATOR (MODEL S / T / V)
for Suzuki RF 600 1995

GENERATOR SENSOR (MODEL P/R/S) for Suzuki RF 600 1995

GENERATOR SENSOR (MODEL P / R / S)
for Suzuki RF 600 1995

GENERATOR SENSOR (MODEL T/V) for Suzuki RF 600 1995

GENERATOR SENSOR (MODEL T / V)
for Suzuki RF 600 1995

FUEL COCK for Suzuki RF 600 1995

FUEL COCK
for Suzuki RF 600 1995

Suzuki 600 RF 1995

Select your Suzuki 1995 model

600 RF 1995 RF600RUS(E2)

Suzuki RF

Displacement: 600 cc
Year: 1995
Model code RF600RUS(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
