Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI BANDIT 650 2005

CRANKCASE COVER

Item numbers

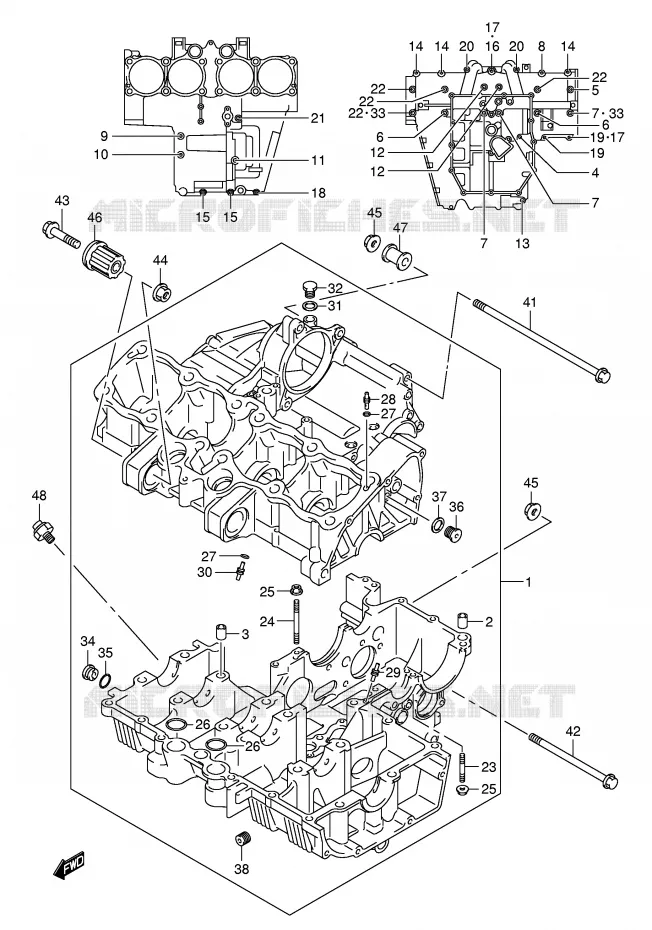

CRANKCASE Suzuki MOTO 650 BANDIT 2005 GSF650SUAK5(E2)
1
2
3
4
5
6
6
7
7
7
8
9
10
11
12
12
13
14
14
14
15
15
16
17
17
18
19
19
20
20
21
22
22
22
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
33
34
35
36
37
38
41
42
43
44
45
45
46
47
48
1
CRANKCASE SET

11303-38810-000   1130338810000

1130338810000
Not available
2
CLUTCH COVER PI **S1<br />PIN
CLUTCH COVER PI **S1
PIN

09206-13004-000   0920613004000

0920613004000

Unit Price

3
PIN, CRANKCASE
PIN

09206-11007-000   0920611007000

0920611007000

Unit Price

4
BOLT (6X105)
BOLT (6X105)

09103-06163-000   0910306163000

0910306163000
Not available
5
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

6
BOLT (8X125)
BOLT (8X125)

09103-08182-000   0910308182000

0910308182000

Unit Price

7
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

8
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

9
BOLT

07130-06403-000  

07130-0640B-000
 0713006403000

Unit Price

10
BOLT

07130-06503-000  

07130-0650B-000
 0713006503000

Unit Price

11
BOLT

07130-06653-000  

07130-0665B-000
 0713006653000

Unit Price

12
BOLT

07130-08653-000  

07130-0865B-000
 0713008653000

Unit Price

13
BOLT

01550-08603-000  

01550-0860B-000
 0155008603000

Unit Price

14
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

15
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

16
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

17
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000

Unit Price

18
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

19
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

20
DISCONTINUE
BOLT

01550-06703-000  

0155006703000
Not available
21
BOLT

01550-06803-000  

01550-0680B-000
 0155006803000

Unit Price

22
BOLT (8X95)
BOLT (8X95)

09103-08066-000   0910308066000

0910308066000
Not available
23
STUD BOLT

01421-06408-000   0142106408000

0142106408000
Not available
24
BOLT, STUD

01421-06608-000  

01421-0660A-000
 0142106608000

Unit Price

25
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

26
O RING(D:2.5,ID:21)<br />O RING (D:2.5,ID:21.0)
O RING(D:2.5, ID:21)
O RING (D:2.5, ID:21.0)

09280-21008-000   0928021008000

0928021008000

Unit Price

27
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

28
JET, OIL GALL HEAD
JET, OIL GALL HEAD

09493-14002-000   0949314002000

0949314002000
Not available
29
JET<br />JET, OIL GALL GEAR SHIFT
JET
JET, OIL GALL GEAR SHIFT

09493-24010-000   0949324010000

0949324010000

Unit Price

30
JET(13)<br />JET, OIL GALL PISTON
JET(13)
JET, OIL GALL PISTON

09493-26007-000   0949326007000

0949326007000

Unit Price

31
GASKET OIL GALLERY<br />GASKET, HOLE PLUG
GASKET OIL GALLERY
GASKET, HOLE PLUG

09168-12002-000   0916812002000

0916812002000

Unit Price

32
PLUG 2ND MUFFLER<br />PLUG, HOLE
PLUG 2ND MUFFLER
PLUG, HOLE

09247-12103-000   0924712103000

0924712103000

Unit Price

33
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

34
PLUG, OIL GALLERY

09248-16003-000  

09248-16007-000
 0924816003000

Unit Price

35
O RING (D:2.4,ID:16.8)
O RING (D:2.4, ID:16.8)

09280-17002-000   0928017002000

0928017002000

Unit Price

36
PLUG<br />PLUG, OIL GALLERY
PLUG
PLUG, OIL GALLERY

09248-14010-000   0924814010000

0924814010000

Unit Price

37
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

38
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

39
PLATE,CRANK THRUST<br />BEARING, THRUST RH (GREEN)
PLATE, CRANK THRUST
BEARING, THRUST RH (GREEN)

12228-43414-000   1222843414000

1222843414000

Unit Price

40
PLATE,CRANK THRUST<br />BEARING, THRUST LH (GREEN)
PLATE, CRANK THRUST
BEARING, THRUST LH (GREEN)

12228-43414-000   1222843414000

1222843414000

Unit Price

40
BEARING,THRUST<br />BEARING, THRUST LH (YELLOW)
BEARING, THRUST
BEARING, THRUST LH (YELLOW)

12228-43415-000   1222843415000

1222843415000

Unit Price

40
DISCONTINUE<br />BEARING, THRUST LH (RED)
DISCONTINUE
BEARING, THRUST LH (RED)

12228-43411-000   1222843411000

1222843411000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (BLACK)
DISCONTINUE
BEARING, THRUST LH (BLACK)

12228-43412-000   1222843412000

1222843412000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (BLUE)
DISCONTINUE
BEARING, THRUST LH (BLUE)

12228-43413-000   1222843413000

1222843413000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (WHITE)
DISCONTINUE
BEARING, THRUST LH (WHITE)

12228-43416-000   1222843416000

1222843416000
Not available
41
BOLT,L:180<br />BOLT (10X180)
BOLT, L:180
BOLT (10X180)

09103-10136-000   0910310136000

0910310136000

Unit Price

42
BOLT<br />BOLT (10X130)
BOLT
BOLT (10X130)

09103-10122-000   0910310122000

0910310122000

Unit Price

43
BOLT(10X52)<br />BOLT, FRONT
BOLT(10X52)
BOLT, FRONT

09103-10213-000   0910310213000

0910310213000

Unit Price

44
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

45
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

46
BUSH,ENGINE MOUNTING
BUSH, ENGINE MOUNTING

11681-06B00-000  

11681-06B01-000
 1168106B00000

Unit Price

47
SPACER,ENGINE MOUNT(L27)<br />SPACER (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

48
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

49
BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 650 BANDIT 2005

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND for Suzuki BANDIT 650 2005

STAND
for Suzuki BANDIT 650 2005

HANDLEBAR for Suzuki BANDIT 650 2005

HANDLEBAR
for Suzuki BANDIT 650 2005

LEVERS HANDGRIPS for Suzuki BANDIT 650 2005

LEVERS - HANDGRIPS
for Suzuki BANDIT 650 2005

FRONT FORK (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2005

FRONT FORK (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2005

FRONT FORK (GSF650SK5/SUK5/SAK5/SUAK5/SK6/SUK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

FRONT FORK (GSF650SK5 / SUK5 / SAK5 / SUAK5 / SK6 / SUK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

STEERING STEM (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2005

STEERING STEM (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2005

STEERING STEM (GSF650SK5/SUK5/SAK5/SUAK5/SK6/SUK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

STEERING STEM (GSF650SK5 / SUK5 / SAK5 / SUAK5 / SK6 / SUK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

FRONT WHEEL (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

FRONT WHEEL (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

FRONT WHEEL (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

FRONT WHEEL (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

ABS SYSTEM (GSF650AK5/UAK5/SAK5/SUAK5/AK6/YAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

ABS SYSTEM (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / YAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

FRONT CALIPER for Suzuki BANDIT 650 2005

FRONT CALIPER
for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650AK5/UAK5/AK6/UAK6/AK6/UAK6) for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650AK5 / UAK5 / AK6 / UAK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650SAK5/SUAK5/SAK6/SUAK6) for Suzuki BANDIT 650 2005

FRONT BRAKE HOSE (GSF650SAK5 / SUAK5 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

FRONT MASTER CYLINDER (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2005

FRONT MASTER CYLINDER (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2005

FRONT MASTER CYLINDER (SEE NOTE) for Suzuki BANDIT 650 2005

FRONT MASTER CYLINDER (SEE NOTE)
for Suzuki BANDIT 650 2005

SWINGARM (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

SWINGARM (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

SWINGARM (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

SWINGARM (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

SHOCK ABSORBER LINKAGE for Suzuki BANDIT 650 2005

SHOCK ABSORBER LINKAGE
for Suzuki BANDIT 650 2005

REAR WHEEL (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

REAR WHEEL (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

REAR WHEEL (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

REAR WHEEL (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

REAR CALIPER (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

REAR CALIPER (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

REAR CALIPER (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

REAR CALIPER (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

REAR BRAKE MASTER CYLINDER (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2005

REAR BRAKE MASTER CYLINDER (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2005

REAR BRAKE MASTER CYLINDER (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2005

REAR BRAKE MASTER CYLINDER (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2005

Suzuki 650 BANDIT 2005

Select your Suzuki 2005 model

650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)
650 BANDIT 2005 GSF650SUAK5(E2)

BANDIT 650

Suzuki BANDIT

Displacement: 650 cc
Year: 2005
Model code GSF650SUAK5(E2)
ABS
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
