Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI BANDIT 650 2006

ALTERNATOR

Item numbers

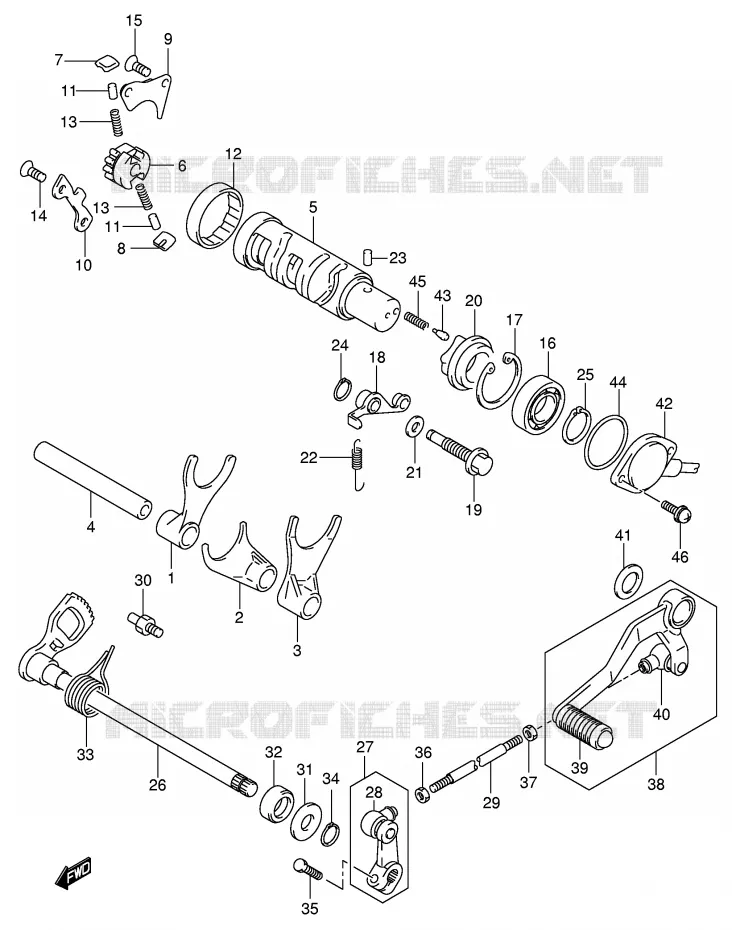

GEAR SHIFTING ASSY Suzuki MOTO 650 BANDIT 2006 GSF650SAK6(E2)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFT NO.1

25211-27A12-000   2521127A12000

2521127A12000

Unit Price

2
DISCONTINUE<br />FORK, GEAR SHIFT NO.2
DISCONTINUE
FORK, GEAR SHIFT NO.2

25221-27A01-000   2522127A01000

2522127A01000
Not available
3
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFT NO.3

25231-27A00-000   2523127A00000

2523127A00000

Unit Price

4
SHAFT,GEAR SHIFT FORK(L:128)<br />SHAFT, GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK(L:128)
SHAFT, GEAR SHIFT FORK

25411-27A00-000   2541127A00000

2541127A00000

Unit Price

5
DISCONTINUE<br />CAM, GEAR SHIFT
DISCONTINUE
CAM, GEAR SHIFT

25310-27A03-000   2531027A03000

2531027A03000
Not available
6
GEAR,GEAR SHIFT CAM DRIVEN<br />GEAR, GEAR SHIFT CAM
GEAR, GEAR SHIFT CAM DRIVEN
GEAR, GEAR SHIFT CAM

25322-31310-000   2532231310000

2532231310000

Unit Price

7
PAWL,GEAR SHIFT NO.1<br />POLE, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1
POLE, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

8
PAWL,GEAR SHIFT NO.2<br />POLE, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2
POLE, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

9
LIFTER, GEAR SHIFT POLE
LIFTER, GEAR SHIFT POLE

25331-31310-000   2533131310000

2533131310000
Not available
10
DISCONTINUE<br />GUIDE, CAM
DISCONTINUE
GUIDE, CAM

25341-27A00-000   2534127A00000

2534127A00000
Not available
11
SHIFTING PAUL ROLLER<br />PIN, GEAR
SHIFTING PAUL ROLLER
PIN, GEAR

09261-05003-000   0926105003000

0926105003000

Unit Price

12
BEARING(43X49X12)<br />BEARING, GEAR RH (43X49X12)
BEARING(43X49X12)
BEARING, GEAR RH (43X49X12)

09263-43001-000   0926343001000

0926343001000

Unit Price

13
K S PAWL SPRING<br />SPRING, GEAR RETURN
K S PAWL SPRING
SPRING, GEAR RETURN

09440-04003-000   0944004003000

0944004003000

Unit Price

14
SCREW<br />SCREW, CAM GUIDE
SCREW
SCREW, CAM GUIDE

09126-06011-000   0912606011000

0912606011000

Unit Price

15
SCREW<br />SCREW, POLE
SCREW
SCREW, POLE

09126-06011-000   0912606011000

0912606011000

Unit Price

16
BEARING, RH<br />BEARING, GEAR LH
BEARING, RH
BEARING, GEAR LH

08113-69050-000   0811369050000

0811369050000

Unit Price

17
CIRCLIP

08331-41426-000  

08331-41429-000
 0833141426000

Unit Price

18
STOPPER, GEAR SHIFT CAM
STOPPER, GEAR SHIFT CAM

25350-27A00-000   2535027A00000

2535027A00000

Unit Price

19
DISCONTINUE<br />SHAFT, GEAR SHIFT STOPPER
DISCONTINUE
SHAFT, GEAR SHIFT STOPPER

25353-27A00-000   2535327A00000

2535327A00000
Not available
20
PLATE,STOPPER<br />PLATE, GEAR SHIFT STOPPER
PLATE, STOPPER
PLATE, GEAR SHIFT STOPPER

25381-38400-000   2538138400000

2538138400000

Unit Price

21
CRNK DRAIN PLUG GASK<br />GASKET, GEAR SHIFT STOPPER
CRNK DRAIN PLUG GASK
GASKET, GEAR SHIFT STOPPER

09168-10002-000   0916810002000

0916810002000

Unit Price

22
SPRING<br />SPRING, GEAR SHIFT STOPPER
SPRING
SPRING, GEAR SHIFT STOPPER

09443-09033-000   0944309033000

0944309033000

Unit Price

23
PIN (4X6)<br />PIN, TEAR SHIFT STOPPER
PIN (4X6)
PIN, TEAR SHIFT STOPPER

04221-04069-000   0422104069000

0422104069000

Unit Price

24
CIRCLIP

08331-31086-000  

08331-31089-000
 0833131086000

Unit Price

25
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

26
DISCONTINUE<br />SHAFT, GEAR SHIFT
DISCONTINUE
SHAFT, GEAR SHIFT

25510-19C01-000   2551019C01000

2551019C01000
Not available
27
ARM,GEAR SHIFT LINK
ARM, GEAR SHIFT LINK

25520-22A00-000  

25520-22A01-000
 2552022A00000

Unit Price

28
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

29
ROD, GEAR SHIFT LINK

25525-12F00-000   2552512F00000

2552512F00000

Unit Price

30
STOPPER, GEAR SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-01011-000   2567101011000

2567101011000

Unit Price

31
WASHER

09160-12090-000  

09160-12089-000
 0916012090000

Unit Price

32
09285-12006<br />SEAL, GEAR SHIFT
09285-12006
SEAL, GEAR SHIFT

09285-12002-000  

0928512002000
Not available
33
SPRING<br />SPRING, GEAR SHIFT RETURN
SPRING
SPRING, GEAR SHIFT RETURN

09444-26017-000   0944426017000

0944426017000

Unit Price

34
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

35
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

36
NUT<br />NUT, GEAR SHIFT LINK
NUT
NUT, GEAR SHIFT LINK

08310-00067-000   0831000067000

0831000067000

Unit Price

37
NUT<br />NUT, GEAR SHIFT LH
NUT
NUT, GEAR SHIFT LH

09140-06025-000   0914006025000

0914006025000

Unit Price

38
DISCONTINUE
LEVER ASSY, GEAR SHIFT

25600-10D20-000  

2560010D20000
Not available
39
RUBBER,GEAR SHIFT PEDAL<br />RUBBER, GEAR SHIFT
RUBBER, GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

40
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

41
WASHER

09161-18003-000  

09160-18022-000
 0916118003000

Unit Price

42
BASE ASSY,GEAR SHIFT TERMINAL<br />TERMINAL BASE ASSY, NEUTRAL
BASE ASSY, GEAR SHIFT TERMINAL
TERMINAL BASE ASSY, NEUTRAL

37720-20C10-000   3772020C10000

3772020C10000

Unit Price

43
K S PAWL ROLLER<br />CONTACT, NEUTRAL SW
K S PAWL ROLLER
CONTACT, NEUTRAL SW

09209-05011-000   0920905011000

0920905011000

Unit Price

44
O-RING,ID:35.5<br />O RING (D:2.40,ID:35.5)
O-RING, ID:35.5
O RING (D:2.40, ID:35.5)

09280-35006-000   0928035006000

0928035006000

Unit Price

45
K S PAWL SPRING<br />SPRING, NEUTRAL SW
K S PAWL SPRING
SPRING, NEUTRAL SW

09440-04010-000   0944004010000

0944004010000

Unit Price

46
SCREW, NEUTRAL SW

09138-05015-000   0913805015000

0913805015000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 650 BANDIT 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND for Suzuki BANDIT 650 2006

STAND
for Suzuki BANDIT 650 2006

HANDLEBAR for Suzuki BANDIT 650 2006

HANDLEBAR
for Suzuki BANDIT 650 2006

LEVERS HANDGRIPS for Suzuki BANDIT 650 2006

LEVERS - HANDGRIPS
for Suzuki BANDIT 650 2006

FRONT FORK (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2006

FRONT FORK (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2006

FRONT FORK (GSF650SK5/SUK5/SAK5/SUAK5/SK6/SUK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

FRONT FORK (GSF650SK5 / SUK5 / SAK5 / SUAK5 / SK6 / SUK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

STEERING STEM (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2006

STEERING STEM (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2006

STEERING STEM (GSF650SK5/SUK5/SAK5/SUAK5/SK6/SUK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

STEERING STEM (GSF650SK5 / SUK5 / SAK5 / SUAK5 / SK6 / SUK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

FRONT WHEEL (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

FRONT WHEEL (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

FRONT WHEEL (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

FRONT WHEEL (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

ABS SYSTEM (GSF650AK5/UAK5/SAK5/SUAK5/AK6/YAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

ABS SYSTEM (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / YAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

FRONT CALIPER for Suzuki BANDIT 650 2006

FRONT CALIPER
for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650AK5/UAK5/AK6/UAK6/AK6/UAK6) for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650AK5 / UAK5 / AK6 / UAK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650SAK5/SUAK5/SAK6/SUAK6) for Suzuki BANDIT 650 2006

FRONT BRAKE HOSE (GSF650SAK5 / SUAK5 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

FRONT MASTER CYLINDER (GSF650K5/UK5/AK5/UAK5/K6/UK6/AK6/UAK6) for Suzuki BANDIT 650 2006

FRONT MASTER CYLINDER (GSF650K5 / UK5 / AK5 / UAK5 / K6 / UK6 / AK6 / UAK6)
for Suzuki BANDIT 650 2006

FRONT MASTER CYLINDER (SEE NOTE) for Suzuki BANDIT 650 2006

FRONT MASTER CYLINDER (SEE NOTE)
for Suzuki BANDIT 650 2006

SWINGARM (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

SWINGARM (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

SWINGARM (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

SWINGARM (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

SHOCK ABSORBER LINKAGE for Suzuki BANDIT 650 2006

SHOCK ABSORBER LINKAGE
for Suzuki BANDIT 650 2006

REAR WHEEL (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

REAR WHEEL (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

REAR WHEEL (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

REAR WHEEL (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

REAR CALIPER (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

REAR CALIPER (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

REAR CALIPER (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

REAR CALIPER (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

REAR BRAKE MASTER CYLINDER (GSF650K5/UK5/SK5/SUK5/K6/UK6/SK6/SUK6) for Suzuki BANDIT 650 2006

REAR BRAKE MASTER CYLINDER (GSF650K5 / UK5 / SK5 / SUK5 / K6 / UK6 / SK6 / SUK6)
for Suzuki BANDIT 650 2006

REAR BRAKE MASTER CYLINDER (GSF650AK5/UAK5/SAK5/SUAK5/AK6/UAK6/SAK6/SUAK6) for Suzuki BANDIT 650 2006

REAR BRAKE MASTER CYLINDER (GSF650AK5 / UAK5 / SAK5 / SUAK5 / AK6 / UAK6 / SAK6 / SUAK6)
for Suzuki BANDIT 650 2006

Suzuki 650 BANDIT 2006

Select your Suzuki 2006 model

650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)
650 BANDIT 2006 GSF650SAK6(E2)

BANDIT 650

Suzuki BANDIT

Displacement: 650 cc
Year: 2006
Model code GSF650SAK6(E2)
ABS
Drapeau UNITED KINGDOM / EUROPE
United Kingdom
Drapeau UNITED KINGDOM / EUROPE
Europe

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
