TIMING

CARBURETOR FOR SUZUKI BANDIT 650 2006

CARBURETOR FITTINGS

Item numbers

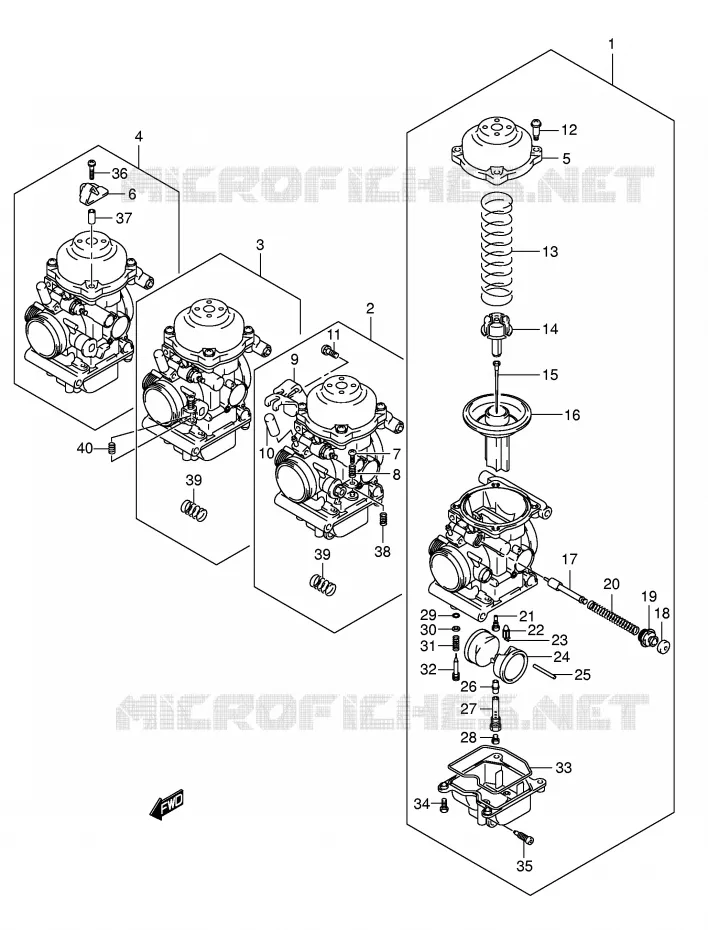

CARBURETOR Suzuki MOTO 650 BANDIT 2006 GSF650UK6(E2)
1
1
1
2
2
2
3
3
3
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
28
28
29
30
31
32
33
34
35
36
37
38
39
39
40
1
CARBURETOR ASSY, LH

13201-38G00-000   1320138G00000

1320138G00000
Not available
1
CARBURETOR ASSY, LH

13201-38G20-000   1320138G20000

1320138G20000
Not available
1
CARUBRETOR ASSY, LH

13201-38G30-000   1320138G30000

1320138G30000
Not available
2
CARBURETOR ASSY, ML

13202-38G00-000   1320238G00000

1320238G00000
Not available
2
CARBURETOR ASSY, ML

13202-38G20-000   1320238G20000

1320238G20000
Not available
2
CARBURETOR ASSY, ML

13202-38G30-000   1320238G30000

1320238G30000
Not available
3
CARBURETOR ASSY, MR

13203-38G00-000   1320338G00000

1320338G00000
Not available
3
CARBURETOR ASSY, MR

13203-38G20-000   1320338G20000

1320338G20000
Not available
3
CARBURETOR ASSY, MR

13203-38G30-000   1320338G30000

1320338G30000
Not available
4
CARBURETOR ASSY, RH

13204-38G00-000   1320438G00000

1320438G00000
Not available
4
CARBURETOR ASSY, RH

13204-38G20-000   1320438G20000

1320438G20000
Not available
4
CARBURETOR ASSY, RH

13204-38G30-000   1320438G30000

1320438G30000
Not available
5
TOP

13502-31F00-000   1350231F00000

1350231F00000

Unit Price

5
TOP

13502-38G00-000   1350238G00000

1350238G00000
Not available
6
STAY, PLATE
STAY, PLATE

13624-26E00-000   1362426E00000

1362426E00000

Unit Price

7
DISCONTINUE<br />SCREW
DISCONTINUE
SCREW

13267-26E10-000   1326726E10000

1326726E10000
Not available
8
SPRING
SPRING

13271-26E10-000   1327126E10000

1327126E10000

Unit Price

9
DISCONTINUE
PLATE

13565-26E00-000   1356526E00000

1356526E00000
Not available
10
DISCONTINUE<br />CAP
DISCONTINUE
CAP

13508-26E00-000  

1350826E00000
Not available
11
DISCONTINUE
SCREW

13602-26E20-000   1360226E20000

1360226E20000
Not available
12
SCREW

13601-11F00-000   1360111F00000

1360111F00000

Unit Price

13
SPRING

13417-31F00-000   1341731F00000

1341731F00000

Unit Price

14
DISCONTINUE
SEAT, SPRING

13504-31F00-000   1350431F00000

1350431F00000
Not available
15
NEEDLE, JET

13383-38G00-000   1338338G00000

1338338G00000

Unit Price

16
PISTON

13500-31F00-000   1350031F00000

1350031F00000

Unit Price

17
VALVE, STARTER
VALVE, STARTER

13411-26E00-000   1341126E00000

1341126E00000

Unit Price

18
CAP
CAP

13419-26E00-000   1341926E00000

1341926E00000

Unit Price

19
CAP
CAP

13418-26E00-000   1341826E00000

1341826E00000

Unit Price

20
SPRING
SPRING

13417-26E10-000   1341726E10000

1341726E10000

Unit Price

21
JET, SLOW (35)
JET, SLOW (35)

09492-35020-000   0949235020000

0949235020000

Unit Price

21
JET, PILOT(38)
JET, SLOW (38)

09492-38005-000   0949238005000

0949238005000

Unit Price

22
VALVE ASSY, NEEDLE
VALVE ASSY, NEEDLE

13370-26E00-000   1337026E00000

1337026E00000

Unit Price

23
CLIP
CLIP

13375-26E00-000   1337526E00000

1337526E00000

Unit Price

24
FLOAT ASSY
FLOAT ASSY

13250-26E00-000   1325026E00000

1325026E00000

Unit Price

25
PIN, FLOAT

13254-26E00-000   1325426E00000

1325426E00000

Unit Price

26
JET, NEEDLE

09494-00869-000   0949400869000

0949400869000

Unit Price

27
HOLDER, NEEDLE JET
HOLDER, NEEDLE JET

13331-26E00-000   1333126E00000

1333126E00000

Unit Price

28
JET, MAIN (102)

09491-20024-000   0949120024000

0949120024000

Unit Price

28
JET, MAIN (105)

09491-21027-000   0949121027000

0949121027000

Unit Price

28
JET, MAIN (108)

09491-21032-000   0949121032000

0949121032000
Not available
28
JET, MAIN (110)

09491-22028-000   0949122028000

0949122028000
Not available
29
O RING
O RING

13295-26E00-000   1329526E00000

1329526E00000

Unit Price

30
WASHER
WASHER

13291-26E00-000   1329126E00000

1329126E00000

Unit Price

31
SPRING
SPRING

13268-26E00-000   1326826E00000

1326826E00000

Unit Price

32
SCREW, ADJUST

13279-26E10-000  

13279-03FA0-000
 1327926E10000

Unit Price

33
O RING
O RING

13258-26E00-000   1325826E00000

1325826E00000
Not available
34
SCREW
SCREW

13602-26E10-000   1360226E10000

1360226E10000

Unit Price

35
PLUG, DRAIN
DRAIN, PLUG

13247-26E00-000   1324726E00000

1324726E00000

Unit Price

36
DISCONTINUE
SCREW

13602-31F00-000   1360231F00000

1360231F00000
Not available
37
COLLAR

13582-31F00-000   1358231F00000

1358231F00000

Unit Price

38
SPRING
SPRING

13268-26E10-000   1326826E10000

1326826E10000

Unit Price

39
DISCONTINUE<br />SPRING
DISCONTINUE
SPRING

13271-26E20-000   1327126E20000

1327126E20000
Not available
40
SPRING

13268-38G00-000   1326838G00000

1326838G00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 650 BANDIT 2006
