Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WIRING HARNESS (GSF650AK7 / AK8 / UAK7 / UAK8) REFER TO FIG.35 (E- 8) FOR GSF650SK7/SK8/SUK7/SUK8

WIRING HARNESS (GSF650SK7 / SK8 / SUK7 / SUK8) FOR SUZUKI BANDIT 650 2007

WIRING HARNESS (GSF650SAK7 / SAK8 / SUAK7 / SUAK8)

Item numbers

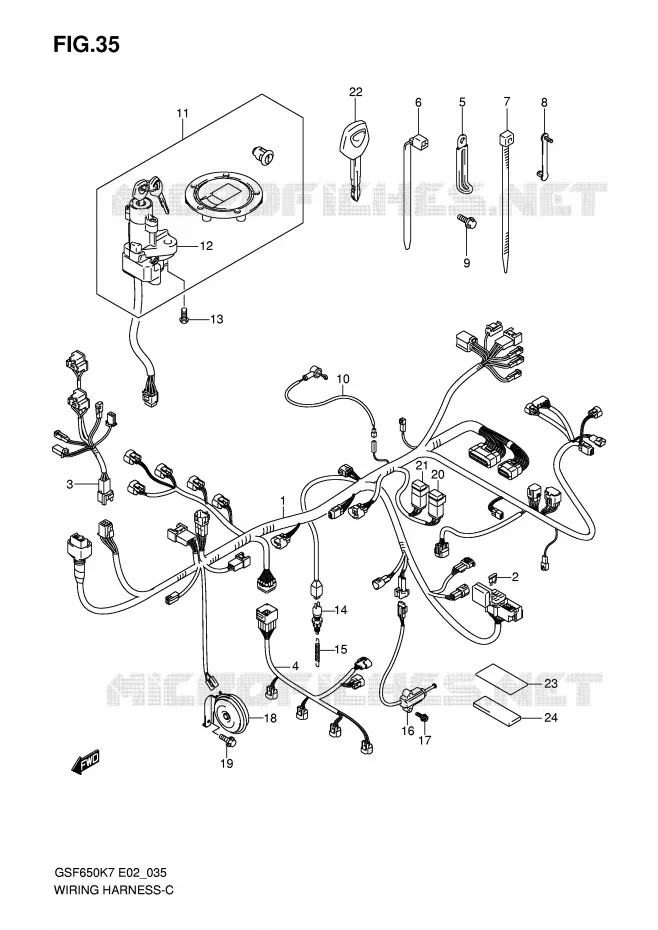

WIRING HARNESS (GSF650SK7/SK8/SUK7/SUK8) Suzuki MOTO 650 BANDIT 2007 GSF650SK7(E19)
1
2
2
3
4
5
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
HARNESS, WIRING NO.1

36610-18H60-000   3661018H60000

3661018H60000
Not available
2
FUSE (15A)

09481-15501-000   0948115501000

0948115501000

Unit Price

2
FUSE (10A)
FUSE (10A)

09481-10501-000  

0948110501000
Not available
3
DISCONTINUE
HARNESS, WIRING NO.2

36620-38G00-000  

3662038G00000
Not available
4
WIRE, INJECTOR LEAD

36859-18H00-000   3685918H00000

3685918H00000
Not available
5
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

5
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

6
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

6
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

6
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

7
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

8
CLAMP
CLAMP

09407-03401-000   0940703401000

0940703401000

Unit Price

9
BOLT
BOLT, WIRING HARNESS

01550-0612A-000   015500612A000

015500612A000

Unit Price

10
WIRE, OIL PRESSURE SWITCH

36851-18H00-000   3685118H00000

3685118H00000
Not available
11
37000-49824

37000-49820-000  

3700049820000
Not available
12
37100-49G02

37100-49G00-000  

3710049G00000
Not available
13
BOLT, STEERING LOCK

09119-08100-000  

37152-17K00-000
 0911908100000

Unit Price

14
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-24A00-000   3774024A00000

3774024A00000

Unit Price

15
SPRING
SPRING

09443-06054-000   0944306054000

0944306054000

Unit Price

16
37840-25D02

37840-25D00-000  

37840-25D01-000
 3784025D00000
17
BOLT<br />SCREW
BOLT
SCREW

07120-0620B-000   071200620B000

071200620B000

Unit Price

18
HORN ASSY

38500-18H00-000   3850018H00000

3850018H00000

Unit Price

19
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

20
RELAY ASSY<br />RELAY ASSY, FUEL PUMP
RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

21
RELAY ASSY<br />RELAY ASSY, FAN MOTOR
RELAY ASSY
RELAY ASSY, FAN MOTOR

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

22
KEY, BLANK
KEY, BLANK

37146-33E00-000   3714633E00000

3714633E00000

Unit Price

23
TAPE, RR FENDER
PROTECTOR (30X75X0.2)

63131-10F00-000   6313110F00000

6313110F00000

Unit Price

24
PROTECTOR(80X80X2)

33652-38A10-000  

33652-07D00-000
 3365238A10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (GSF650SK7/SK8/SUK7/SUK8) of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
