RADIATOR

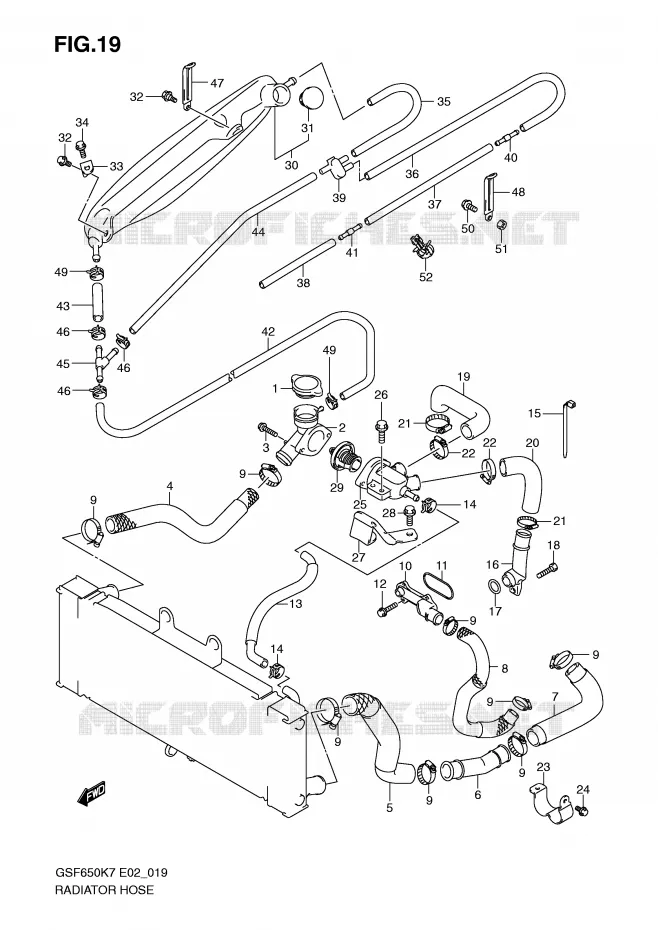

RADIATOR HOSE - EXPANSION TANK FOR SUZUKI BANDIT 650 2008

ANTI POLLUTION SYSTEM

Item numbers

CAP, RADIATOR(1.1)
CAP, RADIATOR

17730-14G00-000 1773014G00000

$38,97

Unit Price

CONDUCTION, RADIATOR
CONDUCTION

17791-18H00-000 1779118H00000

$39,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$3,97

Unit Price

HOSE, RADIATOR INLET

17851-18H00-000 1785118H00000

$57,97

Unit Price

HOSE, RADIATOR OUTLET

17852-18H00-000 1785218H00000

$57,97

Unit Price

PIPE, RADIATOR OUTLET

17890-17H00-000 1789017H00000

Not available

HOSE, WATER PUMP INLET

17853-18H00-000 1785318H00000

$86,97

Unit Price

HOSE, WATER PUMP OUTLET

17854-18H00-000 1785418H00000

$90,97

Unit Price

CLAMP

09402-38512-000 0940238512000

$20,97

Unit Price

CONNECTOR, CYLINDER INLET

17861-17H00-000 1786117H00000

Not available

O RING

17863-18H00-000 1786318H00000

Not available

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

HOSE, WATER BYPASS

17856-18H00-000 1785618H00000

$51,97

Unit Price

CLIP

09401-12409-000

09401-12414-000

$6,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP

09407-18402-000 0940718402000

$3,97

Unit Price

PIPE, CYLINDER HEAD OUTLET
PIPE, CYLINDER OUTLET

17880-18H00-000 1788018H00000

$72,97

Unit Price

O RING

09280-18008-000

09280-18009-000

$14,97

Unit Price

BOLT

07130-0612A-000 071300612A000

$4,97

Unit Price

HOSE, CYLINDER HEAD OUTLET, R
HOSE, CYLINDER OUTLET RH

17857-18H00-000 1785718H00000

$36,97

Unit Price

HOSE, CYLINDER HEAD OUTLET, L
HOSE, CYLINDER OUTLET LH

17858-18H00-000 1785818H00000

$30,97

Unit Price

CLAMP

09402-28513-000 0940228513000

$11,97

Unit Price

CLAMP

09402-32512-000 0940232512000

$18,97

Unit Price

PLATE, WATER HOSE CLAMP

17859-18H00-000 1785918H00000

$14,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

CONNECTOR, THERMOSTAT INLET
CONNECTOR

17662-18H00-000 1766218H00000

$107,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$3,97

Unit Price

BRACKET

17669-18H00-000 1766918H00000

Not available

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

THERMOSTAT, WATER 82 DEG
THERMOSTAT, WATER

17670-76G00-000 1767076G00000

$32,97

Unit Price

TANK ASSY, RESERVOIR

17910-18H00-000 1791018H00000

Not available

CAP, RESERVOIR TANK
CAP

17931-02FA0-000 1793102FA0000

$8,97

Unit Price

BOLT

09111-06085-000 0911106085000

$7,97

Unit Price

BRACKET, RESERVER TANK

17920-18H00-000 1792018H00000

Not available

BOLT

01550-0620A-000 015500620A000

$3,97

Unit Price

HOSE, OVERFLOW

17982-18H00-000 1798218H00000

Not available

HOSE, OVERFLOW NO.2

17983-18H10-000 1798318H10000

Not available

HOSE, OVERFLOW NO.3

17984-18H00-000 1798418H00000

Not available

HOSE, OVERFLOW NO.4

09359-50901-980 0935950901980

Not available

JOINT
JOINT, OVERFLOW HOSE

13471-18H00-000 1347118H00000

$11,97

Unit Price

JOINT, OVERFLOW HOSE NO.2

09367-04011-000 0936704011000

Not available

JOINT
JOINT, OVERFLOW HOSE NO.3

09367-06009-000 0936706009000

$5,97

Unit Price

HOSE, 5 X 9 X 2000
HOSE, TANK INLET

09352-50901-00B 093525090100B

$30,97

Unit Price

HOSE
HOSE, TANK INLET NO.2

09352-50901-600 0935250901600

$11,97

Unit Price

HOSE, TANK INLET NO.3

09359-35751-600 0935935751600

Not available

3WAY
JOINT

09367-06007-000 0936706007000

$4,97

Unit Price

CLIP

09401-08410-000

Not available

CLAMP(L:45 T:0.6)

09404-08205-000

09404-08211-000

$3,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLIP

09401-08411-000

Not available

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

CLAMP

09403-10406-000 0940310406000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE - EXPANSION TANK of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
