Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI BANDIT 650 2008

CRANKCASE COVER

Item numbers

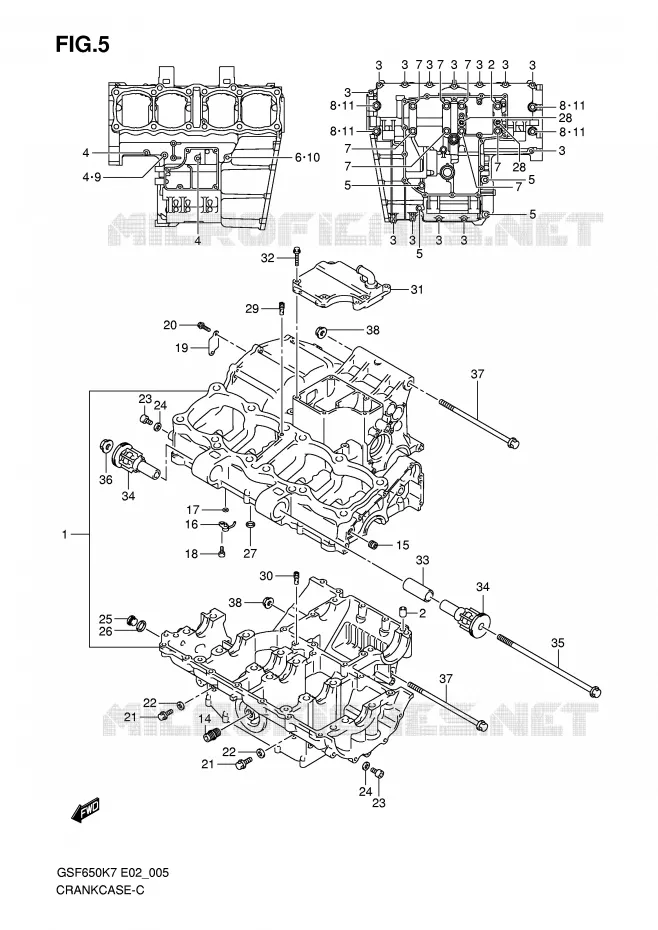

CRANKCASE Suzuki MOTO 650 BANDIT 2008 GSF650SUAK8(E2)
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
6
7
7
7
7
7
7
7
8
8
8
8
9
10
11
11
11
11
14
15
16
17
18
19
20
21
21
22
22
23
23
24
24
25
26
27
28
28
29
30
31
32
33
34
34
35
36
37
37
38
38
1
CRANKCASE SET

11300-17860-000   1130017860000

1130017860000
Not available
2
PIN,CRANKCASE<br />PIN
PIN, CRANKCASE
PIN

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

4
BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

5
BOLT

01550-0870A-000   015500870A000

015500870A000

Unit Price

6
BOLT

01550-0890A-000   015500890A000

015500890A000
Not available
7
BOLT (9X135)

09103-09005-000   0910309005000

0910309005000
Not available
8
BOLT (9X95)
BOLT (9X95)

09103-09008-000   0910309008000

0910309008000

Unit Price

9
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
10
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

11
GASKET (10.2X20X2.3)
GASKET (10.2X20X2.3)

09168-10031-000   0916810031000

0916810031000

Unit Price

12
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST RH (GREEN)

12228-17E00-0D0   1222817E000D0

1222817E000D0

Unit Price

13
BEARING, CRANK THRUST(RED)
BEARING, THRUST LH (RED)

12228-17E00-0A0   1222817E000A0

1222817E000A0

Unit Price

13
BEARING, CRANK THRUST
BEARING, THRUST LH (BLACK)

12228-17E00-0B0   1222817E000B0

1222817E000B0

Unit Price

13
BEARING, CRANK THRUST(BLUE)
BEARING, THRUST LH (BLUE)

12228-17E00-0C0   1222817E000C0

1222817E000C0

Unit Price

13
BEARING, CRANK THRUST(GREEN)
BEARING, THRUST LH (GREEN)

12228-17E00-0D0   1222817E000D0

1222817E000D0

Unit Price

13
BEARING, CRANK THRUST(YELLOW)
BEARING, THRUST LH (YELLOW)

12228-17E00-0E0   1222817E000E0

1222817E000E0

Unit Price

13
BEARING, CRANK THRUST(WHITE)
BEARING, THRUST LH (WHITE)

12228-17E00-0F0   1222817E000F0

1222817E000F0

Unit Price

14
UNION,OIL STAND<br />UNION, OIL FILTER STAND
UNION, OIL STAND
UNION, OIL FILTER STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

15
JET,OIL GALLERY(3.6)<br />JET, OIL GALLERY
JET, OIL GALLERY(3.6)
JET, OIL GALLERY

11329-02F00-000   1132902F00000

1132902F00000

Unit Price

16
JET, PISTON COOLING

11390-18H00-000   1139018H00000

1139018H00000
Not available
17
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

18
BOLT(6X12)<br />BOLT, PISTON COOLING
BOLT(6X12)
BOLT, PISTON COOLING

09106-06075-000   0910606075000

0910606075000

Unit Price

19
PLATE, OIL SEPARATOR

11317-18H00-000   1131718H00000

1131718H00000
Not available
20
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

21
BOLT
PLUG, OIL GALLERY

01550-0612A-000   015500612A000

015500612A000

Unit Price

22
GASKET,OIL GALLERY<br />GASKET
GASKET, OIL GALLERY
GASKET

09168-06018-000   0916806018000

0916806018000

Unit Price

23
PLUG<br />PLUG, OIL GALLERY
PLUG
PLUG, OIL GALLERY

07130-0812A-000   071300812A000

071300812A000

Unit Price

24
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

25
PLUG,OIL<br />PLUG, OIL GALLERY
PLUG, OIL
PLUG, OIL GALLERY

09248-16012-000   0924816012000

0924816012000

Unit Price

26
GASKET, OIL GALLERY
GASKET, OIL GALLERY

09168-16002-000   0916816002000

0916816002000

Unit Price

27
O RING (D:1.9,ID:7.8)
O RING (D:1.9, ID:7.8)

09280-08012-000   0928008012000

0928008012000

Unit Price

28
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

29
JET(140)<br />JET, HEAD
JET(140)
JET, HEAD

09493-28012-000   0949328012000

0949328012000

Unit Price

30
JET, AIR(180)
JET, T/M

09493-36006-000   0949336006000

0949336006000

Unit Price

31
COVER, BREATHER

11330-18H00-000   1133018H00000

1133018H00000
Not available
32
BOLT, CL COV/MAG COV,
BOLT

09103-06213-000   0910306213000

0910306213000

Unit Price

33
SPACER, ENG MTG
SPACER

11611-48G00-000   1161148G00000

1161148G00000

Unit Price

34
BUSH, ENGINE MOUNTING
BUSH

11652-10G30-000   1165210G30000

1165210G30000

Unit Price

35
BOLT

09103-10041-000  

09103-10041-A05
 0910310041000

Unit Price

36
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

37
BOLT (12X155)
BOLT (12X155)

09103-12031-000   0910312031000

0910312031000

Unit Price

38
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
