CRANKCASE COVER

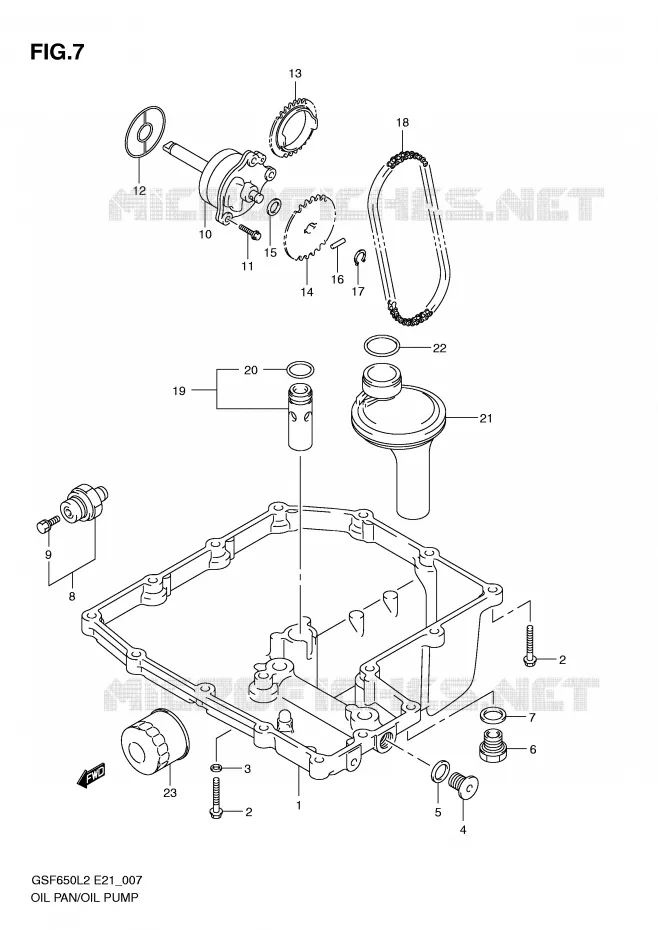

OIL PAN - OIL PUMP FOR SUZUKI BANDIT 650 2012

CRANKSHAFT

Item numbers

PAN, OIL

11511-18H10-000 1151118H10000

$374,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

PLUG
PLUG (L:12)

09248-12004-000 0924812004000

$11,97

Unit Price

GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000 0916812002000

Not available

PLUG, OIL DRAIN
PLUG (14X20)

09247-14036-000 0924714036000

$10,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

SWITCH ASSY, OIL PRESSURE

37820-33D10-000

37820-33D11-000

$33,97

Unit Price

BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000 3782233D00000

$5,97

Unit Price

PUMP ASSY, ENGINE OIL
PUMP ASSY, OIL

16400-18H00-000 1640018H00000

$231,97

Unit Price

BOLT

01547-0620A-000 015470620A000

$3,97

Unit Price

O RING, OIL PUMP
O RING

16491-33E00-000 1649133E00000

$11,97

Unit Price

SPROCKET, OIL PUMP DRIVE
SPROCKET, DRIVE

16321-01H00-000 1632101H00000

$76,97

Unit Price

SPROCKET, DRIVEN

16331-18H00-000 1633118H00000

Not available

SHIM (10X18X0.5)

09181-10158-000 0918110158000

$3,97

Unit Price

GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000 0926104009000

$2,97

Unit Price

CIRCLIP

08331-3110A-000

08331-31109-000

$2,97

Unit Price

CHAIN, OIL PUMP DRIVE

16310-18H00-000 1631018H00000

$41,97

Unit Price

VALVE ASSY, OIL RELIEF

16440-24F00-000 1644024F00000

$48,97

Unit Price

ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000 0928013004000

$3,97

Unit Price

STRAINER, ENGINE OIL

16520-18H00-000 1652018H00000

Not available

O-RING, DRIVESHAFT
O RING (D:2.4, ID:24.7)

09280-25004-000 0928025004000

$3,97

Unit Price

FILTER ASSY, ENGINE OIL

16510-07J00-000

16510-07J10-000

$21,45

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PAN - OIL PUMP of your Suzuki BANDIT 650 of BANDIT. Let us know if you have any questions.
