CYLINDER

CRANKCASE FOR SUZUKI BOULEVARD 650 1993

CRANKCASE COVER

Item numbers

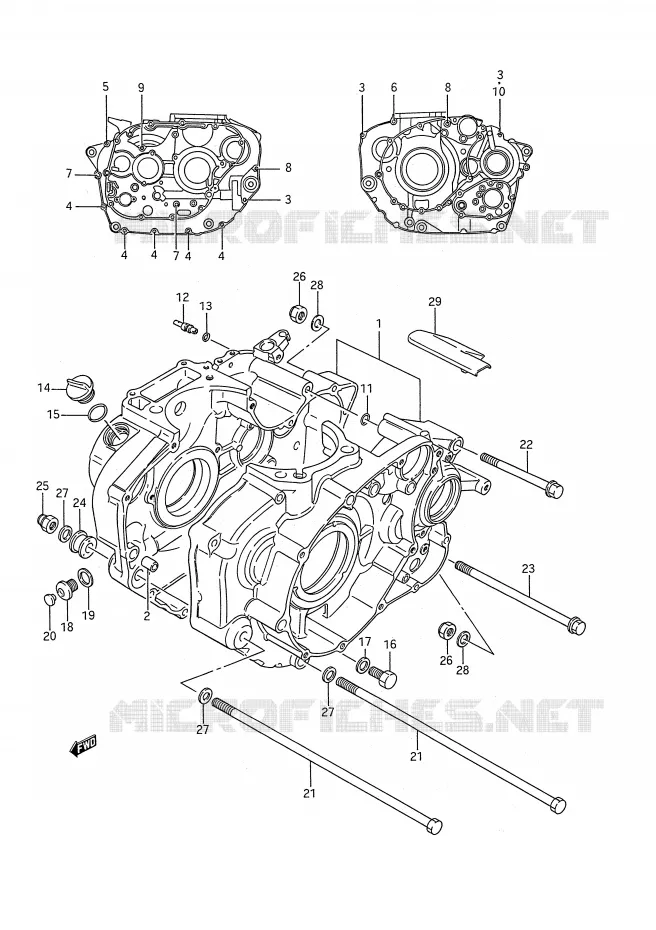

CRANKCASE Suzuki MOTO 650 BOULEVARD 1993 LS650P(E28)
1
2
3
3
3
4
4
4
4
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
27
27
28
28
29
1
DISCONTINUE

11301-24811-000  

1130124811000
Not available
2
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

3
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

4
BOLT,6X45<br />BOLT
BOLT, 6X45
BOLT

01547-06457-000   0154706457000

0154706457000

Unit Price

5
BOLT,6X55<br />BOLT
BOLT, 6X55
BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

6
BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

7
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

8
BOLT,6X70<br />BOLT
BOLT, 6X70
BOLT

01547-06707-000   0154706707000

0154706707000

Unit Price

9
BOLT,6X75<br />BOLT
BOLT, 6X75
BOLT

01547-06757-000   0154706757000

0154706757000

Unit Price

10
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
11
O RING D:2.4 ID:9.6
O RING, OIL GALLERY

09280-10013-000   0928010013000

0928010013000

Unit Price

12
JET, OIL GALLERY(18)
JET, OIL GALLERY

09493-36004-000   0949336004000

0949336004000

Unit Price

13
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

14
PLUG, ENG OIL FILLER
PLUG, OIL FILLER

09259-20007-000   0925920007000

0925920007000

Unit Price

15
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

16
BOLT

01107-12208-000  

01500-1220B-000
 0110712208000

Unit Price

17
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
18
09248-14011<br />PLUG, OIL GALLERY
09248-14011
PLUG, OIL GALLERY

09248-14005-000  

0924814005000
Not available
19
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

20
CAP

09250-08014-000   0925008014000

0925008014000

Unit Price

21
BOLT (10X323)

09104-10034-000   0910410034000

0910410034000

Unit Price

22
BOLT
BOLT (10X105)

09103-10087-000   0910310087000

0910310087000

Unit Price

23
BOLT (10X180)

09103-10053-000   0910310053000

0910310053000

Unit Price

24
SPACER,ENGINE MOUNT(L20)<br />SPACER
SPACER, ENGINE MOUNT(L20)
SPACER

11610-38400-000   1161038400000

1161038400000

Unit Price

25
NUT

09159-10064-000   0915910064000

0915910064000

Unit Price

26
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

27
WASHER

08322-11107-000  

08322-01107-000
 0832211107000

Unit Price

28
WASHER

08322-11104-000  

08322-0110B-000
 0832211104000

Unit Price

29
COVER, CRANKCASE START MOT

11384-24B00-000  

11384-24B01-000
 1138424B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BOULEVARD 650 of BOULEVARD. Let us know if you have any questions.
