FRAME

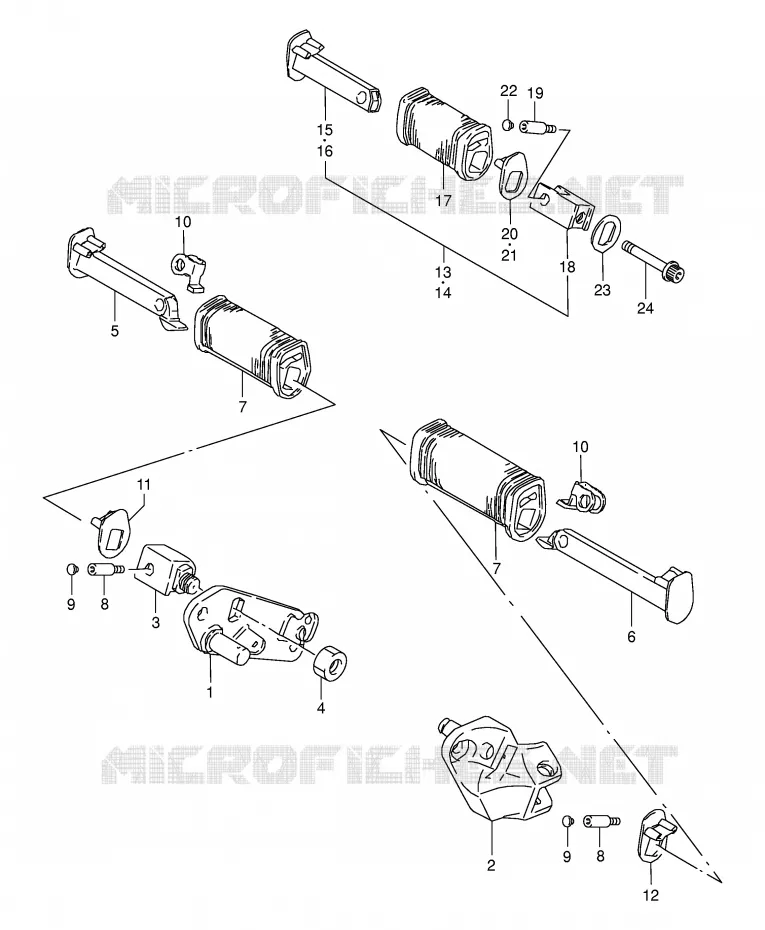

FOOTREST FOR SUZUKI BOULEVARD 650 1997

FUEL TANK (MODEL T / V / W / X) REFER TO FIG.30A(E-11) FOR MODEL Y/K1

Item numbers

BRACKET, FR FOOTREST, R
BRACKET, FRONT FOOTREST RH

43510-24B00-000 4351024B00000

$260,97

Unit Price

BRACKET, FR FOOTREST, L

43520-24B21-000

43520-24B22-000

$299,97

Unit Price

HOLDER, FR FOOTREST, R
HOLDER, FRONT FOOTREST RH

43517-24B01-000 4351724B01000

$130,97

Unit Price

NUT
NUT, RH

09140-16029-000 0914016029000

$4,97

Unit Price

BAR, FR FOOTREST, R
BAR, FRONT FOOTREST RH

43530-24B02-000 4353024B02000

$84,97

Unit Price

BAR, FR FOOTREST, L
BAR, FRONT FOOTREST LH

43540-24B02-000 4354024B02000

$84,97

Unit Price

RUBBER, FR FOOTREST
RUBBER

43551-38A00-000 4355138A00000

$20,97

Unit Price

BOLT
BOLT, RUBBER

09106-06100-000 0910606100000

$9,97

Unit Price

CAP, PILLION FOOTREST BOLT
CAP

43576-24B00-000 4357624B00000

$7,97

Unit Price

CUSHION, FR FOOTREST
CUSHION, FRONT FOOTREST

43570-24B01-000 4357024B01000

$12,97

Unit Price

WASHER, FR FOOTREST, R
WASHER, FRONT FOOTREST RH

43470-24B00-000 4347024B00000

$11,97

Unit Price

WASHER, FR FOOTREST, L
WASHER, FRONT FOOTREST LH

43480-24B00-000 4348024B00000

$11,97

Unit Price

FOOTREST ASSY, PILLION, R
FOOTREST ASSY, PILLION RH

43600-24B00-000 4360024B00000

$153,97

Unit Price

FOOTREST ASSY, PILLION, L
FOOTREST ASSY, PILLION LH

43700-24B00-000 4370024B00000

$188,97

Unit Price

BAR, PILLION FOOTREST, R
BAR, PILLION FOOTREST RH

43610-24B01-000 4361024B01000

$38,97

Unit Price

BAR, PILLION FOOTREST, L
BAR, PILLION FOOTREST LH

43710-24B01-000 4371024B01000

$45,97

Unit Price

RUBBER, PILLION FOOTREST

43651-24B00-000 4365124B00000

$17,97

Unit Price

HOLDER, PILLION FOOTREST

43621-24B10-000 4362124B10000

$72,97

Unit Price

BOLT
BOLT, RUBBER

09106-06100-000 0910606100000

$9,97

Unit Price

WASHER, FR FOOTREST, R
WASHER, RH

43570-38A00-000 4357038A00000

$8,97

Unit Price

WASHER, FR FOOTREST, L
WASHER, LH

43580-38A00-000 4358038A00000

$15,97

Unit Price

CAP, PILLION FOOTREST BOLT
CAP, BOLT

43576-24B00-000 4357624B00000

$7,97

Unit Price

WASHER, PILLION FOOTREST HOLDER
WASHER, HOLDER

43622-24B00-000 4362224B00000

$3,97

Unit Price

BOLT

07130-10453-000 0713010453000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of BOULEVARD. Let us know if you have any questions.
