CRANKCASE COVER

CRANKSHAFT FOR SUZUKI BOULEVARD 650 2002

CRANK BALANCER

Item numbers

CRANKSHAFT ASSY

12200-24B05-000 1220024B05000

$1 011,97

Unit Price

ROD, CONNECTING

12161-24B01-0C0 1216124B010C0

$152,97

Unit Price

PIN, CRANK

12210-24B01-0A0 1221024B010A0

$56,97

Unit Price

BEARING (37X47X25)

09263-37004-0B0 09263370040B0

$69,97

Unit Price

WASHER 37X55X1
WASHER

09160-37006-000 0916037006000

$14,97

Unit Price

CRANKSHAFT, R
CRANKSHAFT, RH

12221-24B02-000 1222124B02000

$329,97

Unit Price

CRANKSHAFT, L
CRANKSHAFT, LH

12261-24B02-000 1226124B02000

$349,97

Unit Price

BEARING 35X72X17
BEARING, RH (35X72X17)

09262-35038-000 0926235038000

$68,97

Unit Price

BEARING(40X80X18)
BEARING, LH (40X80X18)

09264-40002-000 0926440002000

$173,97

Unit Price

CR SHAFT OIL SEAL
OIL SEAL, RH (16X30X6)

09282-16002-000 0928216002000

$16,97

Unit Price

RETAINER, CRANKSHAFT OIL SEAL, R
PLATE, RH

12548-24B00-000 1254824B00000

$3,97

Unit Price

BOLT

01500-05083-000 0150005083000

Not available

GEAR, CRANK BALANCER DRIVE
GEAR, BALANCER DRIVE

12661-24B00-000 1266124B00000

$136,97

Unit Price

04221-08149-000 0422108149000

$3,97

Unit Price

SPROCKET, CAM CHAIN DRIVE

12731-24B00-000 1273124B00000

$73,97

Unit Price

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:37)

21111-24B10-000 2111124B10000

$110,97

Unit Price

NUT CLUTCH SHOE

09140-20008-000

09140-20013-000

$7,97

Unit Price

LOCK WASHER

09164-20003-000 0916420003000

$5,97

Unit Price

PISTON

12111-24B01-000

12111-24B01-0F0

$162,97

Unit Price

RING SET, PISTON

12140-14A31-000

12140-14A32-000

$95,97

Unit Price

PIN, PISTON

12151-14A01-000 1215114A01000

$22,97

Unit Price

CIRCLIP

09381-23003-000 0938123003000

$2,97

Unit Price

PISTON SET (OS:0.5)

12100-24B00-050 1210024B00050

$239,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

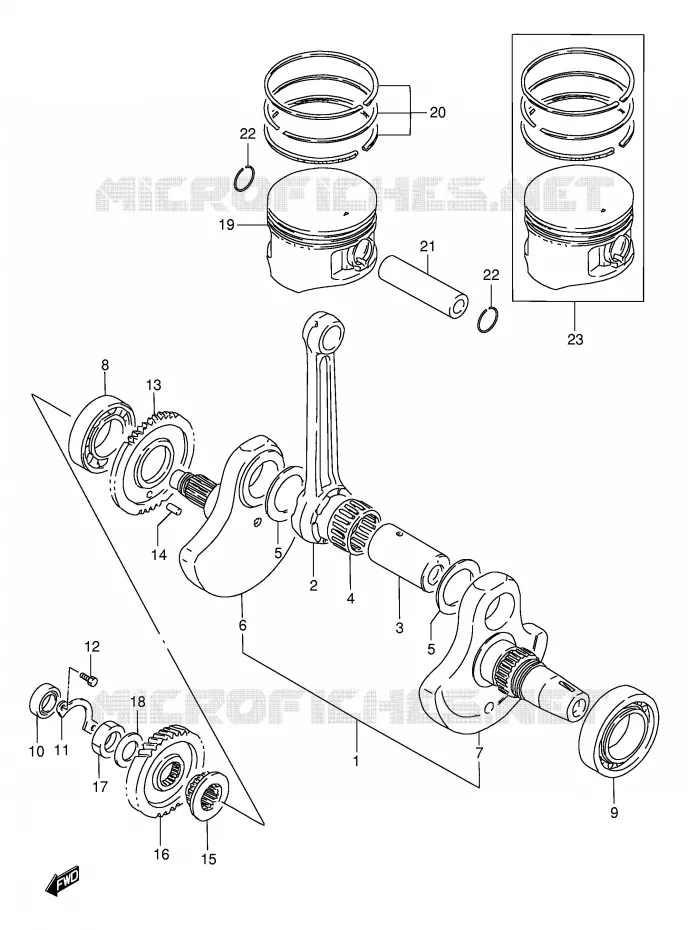

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of BOULEVARD. Let us know if you have any questions.
