MUFFLER

OIL PUMP FOR SUZUKI BOULEVARD 650 2005

CLUTCH

Item numbers

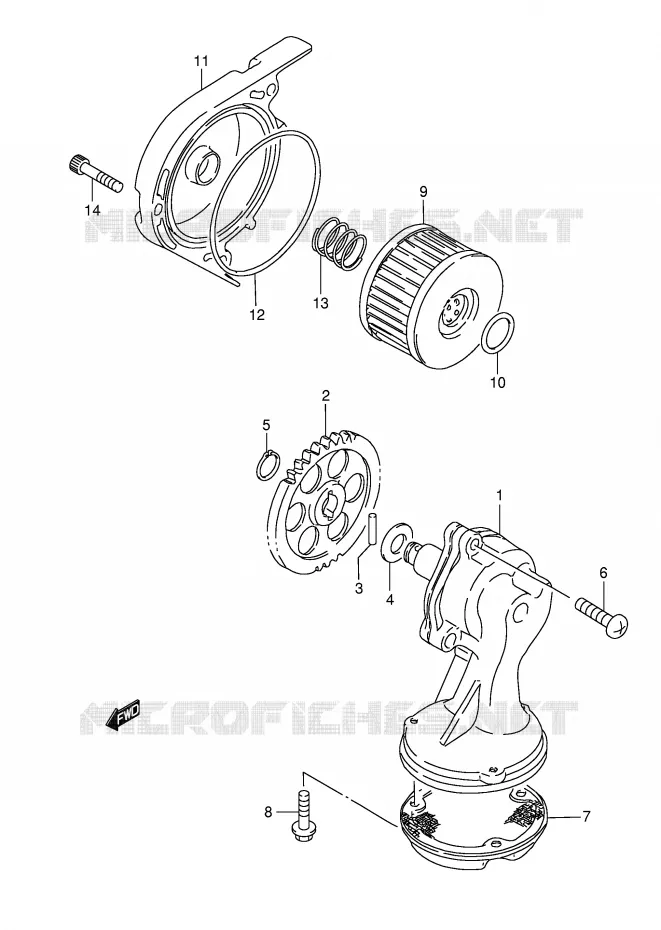

OIL PUMP Suzuki MOTO 650 BOULEVARD 2005 LS650K5(E3/E28)

1

PUMP ASSY, ENGINE OIL
PUMP, ENGINE OIL

16400-24B00-000 1640024B00000

$155,97

Unit Price

2

GEAR, ENG OIL PUMP DRIVEN
GEAR, DRIVEN (NT:35)

16331-24B00-000 1633124B00000

$62,97

Unit Price

3

GR SHIFT CAM DR PIN
PIN

09261-04009-000 0926104009000

$2,97

Unit Price

4

SHIM, 10X18X0.5
WASHER

09181-10158-000 0918110158000

$3,97

Unit Price

5

CIRCLIP

08331-31106-000

08331-31109-000

$2,97

Unit Price

6

SCREW

02112-0625B-000 021120625B000

$3,97

Unit Price

7

STRAINER, ENGINE OIL

16520-24B00-000 1652024B00000

$18,97

Unit Price

8

BOLT

01580-0512A-000 015800512A000

$3,97

Unit Price

9

FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-37450-000 1651037450000

$10,45

Unit Price

10

O RING (D:2.4, ID:15.8)

09280-15007-000 0928015007000

Not available

11

CAP, OIL FILTER

16512-24B00-000 1651224B00000

$77,97

Unit Price

12

O RING OIL FLT CAP
O RING (D:2.4, ID:73.0)

09280-72001-000 0928072001000

Not available

13

SPRING

09440-21006-000 0944021006000

$3,97

Unit Price

14

BOLT, CL COVER 1ST GR
BOLT

09106-06090-000 0910606090000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of BOULEVARD. Let us know if you have any questions.
