CYLINDER

CRANKCASE FOR SUZUKI BOULEVARD 650 2006

CRANKCASE COVER

Item numbers

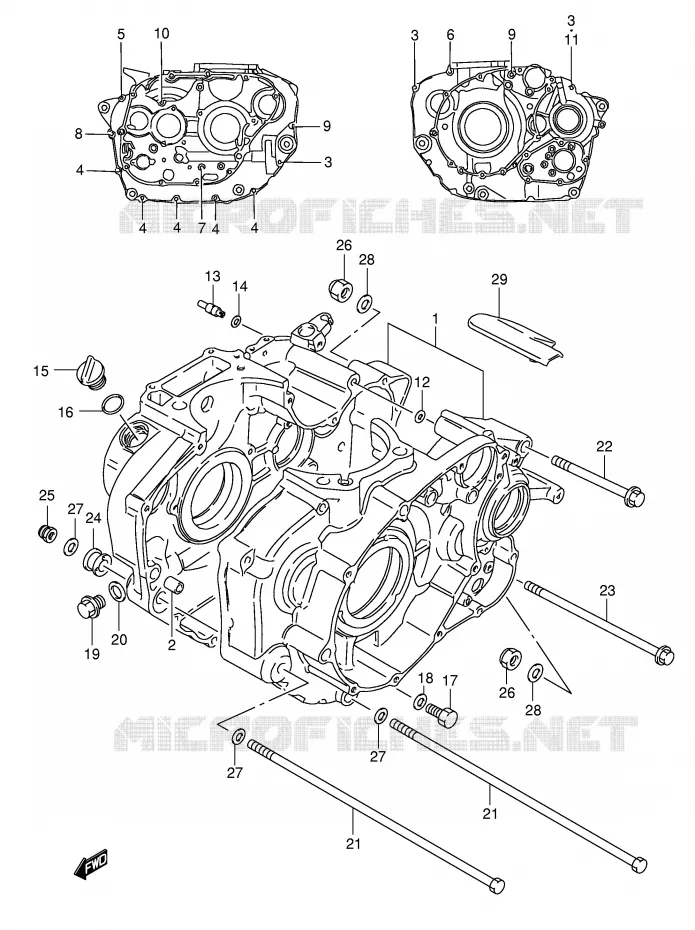

CRANKCASE Suzuki MOTO 650 BOULEVARD 2006 LS650K6(E3/E28)
1
2
3
3
3
4
4
4
4
4
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
27
27
28
28
29
1
CRANKCASE SET

11302-24852-000   1130224852000

1130224852000

Unit Price

2
PIN, CRANKCASE
PIN

09206-11007-000   0920611007000

0920611007000

Unit Price

3
BOLT
BOLT

01547-0640B-000   015470640B000

015470640B000

Unit Price

4
BOLT
BOLT

01547-0645B-000   015470645B000

015470645B000

Unit Price

5
BOLT, SPROCKET, COV L5
BOLT

09103-06216-000   0910306216000

0910306216000

Unit Price

6
BOLT

01547-0660B-000   015470660B000

015470660B000

Unit Price

7
BOLT
BOLT

01547-0665B-000   015470665B000

015470665B000

Unit Price

8
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

9
BOLT
BOLT

01547-0670B-000   015470670B000

015470670B000

Unit Price

10
BOLT

01547-0675B-000   015470675B000

015470675B000

Unit Price

11
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
12
O RING (D:2.4, ID:9.6)

09280-10013-000   0928010013000

0928010013000

Unit Price

13
JET, OIL GALLERY(18)
JET, OIL GALLERY

09493-36004-000   0949336004000

0949336004000

Unit Price

14
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

15
PLUG

09259-20008-000  

09259-20008-XC0
 0925920008000

Unit Price

15
PLUG,ENGINE OIL FILLER<br />PLUG, OIL FILLER
PLUG, ENGINE OIL FILLER
PLUG, OIL FILLER

11971-25D00-000   1197125D00000

1197125D00000

Unit Price

16
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

17
PLUG, OIL DRAIN

09247-12011-000   0924712011000

0924712011000

Unit Price

18
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
19
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

20
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

21
BOLT (10X323)

09104-10034-000   0910410034000

0910410034000

Unit Price

22
BOLT
BOLT (10X105)

09103-10087-000   0910310087000

0910310087000

Unit Price

23
BOLT (10X180)

09103-10053-000   0910310053000

0910310053000

Unit Price

24
SPACER,ENGINE MOUNT(L20)<br />SPACER
SPACER, ENGINE MOUNT(L20)
SPACER

11610-38400-000   1161038400000

1161038400000

Unit Price

25
NUT

09159-10064-000   0915910064000

0915910064000

Unit Price

26
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

27
WASHER
WASHER

08322-01107-000   0832201107000

0832201107000

Unit Price

28
WASHER
WASHER

08322-0110B-000   083220110B000

083220110B000

Unit Price

29
COVER, CRANKCASE START MOT
COVER, CRANKCASE

11384-24B01-000   1138424B01000

1138424B01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of BOULEVARD. Let us know if you have any questions.
