CARBURETOR FOR SUZUKI BOULEVARD 650 2010

AIR FILTER

Item numbers

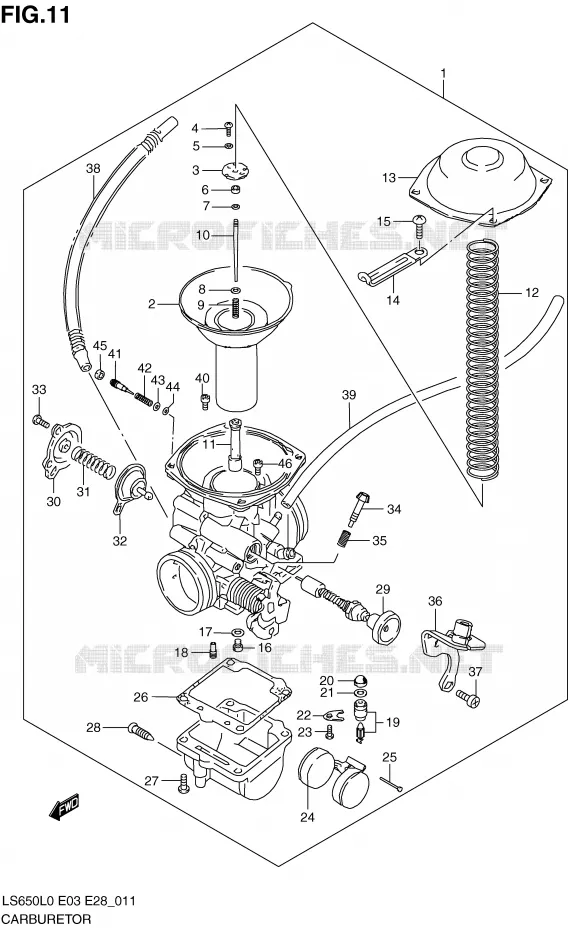

CARBURETOR Suzuki MOTO 650 BOULEVARD 2010 LS650L0(E3/E28)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
13200-24C42
CARBURETOR ASSY

13200-24C41-000   1320024C41000

1320024C41000
Not available
1
DISCONTINUE
CARBURETOR ASSY

13200-24C51-000   1320024C51000

1320024C51000
Not available
2
DIAPHRAGM ASSY

13500-24B40-000  

13500-24B41-000
 1350024B40000

Unit Price

3
PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

4
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

5
WASHER, LOCK
LOCK WASHER

08321-2103B-000   083212103B000

083212103B000

Unit Price

6
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

7
CLIP,NEEDLE<br />E RING
CLIP, NEEDLE
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

8
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

9
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

10
NEEDLE, JET(5C17)
NEEDLE, JET (5C39)

13383-24C40-000   1338324C40000

1338324C40000

Unit Price

11
JET, NEEDLE (X-7M)

09494-00861-000   0949400861000

0949400861000

Unit Price

12
SPRING

13503-24B00-000   1350324B00000

1350324B00000

Unit Price

13
COVER

13502-37400-000   1350237400000

1350237400000

Unit Price

14
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

15
SCREW
SCREW

02112-0510B-000   021120510B000

021120510B000

Unit Price

16
JET, MAIN (145)

09491-29013-000   0949129013000

0949129013000

Unit Price

17
WASHER
WASHER

13382-03110-000   1338203110000

1338203110000

Unit Price

18
JET, PILOT (52.5)

09492-52010-000   0949252010000

0949252010000

Unit Price

19
VALVE ASSY, NEEDLE

13370-24C80-000   1337024C80000

1337024C80000

Unit Price

20
FILTER
FILTER

13376-19F00-000   1337619F00000

1337619F00000

Unit Price

21
O RING,NEEDLE VALVE SEAT<br />O RING
O RING, NEEDLE VALVE SEAT
O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

22
PLATE
PLATE

13373-39110-000   1337339110000

1337339110000

Unit Price

23
SCREW

02112-04063-000  

02112-0406B-000
 0211204063000

Unit Price

24
FLOAT

13250-37400-000   1325037400000

1325037400000

Unit Price

25
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

26
GASKET, FLOAT CHAMBER

13251-38300-000  

13251-37101-000
 1325138300000

Unit Price

27
SCREW
SCREW

02112-0516B-000   021120516B000

021120516B000

Unit Price

28
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

29
PLUNGER ASSY

13411-24C00-000   1341124C00000

1341124C00000

Unit Price

30
COVER

13484-38A10-000   1348438A10000

1348438A10000

Unit Price

31
SPRING

13481-24B00-000   1348124B00000

1348124B00000

Unit Price

32
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

33
SCREW

02112-0410B-000   021120410B000

021120410B000

Unit Price

34
ADJUSTER

13267-25D00-000   1326725D00000

1326725D00000

Unit Price

35
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

36
BRACKET ASSY
BRACKET

13621-24B01-000   1362124B01000

1362124B01000

Unit Price

37
SCREW
SCREW

02112-0510B-000   021120510B000

021120510B000

Unit Price

38
HOSE ASSY

13318-24C00-000  

13318-24C01-000
 1331824C00000

Unit Price

39
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

40
JET, PILOT AIR NO.2 (230)

09491-46005-000   0949146005000

0949146005000
Not available
41
SCREW, AIR
SCREW, PILOT (1, 1/8)

13269-37400-000   1326937400000

1326937400000

Unit Price

42
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

43
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

44
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

45
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

46
JET, PILOT AIR (45)
JET, PILOT AIR (45)

09491-45002-000   0949145002000

0949145002000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of BOULEVARD. Let us know if you have any questions.
