GASKET SET

CYLINDER HEAD FOR SUZUKI BOULEVARD 650 2012

CYLINDER

Item numbers

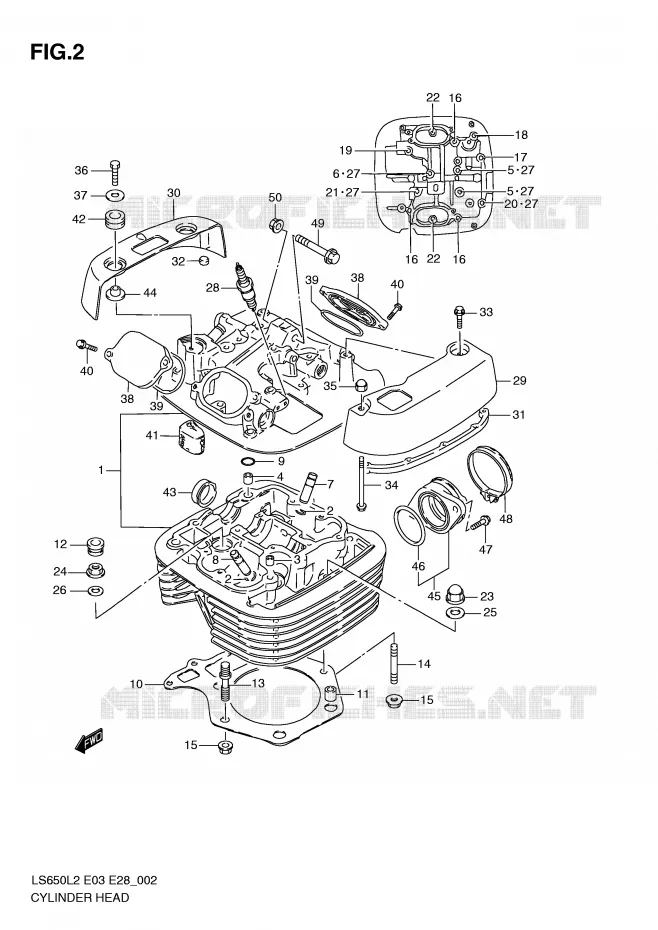

CYLINDER HEAD Suzuki MOTO 650 BOULEVARD 2012 LS650L2(E03)
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
16
16
17
18
19
20
21
22
22
23
24
25
26
27
27
27
27
27
28
28
28
29
30
31
32
33
34
35
36
37
38
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
1
DISCONTINUE
HEAD ASSY, CYLINDER

11100-24B20-000   1110024B20000

1110024B20000
Not available
2
RING,SNAP<br />CIRCLIP
RING, SNAP
CIRCLIP

09381-10003-000   0938110003000

0938110003000

Unit Price

3
PIN(8X11)<br />PIN (6.2X8X11)
PIN(8X11)
PIN (6.2X8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

4
PIN, L:14
PIN (8.4X11X14)

09206-11004-000   0920611004000

0920611004000

Unit Price

5
BOLT (6X60)

09103-06064-000   0910306064000

0910306064000

Unit Price

6
BOLT (6X70)
BOLT (6X70)

09103-06103-000   0910306103000

0910306103000

Unit Price

7
GUIDE, VALVE
GUIDE, VALVE IN (OS:0.3)

11115-44B70-000   1111544B70000

1111544B70000

Unit Price

8
GUIDE, VALVE
GUIDE, VALVE EX (OS:0.3)

11115-37470-000   1111537470000

1111537470000

Unit Price

9
O RING, CYL HEAD COVER
O RING, CYLINDER HEAD COVER

11178-24B00-000   1117824B00000

1117824B00000

Unit Price

10
GASKET, CYLINDER HEAD

11141-24B03-000   1114124B03000

1114124B03000

Unit Price

11
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

12
CAP, CYLINDER HEAD SEAL

11145-37401-000  

11145-41B01-000
 1114537401000

Unit Price

13
BOLT, STUD
STUD BOLT

09108-08205-000   0910808205000

0910808205000

Unit Price

14
BOLT, STUD(8X31)
STUD BOLT (8X31)

09108-08206-000   0910808206000

0910808206000

Unit Price

15
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

16
CAM SFT HOUSING BOLT<br />BOLT (6X39)
CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price

17
BOLT CYL HEAD COVER
BOLT (6X125)

09103-06033-000   0910306033000

0910306033000

Unit Price

18
BOLT (6X115)

09103-06052-000   0910306052000

0910306052000

Unit Price

19
BOLT (6X60)

09103-06064-000   0910306064000

0910306064000

Unit Price

20
BOLT (6X130)

09103-06085-000   0910306085000

0910306085000

Unit Price

21
BOLT (6X55)

09103-06102-000   0910306102000

0910306102000

Unit Price

22
BOLT
BOLT

01550-0625A-000   015500625A000

015500625A000

Unit Price

23
NUT

09159-09003-000   0915909003000

0915909003000

Unit Price

24
NUT

09159-09004-000   0915909004000

0915909004000

Unit Price

25
GASKET (10.2X20X2.3)
GASKET (10.2X20X2.3)

09168-10031-000   0916810031000

0916810031000

Unit Price

26
GASKET (10.2X20X2.3)
GASKET (10.2X20X2.3)

09168-10031-000   0916810031000

0916810031000

Unit Price

27
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
28
PLUG, SPARK(X24EPR-U9)
SPARK PLUG (DENSO, X24EPR-U9)

09482-00335-000   0948200335000

0948200335000

Unit Price

28
DPR7EA-9, NGK
SPARK PLUG (NGK, DPR7EA-9)

09482-00354-000   0948200354000

0948200354000

Unit Price

28
DPR8EA-9, NGK
SPARK PLUG (NGK, DPR8EA-9)

09482-00334-000   0948200334000

0948200334000

Unit Price

29
CAP, HEAD COVER, L
CAP, HEAD COVER LH

11171-24B04-000   1117124B04000

1117124B04000

Unit Price

30
CAP, CYLINDER HEAD COVER, R
CAP, HEAD COVER RH

11172-24B04-000   1117224B04000

1117224B04000

Unit Price

31
CUSHION, HEAD COVER CAP, L
CUSHION, LH CAP

11272-24B01-000   1127224B01000

1127224B01000

Unit Price

32
CUSHION, R CAP
CUSHION, RH CAP

11273-24B00-000   1127324B00000

1127324B00000

Unit Price

33
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

34
BOLT

01550-0665A-000   015500665A000

015500665A000

Unit Price

35
NUT
NUT

08313-2006A-000   083132006A000

083132006A000

Unit Price

36
BOLT

01500-0625A-000  

01500-0625B-000
 015000625A000

Unit Price

37
WASHER (6.5X24X1.6)
WASHER (6.5X24X1.6)

09160-06134-000   0916006134000

0916006134000

Unit Price

38
CAP, INSPECTION

11175-24B20-000   1117524B20000

1117524B20000
Not available
39
O RING, CAP
O RING (D:2.4, ID:23)

09280-60004-000   0928060004000

0928060004000

Unit Price

40
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

41
SEPARATOR, OIL BREATHER COVER
SEPARATOR, OIL BRTHR COVER

11186-24B02-000   1118624B02000

1118624B02000

Unit Price

42
CUSHION

09320-13015-000   0932013015000

0932013015000

Unit Price

43
PLUG
PLUG (OD:30)

09241-30008-000   0924130008000

0924130008000

Unit Price

44
BUSH

09301-06007-000   0930106007000

0930106007000

Unit Price

45
PIPE ASSY, INTAKE
PIPE, INTAKE

13101-14A10-000   1310114A10000

1310114A10000
46
O RING
O RING (D:2.4, ID:45.7)

09280-46002-000   0928046002000

0928046002000

Unit Price

47
SCREW

02112-1620B-000   021121620B000

021121620B000

Unit Price

48
CLAMP

09402-58208-000   0940258208000

0940258208000

Unit Price

49
BOLT (8X55)
BOLT (8X55)

09103-08339-000   0910308339000

0910308339000

Unit Price

50
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 650 BOULEVARD 2012
