TIMING

CARBURETOR FOR SUZUKI DR 650 1990

AIR FILTER

Item numbers

SCREW

13604-07D00-000

13604-44080-000

$6,97

Unit Price

VALVE, THROTTLE (110)

13551-12D00-000 1355112D00000

Not available

SPRING

13417-12D00-000 1341712D00000

$9,97

Unit Price

DISCONTINUE
VALVE, PISTON

13501-12D00-000 1350112D00000

Not available

DIAPHRAGM

13507-07D00-000

13507-07D02-000

$39,97

Unit Price

SHAFT ASSY, THROTTLE

13550-12D00-000 1355012D00000

Not available

RING

13557-05A20-000 1355705A20000

Not available

SPRING

13573-12D00-000 1357312D00000

Not available

COVER, DIAPHRAGM

13502-12D00-000 1350212D00000

Not available

COVER, DIAPHRAGM

13502-12D10-000 1350212D10000

Not available

JET, AIR(1.3)
JET, PILOT AIR (1.3)

09493-26004-000 0949326004000

$27,97

Unit Price

PLUNGER

13411-12D00-000 1341112D00000

$26,97

Unit Price

SPRING

13417-22010-000 1341722010000

$5,97

Unit Price

HOLDER, GUIDE

13418-43410-000 1341843410000

$10,97

Unit Price

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

$12,97

Unit Price

JET, NEEDLE (X-9)

09494-00678-000 0949400678000

Not available

JET, NEEDLE (X-9)

09494-00706-000 0949400706000

Not available

RING

13331-07D00-000 1333107D00000

$8,97

Unit Price

JET, MAIN (150)

09491-30004-000

09491-30016-000

$29,97

Unit Price

CAP, DRAIN
PLUG, DRAIN

13247-32210-000 1324732210000

$20,97

Unit Price

O RING, DRAIN PLUG
O RING, DRAIN

13249-41310-000 1324941310000

$10,97

Unit Price

DISCONTINUE

13250-44C00-000

Not available

O RING

13374-46710-000 1337446710000

$6,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

HOSE (6.5X10.5X475)

13683-12D00-000 1368312D00000

Not available

SCREW

13602-34390-000

02112-75163-000

$3,97

Unit Price

RING

13331-12D00-000 1333112D00000

$8,97

Unit Price

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

RING

13387-07D00-000 1338707D00000

$8,97

Unit Price

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

NEEDLE, JET (6H11-3)

13383-12D00-000 1338312D00000

Not available

NEEDLE, JET (6I04-3)

13383-12D10-000 1338312D10000

Not available

NEEDLE, JET (6H13-3)

13383-12D20-000 1338312D20000

Not available

FILTER

13236-12C00-000 1323612C00000

$15,97

Unit Price

PLUG, DRAIN
SCREW, DRAIN

13247-02340-000 1324702340000

$8,97

Unit Price

JET, PILOT
JET, PILOT (45)

09492-45016-000 0949245016000

$20,97

Unit Price

JET, PILOT
JET, PILOT (47.5)

09492-47013-000 0949247013000

$20,97

Unit Price

WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

SPRING

13375-60A00-000 1337560A00000

$14,97

Unit Price

DISCONTINUE

13267-28A00-000

Not available

SCREW(5X14)

13602-05129-000

13601-05148-000

$4,97

Unit Price

SCREW, PILOT
SCREW, PILOT (1 1/2)

13279-47070-000 1327947070000

$19,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

SEAL

13556-44B00-000 1355644B00000

$7,97

Unit Price

GASKET, THROTTLE SHAFT
WASHER

13557-47070-000 1355747070000

$7,97

Unit Price

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

O RING

13278-02340-000 1327802340000

$3,97

Unit Price

CLAMP(L:65)

09404-06402-000

09404-06039-000

$3,97

Unit Price

99x

CARBURETOR ASSY

13200-12D00-000 1320012D00000

Not available

99x

CARBURETOR ASSY

13200-12D10-000 1320012D10000

Not available

99x

CARBURETOR ASSY

13200-12D20-000 1320012D20000

Not available

99x

CARBURETOR ASSY

13200-12D30-000 1320012D30000

Not available

99x

CARBURETOR ASSY

13200-12D40-000 1320012D40000

Not available

99x

CARBURETOR ASSY

13200-12D50-000 1320012D50000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

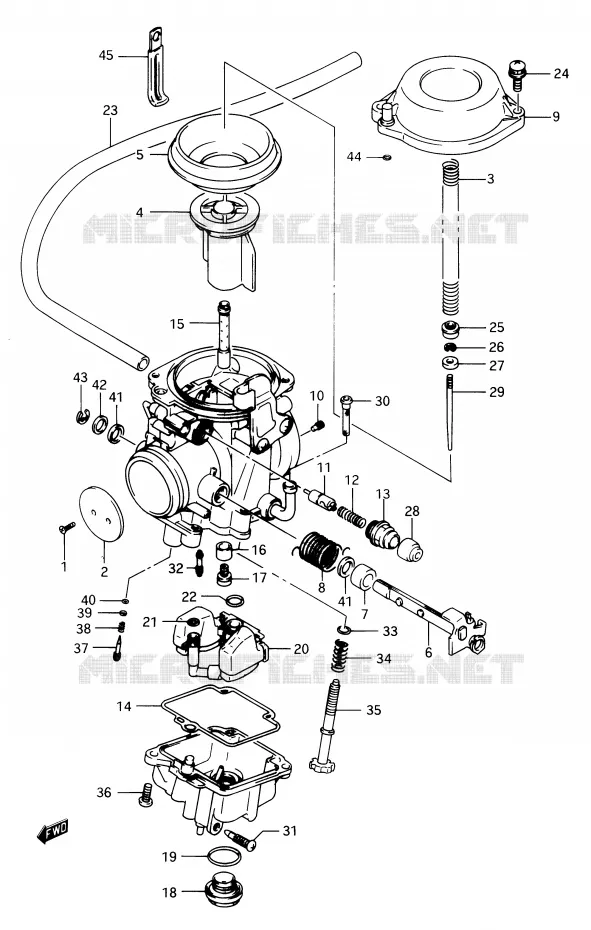

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki DR 650 RS of DR. Let us know if you have any questions.
