MUFFLER FOR SUZUKI DR 650 1990

OIL PUMP

PIPE, EXHAUST

14150-12D00-000 1415012D00000

Not available

PIPE, EXHAUST

14150-12D01-000 1415012D01000

Not available

GASKET, EXHAUST PIPE
GASKET, EXHAUST PIPE (NA)

14181-01D00-000 1418101D00000

$12,97

Unit Price

BOLT, STUD

01421-08205-000

01421-0820B-000

$3,97

Unit Price

STUD BOLT, CYLINDER
REORDER ROBINSONS

09108-08106-000 0910808106000

$4,97

Unit Price

NUT

08319-31085-000

08319-3108A-000

$3,97

Unit Price

DISCONTINUE
COVER, EXHAUST PIPE

14180-12D00-000 1418012D00000

Not available

SCREW(6X10)
BOLT (6X10)

09139-06076-000 0913906076000

$3,97

Unit Price

CHAIN CASE RR WASHER
WASHER (6.5X18X1)

09160-06056-000 0916006056000

$2,97

Unit Price

GASKET(5.8X13X1.4)
GASKET (5.8X13X1.4, NA)

09168-06120-000 0916806120000

$4,97

Unit Price

GASKET
GASKET (6X16X1.4, NA)

09168-06122-000

Not available

MUFFLER ASSY, RH

14305-12D00-000 1430512D00000

Not available

MUFFLER ASSY, RH

14305-12D40-000 1430512D40000

Not available

MUFFLER ASSY, LH

14306-12D00-000 1430612D00000

Not available

MUFFLER ASSY, LH

14306-12D40-000 1430612D40000

Not available

CONNECTOR (NA)

14771-12D00-000 1477112D00000

Not available

DISCONTINUE
CONNECTOR (NA)

14771-48B01-000 1477148B01000

Not available

CLAMP, MUFFLER CONNECTOR RH

14459-32C00-000 1445932C00000

Not available

CLAMP, MUFFLER CONNECTOR LH

14469-32C00-000 1446932C00000

Not available

BOLT

01517-08355-000

01550-0835B-000

$5,97

Unit Price

BOLT(8X38)

09118-08127-000

Not available

BOLT (8X40)

09118-08144-000 0911808144000

Not available

BOLT (8X20)

09103-08266-000 0910308266000

$4,97

Unit Price

BOLT
BOLT (8X20)

09103-08286-000 0910308286000

$6,97

Unit Price

CUSHION

09320-12043-000 0932012043000

$11,97

Unit Price

SPACER

09180-08151-000 0918008151000

$8,97

Unit Price

WASHER(8.5X19X2.3)

09160-08053-000

09160-08039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

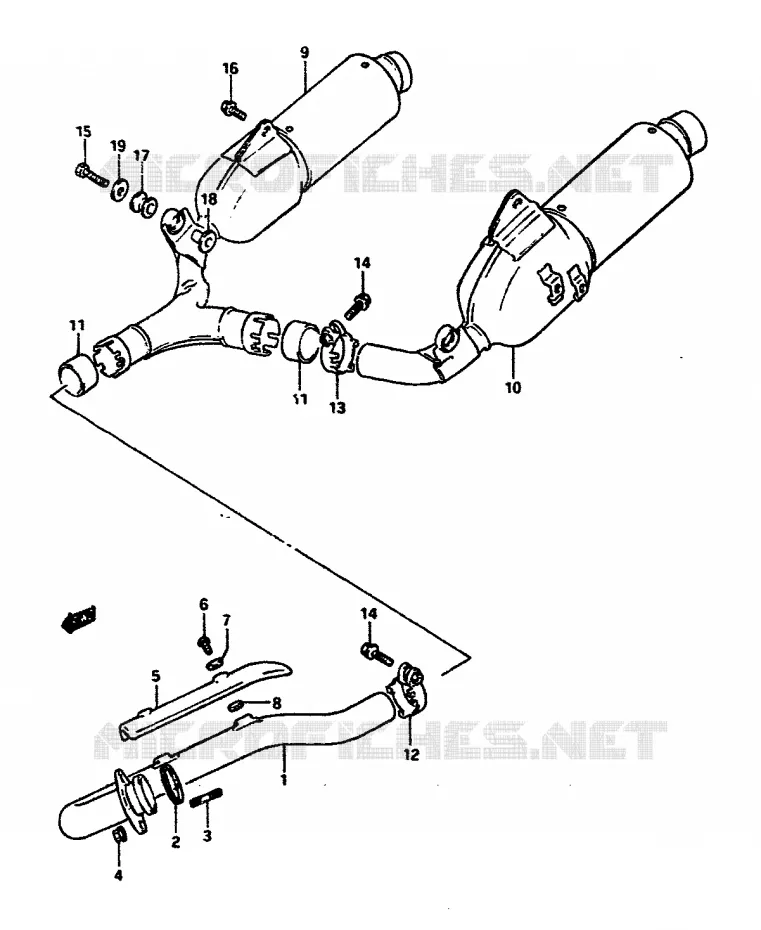

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the MUFFLER of your Suzuki DR 650 RS of DR. Let us know if you have any questions.
