TAIL LIGHT FOR SUZUKI DR 650 1991

WIRING HARNESS

Item numbers

LAMP ASSY, REAR COMBINATION

35710-14A50-000 3571014A50000

Not available

LAMP ASSY, REAR COMBINATION

35710-14A51-000 3571014A51000

Not available

DISCONTINUE
LENS

35712-14A00-000 3571214A00000

Not available

.GASKET

35713-14A00-000 3571314A00000

Not available

SCREW

03211-04258-000

03211-0425B-000

$3,97

Unit Price

GASKET

35627-43010-000 3562743010000

$2,97

Unit Price

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

GASKET

35733-14A00-000 3573314A00000

Not available

CUSHION

09320-09018-000 0932009018000

$2,97

Unit Price

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

WASHER 6.5X10X1.2

09160-06027-000

09160-06077-000

$2,97

Unit Price

08310-0006A
.NUT 6MM

08310-12066-000

Not available

BRACKET, TAIL LAMP

35726-14A00-000 3572614A00000

Not available

BOLT

01134-06126-000

01500-06127-000

$3,97

Unit Price

LAMP ASSY, LICENSE

35910-03D20-000 3591003D20000

Not available

LENS

35912-38A20-000 3591238A20000

Not available

GASKET, LICENSE LAMP
GASKET

35913-38A30-000 3591338A30000

$4,97

Unit Price

BULB(12V10W)
BULB

09471-12140-000

Not available

REFLECTOR

35917-03D20-000 3591703D20000

Not available

NUT

09140-04002-000 0914004002000

Not available

WASHER

09160-04018-000 0916004018000

Not available

RR COMB LAMP CUSHION
CUSHION

09320-09009-000 0932009009000

$7,97

Unit Price

SPACER

09180-04018-000 0918004018000

Not available

GROMMET, LEAD WIRE

09308-07013-000 0930807013000

Not available

BRACKET, LICENSE PLATE

35927-14C00-000 3592714C00000

Not available

SCREW

02142-06164-000

02142-0616A-000

$2,97

Unit Price

NUT 6MM

08316-16066-000

08319-31067-000

$3,97

Unit Price

CUSHION

09320-08052-000 0932008052000

Not available

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000

35950-14A11-000

$19,97

Unit Price

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

BRACKET, REAR REFLECTOR RH

35975-14C00-000 3597514C00000

Not available

BRACKET, REAR REFLECTOR LH

35976-14C00-000 3597614C00000

Not available

SCREW

02142-06104-000

02142-0610B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

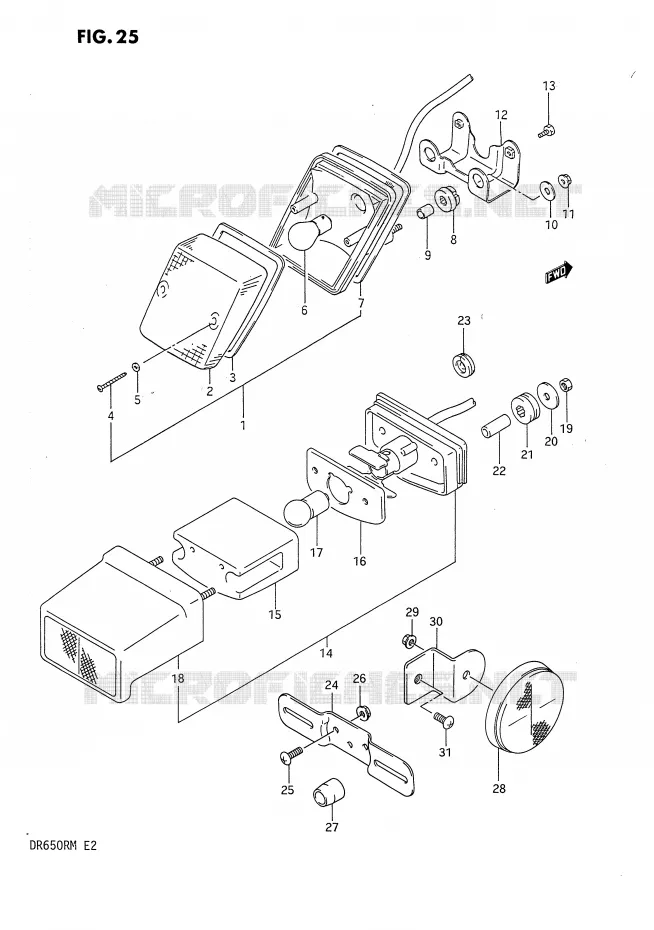

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki DR 650 DJEBEL of DR. Let us know if you have any questions.
