HEADLIGHT (MODEL S / T)

INDICATORS FOR SUZUKI DR 650 1991

TAIL LIGHT (MODEL M / N / P / R / S) REFER TO FIG.27A(E-9) FOR MODEL T

Item numbers

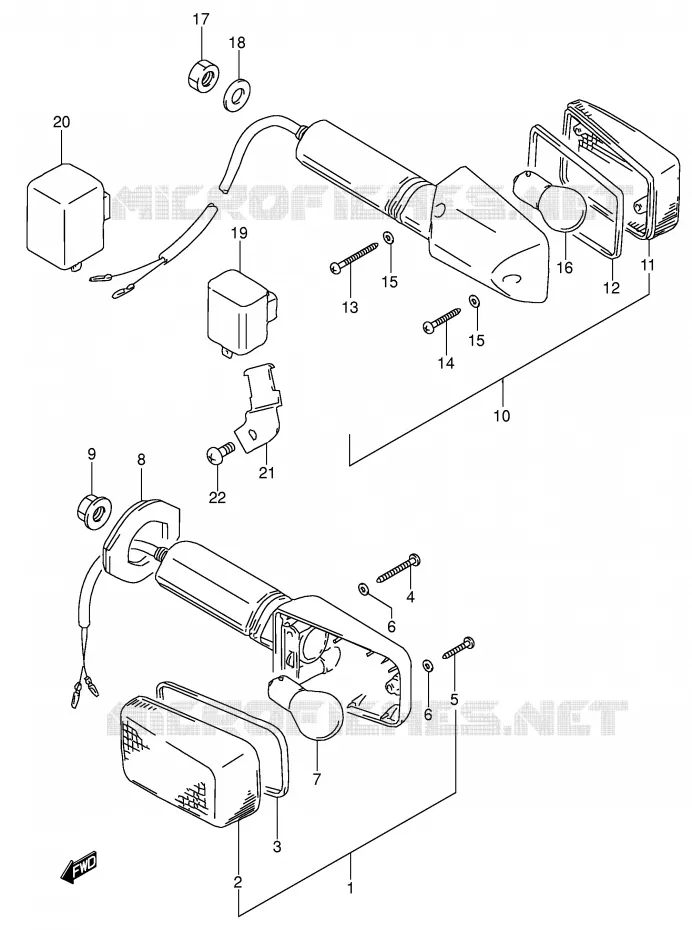

INDICATORS Suzuki MOTO 650 DR 1991 DR650RSEM(E4)
1
1
2
3
4
5
6
6
7
8
9
9
9
10
10
10
11
12
13
14
15
15
16
17
17
17
18
19
20
20
20
21
22
1
LAMP ASSY,FR TURN SIGNAL<br />LAMP ASSY, FRONT TURNSIGNAL
LAMP ASSY, FR TURN SIGNAL
LAMP ASSY, FRONT TURNSIGNAL

35601-29EC0-000   3560129EC0000

3560129EC0000

Unit Price

1
DISCONTINUE<br />LAMP ASSY, FRONT TURNSIGNAL
DISCONTINUE
LAMP ASSY, FRONT TURNSIGNAL

35601-01D10-000   3560101D10000

3560101D10000
Not available
2
LENS
LENS

35612-17C20-000   3561217C20000

3561217C20000

Unit Price

3
GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

4
SCREW(3X30)<br />TAPPING SCREW
SCREW(3X30)
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

5
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

6
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price

7
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

8
GROMMET
GROMMET

35674-27A01-000   3567427A01000

3567427A01000

Unit Price

9
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

9
NUT

08316-20103-000  

08316-2010B-000
 0831620103000

Unit Price

9
NUT

08310-12105-000   0831012105000

0831012105000
Not available
10
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURNSIGNAL

35603-29E90-000   3560329E90000

3560329E90000

Unit Price

10
DISCONTINUE
LAMP ASSY, REAR TURNSIGNAL

35603-14D10-000   3560314D10000

3560314D10000
Not available
10
DISCONTINUE
LAMP ASSY, REAR TURNSIGNAL

35603-14D20-000   3560314D20000

3560314D20000
11
LENS
LENS

35652-17C20-000   3565217C20000

3565217C20000

Unit Price

12
GASKET
GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

13
SCREW(3X30)<br />TAPPING SCREW
SCREW(3X30)
TAPPING SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

14
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

15
GASKET
GASKET

35627-27A02-000   3562727A02000

3562727A02000

Unit Price

16
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

17
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

17
NUT

09140-10036-000   0914010036000

0914010036000
Not available
18
WASHER

08322-11104-000  

08322-0110B-000
 0832211104000

Unit Price

19
RELAY ASSY, TURNSIGNAL
RELAY ASSY, TURNSIGNAL

38610-31X50-000   3861031X50000

3861031X50000

Unit Price

20
RELAY ASSY, TURNSIGNAL LAMP

38610-45D00-000  

38610-45D01-000
 3861045D00000

Unit Price

20
RELAY ASSY, TURNSIGNAL

38610-45091-000   3861045091000

3861045091000
Not available
20
RELAY ASSY,TURNSIGNAL LAMP<br />RELAY ASSY, TURNSIGNAL
RELAY ASSY, TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL

38610-45D01-000   3861045D01000

3861045D01000

Unit Price

21
BRACKET, RELAY

38621-04A01-000   3862104A01000

3862104A01000
Not available
22
SCREW

02112-06083-000  

02112-0608A-000
 0211206083000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki DR 650 RSE of DR. Let us know if you have any questions.

Genuine parts for Suzuki 650 DR 1991
