Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER (MODEL N / P) FOR SUZUKI DR 650 1992

CRANKCASE COVER (MODEL R / S)

Item numbers

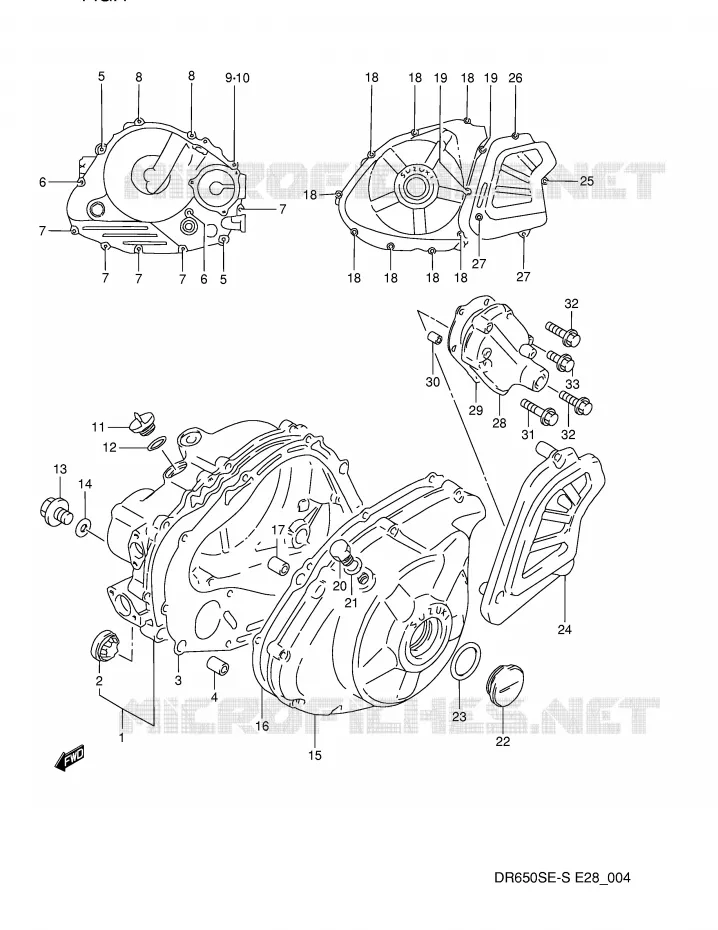

CRANKCASE COVER (MODEL N/P) Suzuki MOTO 650 DR 1992 DR650SN(E28)
1
2
3
4
5
5
6
6
7
7
7
7
7
8
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
19
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
32
33
1
COVER COMP, CLUTCH
COVER, CLUTCH

11340-12D30-000   1134012D30000

1134012D30000

Unit Price

2
LENS,OIL LEVEL CHECK<br />LENS, OIL LEVEL
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL

11971-33210-000   1197133210000

1197133210000

Unit Price

3
GASKET, CLUTCH COVER

11482-12D01-000   1148212D01000

1148212D01000

Unit Price

4
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

5
BOLT<br />BOLT (6X50)
BOLT
BOLT (6X50)

01547-06507-000   0154706507000

0154706507000

Unit Price

6
BOLT (6X40)
BOLT (6X40)

01547-06407-000   0154706407000

0154706407000

Unit Price

7
BOLT (6X35)
BOLT (6X35)

01547-06357-000   0154706357000

0154706357000

Unit Price

8
BOLT (6X25)
BOLT (6X25)

01547-06257-000   0154706257000

0154706257000

Unit Price

9
BOLT (6X25)

09103-06161-000   0910306161000

0910306161000
Not available
10
WASHER

08322-01067-000  

08322-0106A-000
 0832201067000

Unit Price

11
PLUG, 20 X 10
PLUG, OIL FILLER

09259-20019-000   0925920019000

0925920019000

Unit Price

12
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

13
PLUG<br />PLUG, OIL CHECK
PLUG
PLUG, OIL CHECK

09247-14026-000   0924714026000

0924714026000

Unit Price

14
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

15
DISCONTINUE
COVER, MAGNETO

11351-12D30-000   1135112D30000

1135112D30000
Not available
16
GASKET, MAGNETO COVER

11483-12D10-000   1148312D10000

1148312D10000

Unit Price

17
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

18
BOLT (6X30)
BOLT (6X30)

01547-06307-000   0154706307000

0154706307000

Unit Price

19
BOLT (6X25)
BOLT (6X25)

01547-06257-000   0154706257000

0154706257000

Unit Price

20
PLUG, T.D.C

09247-12104-000   0924712104000

0924712104000

Unit Price

21
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
22
PLUG, SHAFT HOLE

09259-36018-000  

09259-36016-20H
 0925936018000

Unit Price

23
O-RING,CRANK SHAFT<br />O RING
O-RING, CRANK SHAFT
O RING

09280-33004-000   0928033004000

0928033004000

Unit Price

24
COVER, ENGINE SPROCKET

11361-12D30-000   1136112D30000

1136112D30000

Unit Price

25
BOLT (6X45)
BOLT (6X45)

01547-06457-000   0154706457000

0154706457000

Unit Price

26
BOLT (6X35)
BOLT (6X35)

01547-06357-000   0154706357000

0154706357000

Unit Price

27
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

01547-06207-000   0154706207000

0154706207000

Unit Price

28
COVER, GEAR SHIFT

11371-12D30-000   1137112D30000

1137112D30000

Unit Price

29
GASKET, GEAR SHIFT COVER

11485-12D01-000   1148512D01000

1148512D01000

Unit Price

30
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

31
BOLT (6X35)
BOLT (6X35)

01547-06357-000   0154706357000

0154706357000

Unit Price

32
BOLT (6X30)
BOLT (6X30)

01547-06307-000   0154706307000

0154706307000

Unit Price

33
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

01547-06207-000   0154706207000

0154706207000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER (MODEL N/P) of your Suzuki DR 650 S of DR. Let us know if you have any questions.
