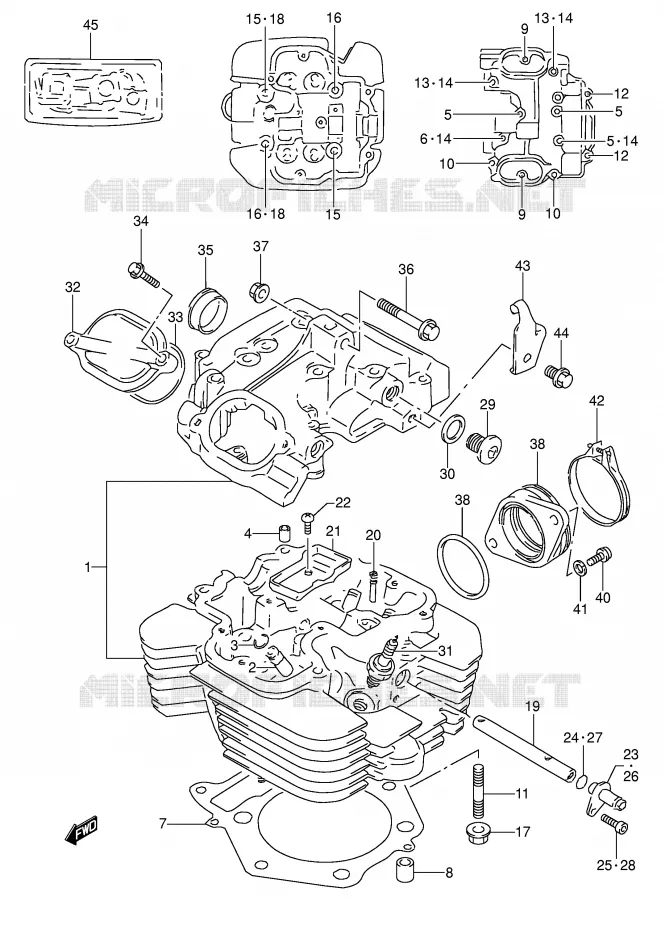

CYLINDER HEAD FOR SUZUKI DR 650 1993

CYLINDER

Item numbers

HEAD ASSY, CYLINDER

11100-12D40-000 1110012D40000

Not available

HEAD ASSY, CYLINDER

11100-12D50-000 1110012D50000

Not available

HEAD ASSY, CYLINDER

11100-12D80-000 1110012D80000

Not available

HEAD ASSY, CYLINDER

11100-12D90-000 1110012D90000

Not available

GUIDE, VALVE

11115-37470-000 1111537470000

$51,97

Unit Price

RING, SNAP
RING, VALVE GUIDE

09381-10003-000 0938110003000

$5,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01550-06603-000

01550-0660A-000

$4,97

Unit Price

BOLT (6X55)

09103-06040-000 0910306040000

Not available

DISCONTINUE
GASKET, CYLINDER HEAD

11141-12D00-000 1114112D00000

Not available

04211-13189-000 0421113189000

$3,97

Unit Price

BOLT

01550-06253-000

01550-0625A-000

$2,97

Unit Price

BOLT

01550-06403-000

01550-0640A-000

$3,97

Unit Price

BOLT STUD L:33
STUD BOLT

09108-08220-000 0910808220000

$5,97

Unit Price

BOLT (6X130)

09103-06085-000 0910306085000

$6,97

Unit Price

BOLT

01550-06603-000

01550-0660A-000

$4,97

Unit Price

GASKET
WASHER

09168-06023-000 0916806023000

Not available

BOLT
BOLT (10X190)

09103-10179-000 0910310179000

$25,97

Unit Price

BOLT (10X215)

09103-10181-000 0910310181000

Not available

NUT

08316-10083-000

08316-1008B-000

$3,97

Unit Price

GASKET

09168-10017-000 0916810017000

$4,97

Unit Price

DISCONTINUE
PIPE, HEAD OIL

11131-12D00-000 1113112D00000

Not available

SCREW

09134-06012-000 0913406012000

Not available

DISCONTINUE
PLATE, HEAD CHAMBER

11135-12D00-000 1113512D00000

Not available

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

DISCONTINUE

11190-12D00-000

Not available

O RING(D:1.3, ID:9.8)
O RING

09280-10009-000 0928010009000

$3,97

Unit Price

BOLT

07110-06105-000

07130-0610B-000

$4,97

Unit Price

DISCONTINUE
UNION, HEAD OIL

11190-12D01-000 1119012D01000

Not available

O RING, HEAD GASKET
O RING

11143-06B00-000 1114306B00000

$11,97

Unit Price

BOLT

07130-06163-000

07130-0616B-000

$5,97

Unit Price

PLUG

09248-14010-000 0924814010000

$9,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000 0916814002000

$2,97

Unit Price

DPR9EA-9, NGK
SPARK PLUG (NGK, DPR9EA-9)

09482-00330-000 0948200330000

$6,45

Unit Price

SPARK PLUG (ND, X27EPR-U9)

09482-00331-111 0948200331111

Not available

CAP, INSPECTION

11175-12D10-000 1117512D10000

Not available

O RING, CAP
O RING

09280-60004-000 0928060004000

$6,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000 0924130004000

$11,97

Unit Price

BOLT

09103-08290-000

09103-08332-000

$6,97

Unit Price

BOLT (8X50)

09103-08289-000 0910308289000

Not available

NUT

08319-31085-000

08319-3108A-000

$3,97

Unit Price

DISCONTINUE
PIPE, INTAKE

13110-12D00-000 1311012D00000

Not available

O RING

09280-46002-000 0928046002000

$17,97

Unit Price

BOLT

07120-06203-000

07120-0620B-000

$4,97

Unit Price

08321-0106A
LOCK WASHER

08321-01063-000

Not available

CLAMP

09402-58208-000 0940258208000

$8,97

Unit Price

DISCONTINUE
HOLDER, DECOMP CABLE

12944-12D00-000 1294412D00000

Not available

BOLT

09103-08283-000

09103-08570-000

$4,97

Unit Price

DISCONTINUE
GASKET SET

11401-12813-000 1140112813000

Not available

GASKET SET

11401-12820-000 1140112820000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 650 RSE of DR. Let us know if you have any questions.
