Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

* COLOR CHART *

CYLINDER HEAD FOR SUZUKI DR 650 1994

CYLINDER

Item numbers

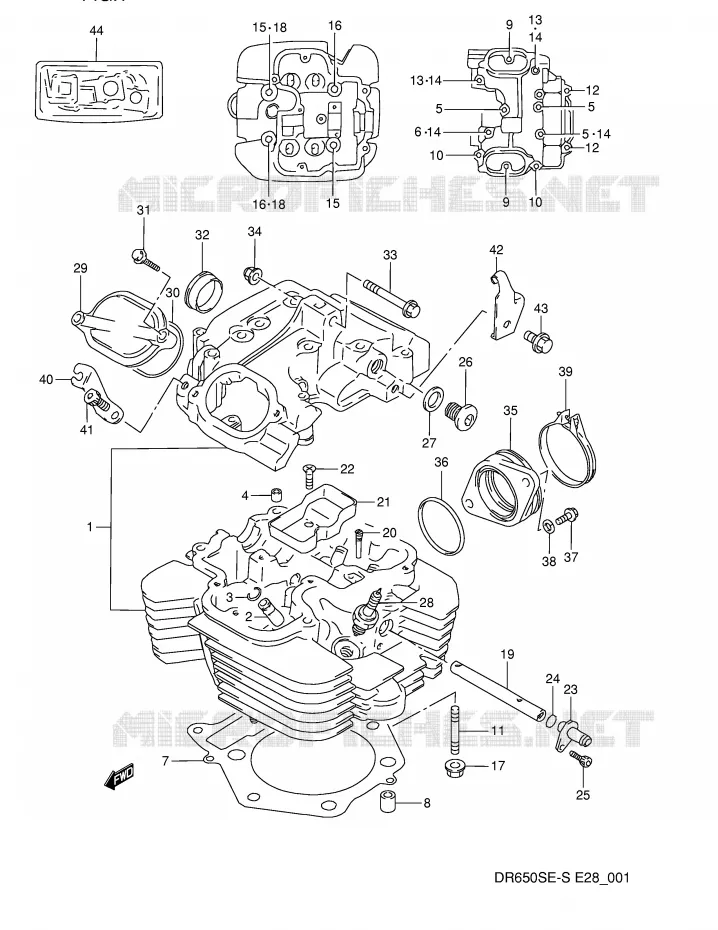

CYLINDER HEAD Suzuki MOTO 650 DR 1994 DR650SER(E28)
1
1
2
2
3
4
5
5
5
5
5
5
6
6
7
8
9
9
9
9
10
10
10
10
11
12
12
13
13
13
13
14
14
14
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
25
26
27
28
28
28
28
29
30
31
31
32
33
33
34
35
36
37
37
38
38
39
39
40
41
42
43
44
44
1
HEAD ASSY, CYLINDER

11100-12D60-000   1110012D60000

1110012D60000
Not available
1
HEAD ASSY, CYLINDER

11100-12D80-000   1110012D80000

1110012D80000
Not available
2
GUIDE, VALVE

11115-37470-000   1111537470000

1111537470000

Unit Price

3
RING,SNAP<br />RING, VALVE GUIDE
RING, SNAP
RING, VALVE GUIDE

09381-10003-000   0938110003000

0938110003000

Unit Price

4
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

6
BOLT (6X55)

09103-06040-000   0910306040000

0910306040000
Not available
6
BOLT (6X55)

09103-06151-000   0910306151000

0910306151000
Not available
7
GASKET, CYLINDER HEAD

11141-12D00-000   1114112D00000

1114112D00000

Unit Price

8
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

9
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

10
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

10
BOLT<br />BOLT (6X40)
BOLT
BOLT (6X40)

01550-06407-000   0155006407000

0155006407000

Unit Price

11
BOLT STUD L:33
STUD BOLT

09108-08220-000   0910808220000

0910808220000

Unit Price

12
BOLT (6X130)

09103-06085-000   0910306085000

0910306085000

Unit Price

13
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

14
GASKET

09168-06028-000  

0916806028000
Not available
15
BOLT
BOLT (10X190)

09103-10179-000   0910310179000

0910310179000

Unit Price

16
BOLT (10X215)

09103-10181-000   0910310181000

0910310181000
Not available
17
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

17
NUT
NUT

08316-10087-000   0831610087000

0831610087000

Unit Price

18
GASKET

09168-10017-000   0916810017000

0916810017000

Unit Price

19
DISCONTINUE
PIPE, HEAD OIL

11131-12D00-000   1113112D00000

1113112D00000
Not available
20
SCREW

09134-06012-000   0913406012000

0913406012000
Not available
21
PLATE, CYLINDER HEAD CHAMBER
PLATE, HEAD CHAMBER

11135-12D00-000   1113512D00000

1113512D00000

Unit Price

22
SCREW

02112-06103-000  

02112-0610B-000
 0211206103000

Unit Price

23
DISCONTINUE
UNION, HEAD OIL

11190-12D01-000   1119012D01000

1119012D01000
Not available
24
O RING, HEAD GASKET
O RING

11143-06B00-000   1114306B00000

1114306B00000

Unit Price

25
BOLT

07130-06163-000  

07130-0616B-000
 0713006163000

Unit Price

26
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

27
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

28
DPR9EA-9, NGK
SPARK PLUG (NGK, DPR9EA-9)

09482-00330-000   0948200330000

0948200330000

Unit Price

28
SPARK PLUG (ND, X27EPR-U9)

09482-00331-111   0948200331111

0948200331111
Not available
29
CAP, INSPECTION

11175-12D10-000   1117512D10000

1117512D10000
Not available
30
O RING, CAP
O RING

09280-60004-000   0928060004000

0928060004000

Unit Price

31
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

31
BOLT
BOLT

01550-06207-000   0155006207000

0155006207000

Unit Price

32
PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000   0924130004000

0924130004000

Unit Price

33
BOLT

09103-08290-000  

09103-08332-000
 0910308290000

Unit Price

33
BOLT (8X50)

09103-08289-000   0910308289000

0910308289000
Not available
34
NUT

08319-31085-000  

08319-3108A-000
 0831931085000

Unit Price

35
DISCONTINUE
PIPE, INTAKE

13110-12D00-000   1311012D00000

1311012D00000
Not available
36
O RING

09280-46002-000   0928046002000

0928046002000

Unit Price

37
BOLT

07120-06203-000  

07120-0620B-000
 0712006203000

Unit Price

38
08321-0106A
LOCK WASHER

08321-01063-000  

0832101063000
Not available
39
CLAMP

09402-58207-000  

09402-58208-000
 0940258207000

Unit Price

40
DISCONTINUE
HOLDER, DECOMP CABLE

12944-14A00-000   1294414A00000

1294414A00000
Not available
41
BOLT

07130-08163-000  

07130-0816A-000
 0713008163000

Unit Price

42
DISCONTINUE
HOLDER, DECOMP CABLE

12944-12D00-000   1294412D00000

1294412D00000
Not available
43
BOLT

09103-08308-000  

09103-08283-000
 0910308308000

Unit Price

44
DISCONTINUE

11400-12895-000  

1140012895000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 650 SE of DR. Let us know if you have any questions.

Genuine parts for Suzuki 650 DR 1994
