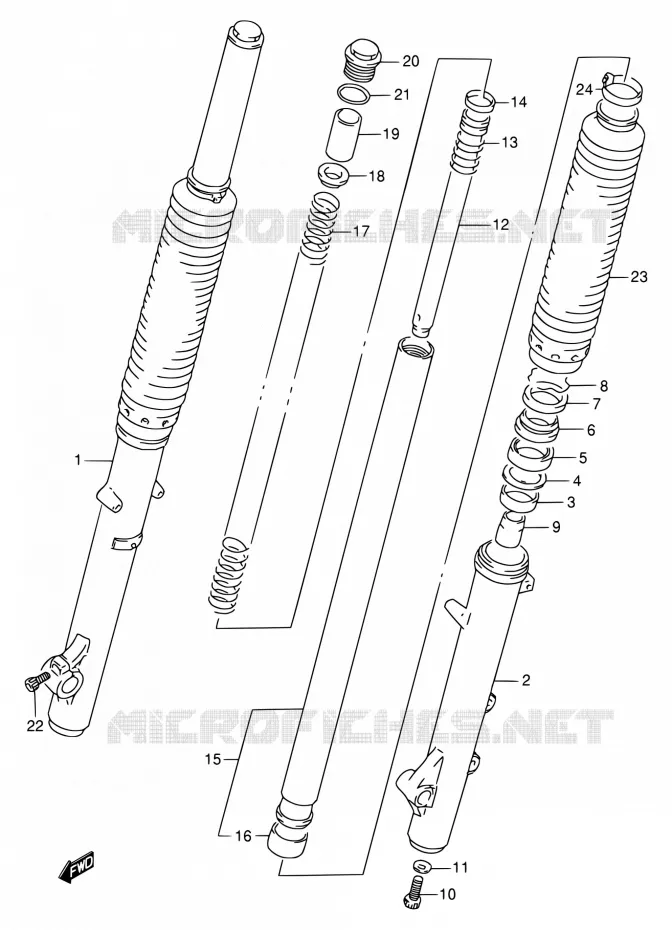

FRNT FORK FOR SUZUKI DR 650 1995

STEERING COLUMN

Item numbers

DISCONTINUE
.TUBE, OUTER RH

51130-12E20-000 5113012E20000

Not available

DISCONTINUE
.TUBE, OUTER LH

51140-12E20-000 5114012E20000

Not available

METAL, SLIDE

51167-28C00-000

51167-26E10-000

$28,97

Unit Price

WASHER
.WASHER, LOWER

51158-05A00-000 5115805A00000

$8,97

Unit Price

SEAL, OIL
.OIL SEAL

51153-44B00-000 5115344B00000

$37,97

Unit Price

SEAL, DUST
.DUST SEAL

51173-44B00-000 5117344B00000

$31,97

Unit Price

DISCONTINUE
.WASHER, UPPER

51158-44B00-000 5115844B00000

Not available

RING, OIL SEAL STOPPER
.SNAP RING

51156-49440-000 5115649440000

$7,97

Unit Price

.PIECE, OIL LOCK

51195-12E20-000 5119512E20000

Not available

DISCONTINUE
.BOLT

51147-14200-000 5114714200000

Not available

.GASKET

51148-14200-000 5114814200000

$4,97

Unit Price

.CYLINDER

51146-12E20-000 5114612E20000

Not available

.SPRING

51177-12D00-000 5117712D00000

Not available

DISCONTINUE
.RING, PISTON

51196-24A00-000 5119624A00000

Not available

DISCONTINUE
.TUBE, INNER

51110-12E20-000 5111012E20000

Not available

PISTON

51121-28C00-000

51121-26E10-000

$35,97

Unit Price

DISCONTINUE
.SPRING, MAIN

51171-12E20-000 5117112E20000

Not available

DISCONTINUE
.GUIDE, SPRING

51172-12D00-000 5117212D00000

Not available

.SPACER

51176-12D00-000 5117612D00000

Not available

CAP, FORK
.CAP

51351-10D00-000 5135110D00000

$63,97

Unit Price

.O RING

09280-32001-000 0928032001000

$3,97

Unit Price

DISCONTINUE
.BOLT, RH

51138-44B00-000 5113844B00000

Not available

BOOT (GRAY)

51571-12D00-1LU 5157112D001LU

Not available

DISCONTINUE
BOOT (BLUE)

51571-12D00-38K 5157112D0038K

Not available

DISCONTINUE
BAND, BOOT UPPER

51575-12D00-000 5157512D00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRNT FORK of your Suzuki DR 650 RE of DR. Let us know if you have any questions.
