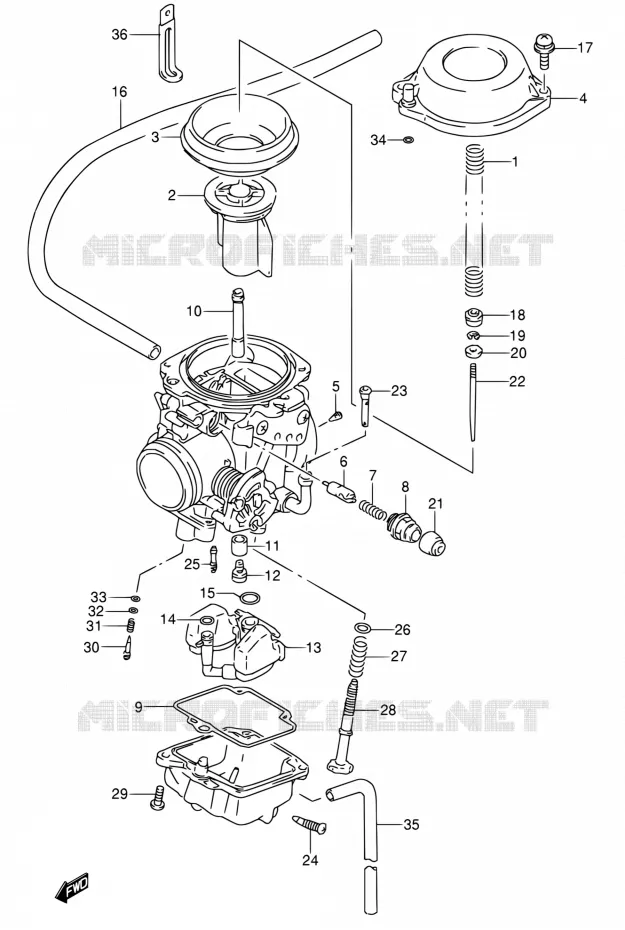

CARBURETOR (MODELE N / P / R / S) FOR SUZUKI DR 650 1995

CARBURETOR (DR650RSEUR / RSEUS E22)

Item numbers

.SPRING

13417-17D00-000 1341717D00000

$10,97

Unit Price

DISCONTINUE
.VALVE, PISTON

13501-12D00-000 1350112D00000

Not available

DIAPHRAGM

13507-07D01-000

13507-07D02-000

$39,97

Unit Price

.COVER, DIAPHRAGM

13502-12D00-000 1350212D00000

Not available

.COVER, DIAPHRAGM

13502-12D10-000 1350212D10000

Not available

JET, AIR(1.3)
.JET, PILOT AIR (1.3)

09493-26004-000 0949326004000

$27,97

Unit Price

.JET, PILOT AIR (1.4)

09493-28007-000 0949328007000

Not available

.PLUNGER

13411-12D00-000 1341112D00000

$26,97

Unit Price

.SPRING

13417-22010-000 1341722010000

$5,97

Unit Price

.HOLDER, GUIDE

13418-43410-000 1341843410000

$10,97

Unit Price

GASKET, FLOAT CAHMBER
.GASKET, FLOAT CHAMBER

13258-44B00-000 1325844B00000

$12,97

Unit Price

.JET, NEEDLE (X-9)

09494-00749-000 0949400749000

Not available

.RING

13331-07D00-000 1333107D00000

$8,97

Unit Price

JET, MAIN
.JET, MAIN (140)

09491-28010-000 0949128010000

$16,97

Unit Price

DISCONTINUE
.FLOAT/NEEDLE VALVE ASSY

13250-13D00-000 1325013D00000

Not available

.O RING

13374-46710-000 1337446710000

$6,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

HOSE
.HOSE (6.5X11.5X600)

09354-65113-600

Not available

SCREW

13602-34390-000

02112-75163-000

$3,97

Unit Price

.RING

13331-12D00-000 1333112D00000

$8,97

Unit Price

CLIP, NEEDLE
.E RING

13394-31210-000 1339431210000

$6,97

Unit Price

.RING

13387-07D00-000 1338707D00000

$8,97

Unit Price

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

.NEEDLE, JET (6H13-3)

13383-12D20-000 1338312D20000

Not available

.FILTER

13236-12C00-000 1323612C00000

$15,97

Unit Price

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$8,97

Unit Price

DISCONTINUE
.JET, PILOT (50)

09492-50022-000 0949250022000

Not available

.WASHER

13427-38300-000 1342738300000

$2,97

Unit Price

.SPRING

13271-24D00-000 1327124D00000

$9,97

Unit Price

.ADJUSTER

13267-13D01-000 1326713D01000

$23,97

Unit Price

.SCREW

02112-05167-000 0211205167000

$2,97

Unit Price

.SCREW, PILOT (1 1/8)

13269-37110-000 1326937110000

Not available

.SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

.WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

.O RING

13278-02340-000 1327802340000

$3,97

Unit Price

HOSE (7.4X3.2X135)

13684-18900-000

09354-31684-600

$17,97

Unit Price

CLAMP(L:65)

09404-06402-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODELE N/P/R/S) of your Suzuki DR 650 RSE of DR. Let us know if you have any questions.
