FRONT FORK (MODEL R / S)

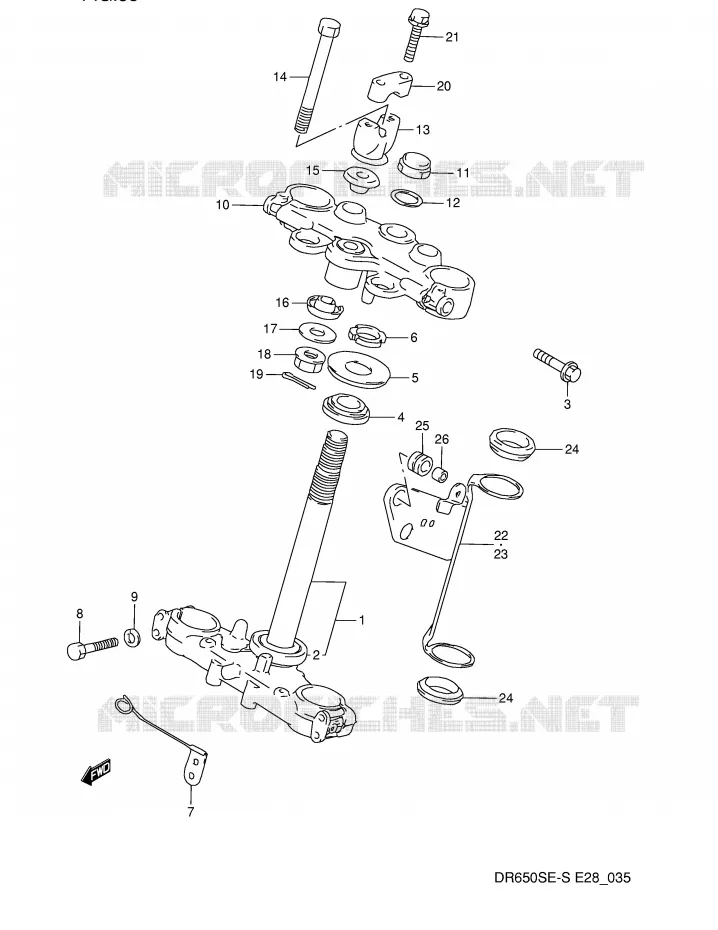

STEERING COLUMN FOR SUZUKI DR 650 1995

FRONT WHEEL

Item numbers

DISCONTINUE
STEM, STEERING

51410-12E00-000 5141012E00000

Not available

BEARING, STEERING LOW

09265-30009-000

09265-30034-000

$70,97

Unit Price

BOLT(10X45)
BOLT

09103-10284-000 0910310284000

$6,97

Unit Price

01550-1045A
BOLT, STEM HEAD

01517-10458-000

Not available

BOLT

01550-10457-000 0155010457000

Not available

BEARING

09265-25008-000

09265-25019-000

$57,97

Unit Price

SEAL, STEERING UPR DUST
DUST SEAL

51643-40200-000 5164340200000

$19,97

Unit Price

DISCONTINUE
NUT, STEERING STEM

51631-40200-000 5163140200000

Not available

GUIDE, SPEEDOMETER CABLE

34938-44B10-000 3493844B10000

Not available

BOLT

01107-08458-000

01500-08453-000

$4,97

Unit Price

BOLT, LOWER BRACKET

01570-08457-000 0157008457000

Not available

8 MM LOCK WASHER
LOCK WASHER

08321-01087-000 0832101087000

$3,97

Unit Price

BRACKET, UPPER

51311-12E00-000 5131112E00000

Not available

NUT, CAP
NUT

51353-24B00-000 5135324B00000

$29,97

Unit Price

WASHER(22.5X32X1.6)
WASHER

51356-24B01-000 5135624B01000

$8,97

Unit Price

DISCONTINUE
HOLDER, HANDLE

56221-12E00-000 5622112E00000

Not available

BOLT

51321-14200-000

56321-28C00-000

$14,97

Unit Price

DAMPER, UPR
DAMPER RUBBER, UPPER

56241-14200-000 5624114200000

$46,97

Unit Price

DAMPER, LWR
DAMPER RUBBER, LOWER

56242-14200-000 5624214200000

$39,97

Unit Price

HDLBAR LOW CLP WASHR

51356-40400-000

09160-10035-000

$3,97

Unit Price

NUT

08319-31107-000 0831931107000

$4,97

Unit Price

04111-20308-000

04111-2030A-000

$2,97

Unit Price

DISCONTINUE
HOLDER, HANDLE UPPER

56211-12E00-000 5621112E00000

Not available

BOLT

01147-08358-000 0114708358000

Not available

BOLT

01570-08357-000 0157008357000

Not available

DISCONTINUE
COVER, FORK RH

51530-12E00-000 5153012E00000

Not available

DISCONTINUE
COVER, FORK LH

51540-12E00-000 5154012E00000

Not available

DAMPER, HEAD LAMP HSG

51553-38C00-000

51553-38C01-000

$17,97

Unit Price

RUBBER, DAMPER

51553-14A20-000 5155314A20000

Not available

CUSHION
CUSHION, FORK COVER

09320-09018-000 0932009018000

$3,97

Unit Price

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
