SEAT (MODEL M / N / P / R) COLOR : B35 = 5FM(BLUE), 064(WHITE)

SEAT (MODEL S / T) FOR SUZUKI DR 650 1996

STARTER MOTOR

Item numbers

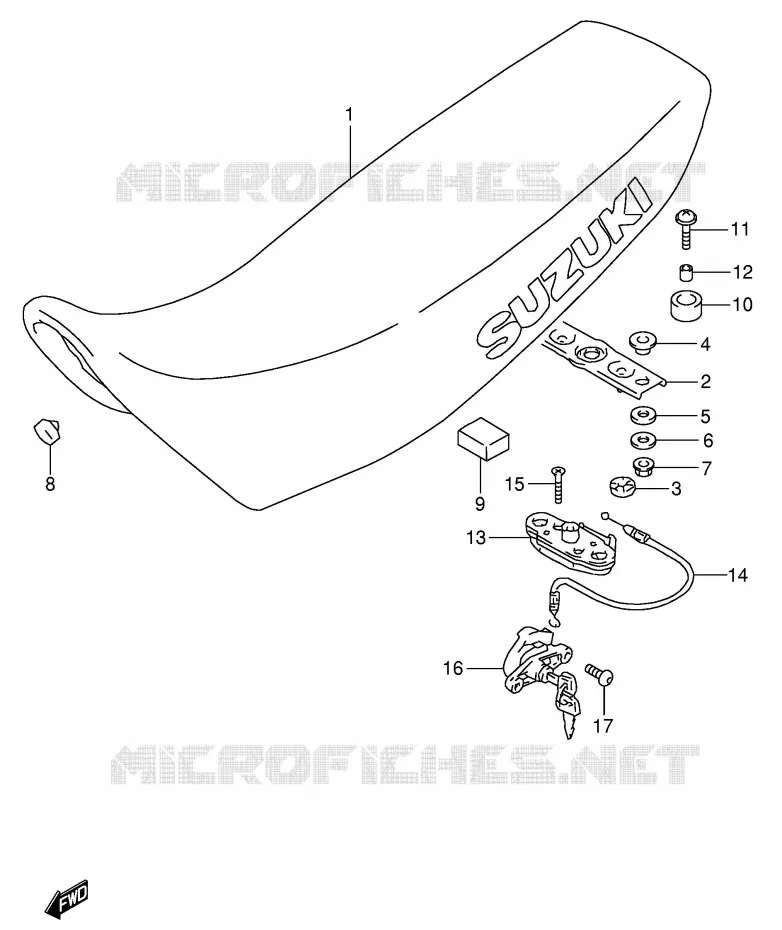

SEAT (MODEL S/T) Suzuki MOTO 650 DR 1996 DR650RSET(E4)

1

SEAT SET

45100-12D02-3RB 4510012D023RB

Not available

2

STRIKER, SEAT LOCK

45210-22A00-000 4521022A00000

Not available

3

CUSHION, SEAT LOCK(10X22X6)
CUSHION, BOSS

45213-13601-000 4521313601000

$4,97

Unit Price

4

CUSHION, UPR
CUSHION, UPPER

45126-41B00-000 4512641B00000

$4,97

Unit Price

5

CUSHION, LWR
CUSHION, LOWER

45127-41B00-000 4512741B00000

$4,97

Unit Price

6

WASHER, THRUST
WASHER

08212-06201-000 0821206201000

$2,97

Unit Price

7

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

8

CUSHION

09329-10001-000 0932910001000

$3,97

Unit Price

9

DISCONTINUE
CUSHION, BALLERY STOPPER

45255-15510-000 4525515510000

Not available

10

DISCONTINUE
CUSHION, RUBBER

45149-44400-000 4514944400000

Not available

11

SCREW

02112-16203-000

02112-1620B-000

$4,97

Unit Price

12

SPACER

09180-06193-000

09180-06318-000

$5,97

Unit Price

13

BRACKET, SEAT SUPPORT

45220-20A01-000

45220-47H00-000

$141,97

Unit Price

14

DISCONTINUE
CABLE, SEAT LOCK

45280-12D00-000 4528012D00000

Not available

15

SCREW

02122-06303-000

02122-0630B-000

$3,97

Unit Price

16

LOCK SET, SEAT

95700-12852-000

95700-12853-000

$170,97

Unit Price

17

SCREW

09139-06064-000 0913906064000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL S/T) of your Suzuki DR 650 RSE of DR. Let us know if you have any questions.
