FRONT FORK

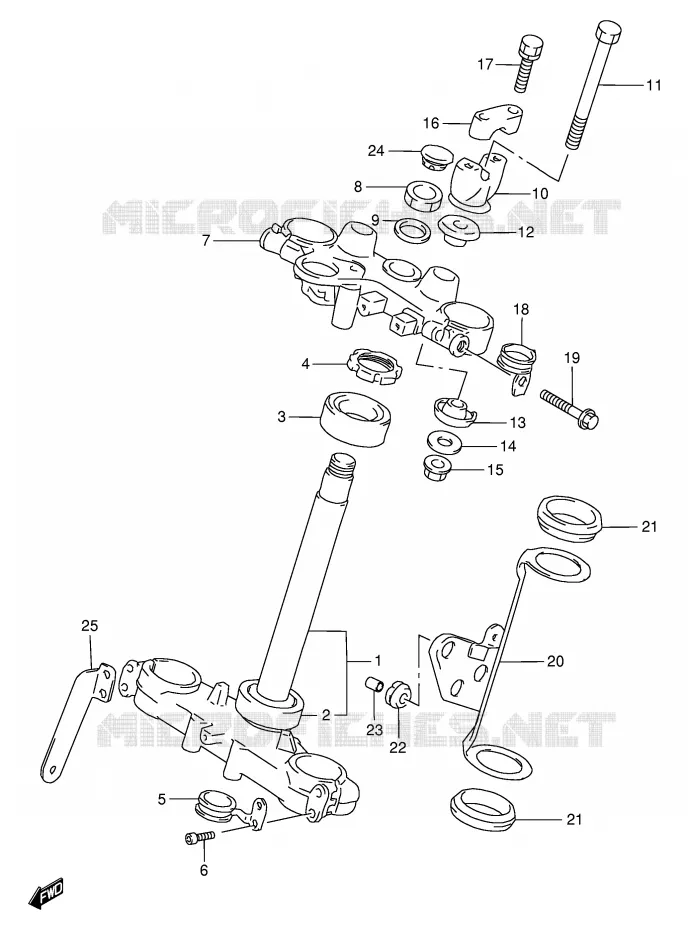

STEERING COLUMN FOR SUZUKI DR 650 1999

FRONT WHEEL

Item numbers

BRACKET COMP, UNDER

51410-32E00-000

51410-32E01-000

$767,97

Unit Price

BEARING

09265-30014-000

09265-30035-000

$82,97

Unit Price

BEARING

09265-30014-000

09265-30035-000

$82,97

Unit Price

NUT, STEERING
NUT, STEERING STEM

51631-28E00-000 5163128E00000

$28,97

Unit Price

DISCONTINUE
CLAMP, LOWER

51453-32E00-000 5145332E00000

Not available

BOLT
BOLT, LOWER

07130-08407-000 0713008407000

$5,97

Unit Price

HEAD, STEERING STEM

51311-32E00-000 5131132E00000

$357,97

Unit Price

NUT

51353-32E00-000 5135332E00000

$32,97

Unit Price

WASHER, STEM HEAD(24.5X34X1.6)
WASHER

51356-27C00-000 5135627C00000

$8,97

Unit Price

DISCONTINUE
HOLDER, HANDLE LOWER

56221-12E00-000 5622112E00000

Not available

BOLT

56321-28C00-000 5632128C00000

$14,97

Unit Price

DAMPER, UPR
RUBBER, UPPER

56241-14A00-000 5624114A00000

$39,97

Unit Price

DAMPER, LWR
RUBBER, LOWER

56242-14200-000 5624214200000

$39,97

Unit Price

HDLBAR LOW CLP WASHR
WASHER

09160-10035-000 0916010035000

$3,97

Unit Price

NUT

08319-31107-000 0831931107000

$4,97

Unit Price

DISCONTINUE
HOLDER, HANDLE UPPER

56211-12E00-000 5621112E00000

Not available

BOLT

01570-08353-000

01570-0835A-000

$5,97

Unit Price

CLIP
CLAMP, UPPER

51288-32E00-000 5128832E00000

$19,97

Unit Price

BOLT

01550-10403-000

01550-1040B-000

$6,97

Unit Price

COVER, FORK, R
COVER, FORK RH

51530-32E00-000 5153032E00000

$100,97

Unit Price

COVER, FORK, L
COVER, FORK LH

51540-32E00-000 5154032E00000

$100,97

Unit Price

DAMPER, HEAD LAMP HSG BRKT

51553-15D00-000

51553-15D01-000

$10,97

Unit Price

CUSHION

09320-09018-000 0932009018000

$3,97

Unit Price

SPACER

09180-06310-000 0918006310000

$3,97

Unit Price

CAP(OD:20)

09250-12006-000

09250-12016-000

$2,97

Unit Price

BRACKET, FR SIDE REFLECTOR, R
BRACKET, REFLEX REFLECTOR RH

35956-44B01-000 3595644B01000

$13,97

Unit Price

BRACKET, FR SIDE REFLECTOR, L
BRACKET, REFLEX REFLECTOR LH

35957-44B01-000 3595744B01000

$13,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
