SHOCK ABSORBER LINKAGE

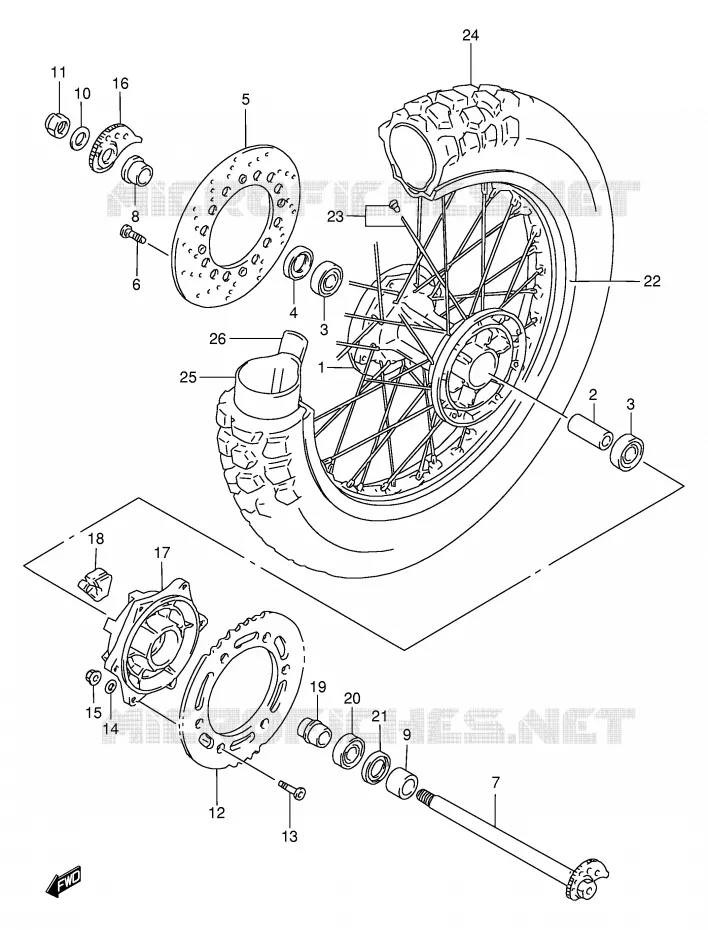

REAR WHEEL FOR SUZUKI DR 650 1999

REAR CALIPER

Item numbers

HUB, RR WHEEL
HUB, REAR WHEEL

64111-15D10-000 6411115D10000

$270,97

Unit Price

SPACER, RR HUB BEARING
SPACER, HUB BEARING

64731-15D00-000 6473115D00000

$17,97

Unit Price

BALL BEARING

08123-62047-000

08123-6204B-000

$35,97

Unit Price

DUST SEAL
SEAL, HUB RH (26X47X5)

09283-26019-000 0928326019000

$20,97

Unit Price

DISC, RR BRAKE

69211-32E00-000

69211-32E01-000

$327,97

Unit Price

BOLT

59421-03A10-000

09106-08155-000

$6,97

Unit Price

AXLE, RR
AXLE, REAR

64710-32E00-000 6471032E00000

$138,97

Unit Price

SPACER, RR AXLE, R
SPACER, RH

64741-05D00-000 6474105D00000

$19,97

Unit Price

SPACER, RR AXLE, L
SPACER, LH

64751-15D00-000 6475115D00000

$26,97

Unit Price

WASHER

09160-19022-000 0916019022000

$7,97

Unit Price

NUT

08319-21188-000 0831921188000

Not available

SPROCKET, REAR (NT:41)

64511-32E10-000 6451132E10000

Not available

SCREW
BOLT (8X30.5)

09120-08010-000 0912008010000

$3,97

Unit Price

08322-0108A
WASHER

08322-01083-000

Not available

NUT

08319-31087-000 0831931087000

Not available

ADJUSTER, CHAIN, R
ADJUSTER, CHAIN, RH

61410-32E00-000 6141032E00000

$20,97

Unit Price

DRUM, RR SPROCKET MOUNTING
DRUM, REAR SPROCKET

64611-15D01-000 6461115D01000

$166,97

Unit Price

ABSORBER, RR HUB SHOCK
ABSORBER, REAR HUB SHOCK

64651-32E00-000 6465132E00000

$10,97

Unit Price

RETAINER, RR SPROCKET DRUM
RETAINER, SPROCKET DRUM

64733-15D00-000 6473315D00000

$32,97

Unit Price

BEARING
BEARING (25X52X15)

09262-25061-000 0926225061000

$47,97

Unit Price

SEAL, OIL
SEAL, DUST (34X52X6)

09283-34003-000 0928334003000

$14,97

Unit Price

RIM, RR WHEEL(17M/CXMT2.50)

65311-32E00-000

65311-32E01-000

$457,97

Unit Price

SPOKE SET, RR WHEEL
SPOKE SET, REAR WHEEL

65320-32E00-000 6532032E00000

$83,97

Unit Price

65110-32E01
TIRE, REAR (120/90-17 64S) BRIDGESTONE

65110-32E00-000 6511032E00000

Not available

TUBE ASSY, WHEEL INNER

65200-32E00-000 6520032E00000

$59,97

Unit Price

PROTECTOR, WHL INR TUBE

65261-32E00-000

65261-32E01-000

$15,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
