HEADLIGHT (MODEL K1 E4,E17,E18,E22,E34,E54) REFER TO FIG.25A(D- 8) FOR MODEL K2/K3 E4,E17,E18,E34

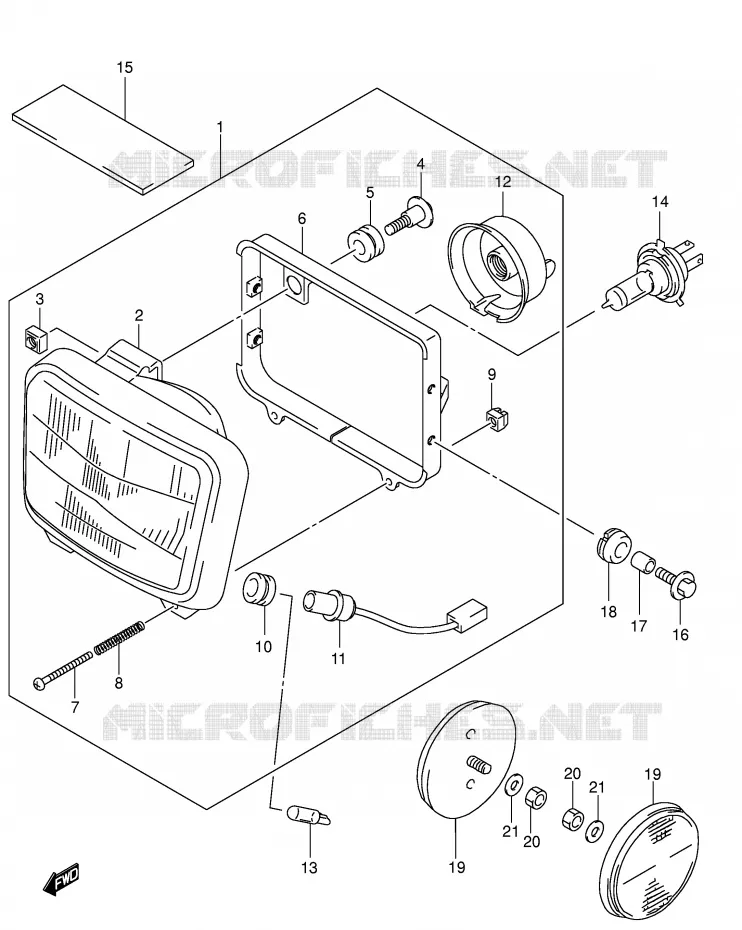

HEADLIGHT (MODEL K2 / K3 E4,E17,E18,E34) FOR SUZUKI DR 650 2001

HEADLIGHT (MODEL K1 E24) REFER TO FIG.25C(D-10) FOR MODEL K2/K3/K4/K5 E24

Item numbers

DISCONTINUE
HEADLAMP ASSY

35100-12EE0-999 3510012EE0999

Not available

UNIT ASSY

35121-12EC0-000 3512112EC0000

Not available

NUT

35135-45900-000 3513545900000

$4,97

Unit Price

SCREW, MOUNTING

35136-38A00-000 3513638A00000

$3,97

Unit Price

CUSHION

35139-45230-000 3513945230000

$2,97

Unit Price

HOUSING

35141-12EA0-000 3514112EA0000

$104,97

Unit Price

SCREW, ADJUSTING

35151-12EA0-000 3515112EA0000

$6,97

Unit Price

SPRING, ADJUSTING
SPRING, MOUNTING

35154-12EA0-000 3515412EA0000

$6,97

Unit Price

NUT, ADJUSTING

35135-12E20-000 3513512E20000

$4,97

Unit Price

JOINT, RUBBER
CUSHION

36116-22630-000 3611622630000

$10,97

Unit Price

SOCKET

36118-12E20-000 3611812E20000

Not available

COVER, SOCKET

35173-01440-000 3517301440000

$17,97

Unit Price

BULB (12V, 4W)

09471-12063-000

Not available

BULB(12V8W, TOKAI DENSO)
BULB (12V, 60/55W)

09471-12185-000

Not available

PROTECTOR, WIRING HARNESS
CUSHION, HEADLAMP

36920-14D00-000 3692014D00000

$8,97

Unit Price

BOLT
BOLT (6X20)

09116-06167-000 0911606167000

$3,97

Unit Price

SPACER
SPACER (6.5X10X10)

09180-06310-000 0918006310000

$3,97

Unit Price

CUSHION

09320-09018-000 0932009018000

$3,97

Unit Price

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000

35950-14A11-000

$19,97

Unit Price

NUT

08313-10053-000

08313-1005B-000

$3,97

Unit Price

WASHER, LOCK

08321-01053-000

08321-0105A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL K2/K3 E4,E17,E18,E34) of your Suzuki of DR. Let us know if you have any questions.
