TRANSMISSION

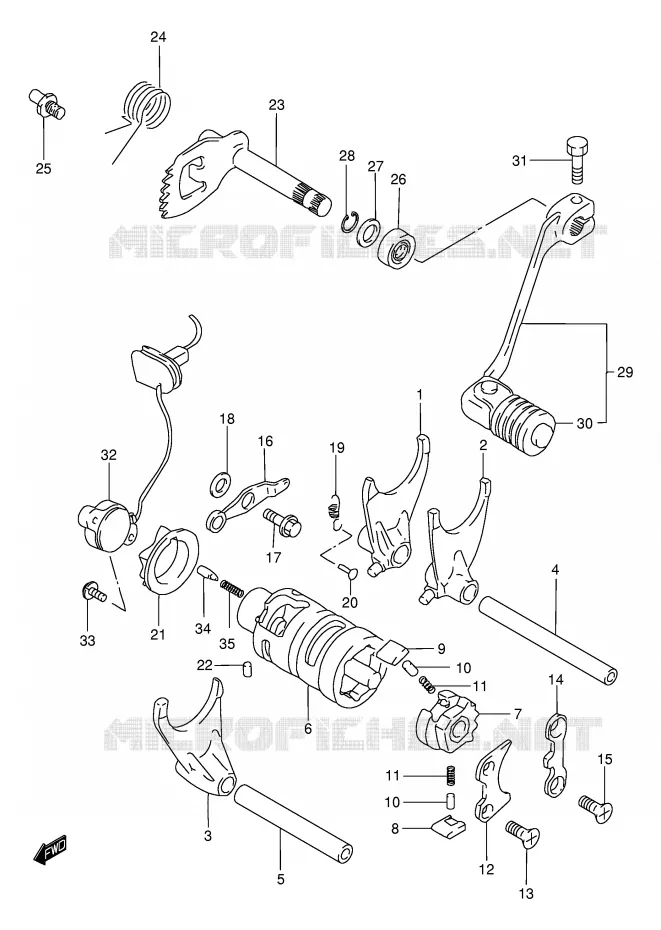

GEAR SHIFTING ASSY FOR SUZUKI DR 650 2002

FUEL COCK

Item numbers

FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

25211-37401-000 2521137401000

$81,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-37401-000 2522137401000

$81,97

Unit Price

FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFTING NO.3

25231-14A01-000 2523114A01000

$78,97

Unit Price

SHAFT, GEAR SHIFT FORK
SHAFT, FORK NO.1

25411-20A11-000 2541120A11000

$17,97

Unit Price

SHAFT, GEAR SHIFT FORK
SHAFT, FORK NO.2

25421-14A02-000 2542114A02000

$17,97

Unit Price

CAM, GEAR SHIFT
CAM, GEAR SHIFTING

25310-37400-000 2531037400000

$153,97

Unit Price

GEAR, GEAR SHIFT CAM DRIVEN
GEAR, CAM DRIVEN

25322-31310-000 2532231310000

$24,97

Unit Price

PAWL, GEAR SHIFT NO.1
PAWL, NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2
PAWL, NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

SHIFTING PAUL ROLLER
PIN

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

LIFTER, GEAR SHAFT PAWL
LIFTER, PAWL

25331-14A00-000 2533114A00000

$8,97

Unit Price

SCREW

02122-06123-000

02122-0612B-000

$3,97

Unit Price

STOPPER, GEAR SHIFT POLE
GUIDE, CAM

25341-40001-000 2534140001000

$14,97

Unit Price

SCREW

02122-06123-000

02122-0612B-000

$3,97

Unit Price

STOPPER, GEAR SHIFT CAM
STOPPER

25350-37400-000 2535037400000

$17,97

Unit Price

BOLT

09111-06054-000 0911106054000

$4,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

SPRING

09443-08020-000 0944308020000

$3,97

Unit Price

RIVET
HOOK

09223-04001-000 0922304001000

$2,97

Unit Price

PLATE, GEAR SHIFT CAM STOPPER
PLATE, STOPPER

25381-37401-000 2538137401000

$19,97

Unit Price

PIN (4X6)
PIN

04221-04069-000 0422104069000

$2,97

Unit Price

SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING

25510-32E00-000 2551032E00000

$78,97

Unit Price

SPRING

09444-26023-000 0944426023000

$6,97

Unit Price

STOPPER, GEAR SHIFT ARM
STOPPER, ARM

25671-01011-000 2567101011000

$6,97

Unit Price

09285-12006
OIL SEAL (12X22X9)

09285-12002-000

Not available

WASHER

08212-12201-000 0821212201000

$2,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

LEVER ASSY, GEAR SHIFT
LEVER ASSY, GEAR SHIFTING

25600-32E00-000 2560032E00000

$53,97

Unit Price

RUBBER, GEAR SHIFT PEDAL
RUBBER

25652-03D00-000 2565203D00000

$7,97

Unit Price

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

BASE ASSY, NEUTRAL SW TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-32E10-000 3772032E10000

$69,97

Unit Price

BASE ASSY, GEAR SHIFT TERM

37720-32E00-000 3772032E00000

Not available

SCREW

02112-05163-000

02112-0516B-000

$2,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of DR. Let us know if you have any questions.
