Finish line

Parts catalogue

Parts diagram

FRAME

FOOTREST FOR SUZUKI DR 650 2007

REAR GRIP

Item numbers

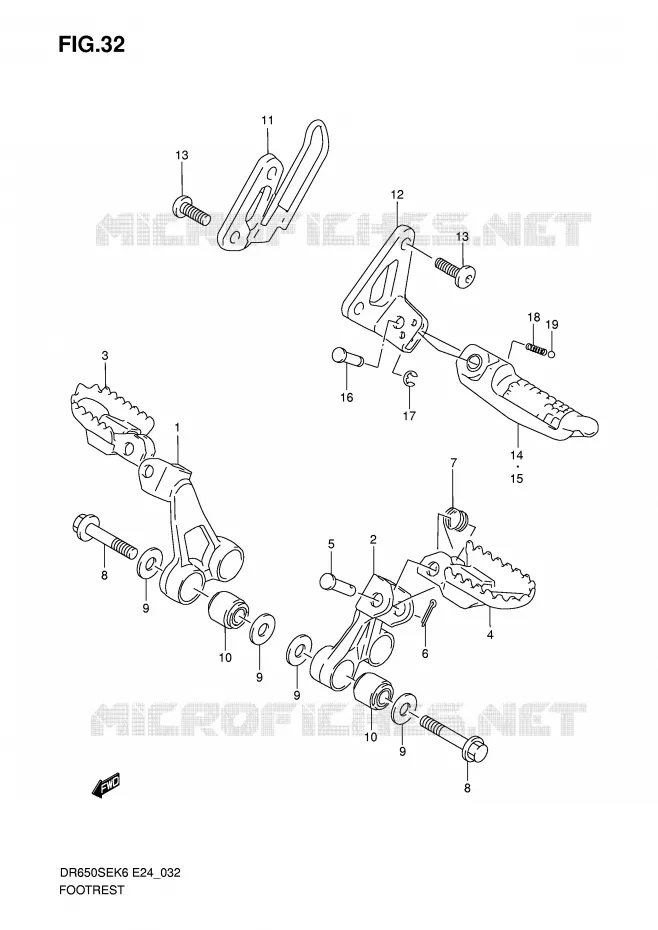

FOOTREST Suzuki MOTO 650 DR 2007 DR650SEK7(E24)
1
2
3
4
5
6
7
8
8
9
9
9
9
10
10
11
12
13
13
14
15
16
17
18
19
1
BRACKET, FR FOOTREST, R
BAR, FOOTREST RH

43510-32E00-000   4351032E00000

4351032E00000

Unit Price

2
BRACKET, FR FOOTREST, L
BAR, FOOTREST LH

43520-32E00-000   4352032E00000

4352032E00000

Unit Price

3
FOOTREST, FR, R

43550-14D30-000  

43550-03B00-019
 4355014D30000

Unit Price

4
FOOTREST, FR, L

43560-14D30-000  

43560-03B00-019
 4356014D30000

Unit Price

5
PIN

09200-10013-000   0920010013000

0920010013000

Unit Price

6
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2020A-000   041112020A000

041112020A000

Unit Price

7
FR FOOTREST SPRING
SPRING

09448-15004-000   0944815004000

0944815004000

Unit Price

8
BOLT

09103-10232-000   0910310232000

0910310232000

Unit Price

9
WASHER, 10.1X23X2.30
WASHER

09160-10124-000   0916010124000

0916010124000

Unit Price

10
BUSH

09319-10033-000   0931910033000

0931910033000

Unit Price

11
BRACKET, PILLION FOOT, R(BLACK)
BRACKET, PILLION RH (BLACK)

43650-32E00-019   4365032E00019

4365032E00019

Unit Price

12
BRACKET, PILLION FOOT, L(BLACK)
BRACKET, PILLION LH (BLACK)

43750-32E00-019   4375032E00019

4375032E00019

Unit Price

13
BOLT<br />BOLT, BRACKET
BOLT
BOLT, BRACKET

09106-08161-000   0910608161000

0910608161000

Unit Price

14
BAR,PILLION FOOTREST,R<br />BAR, RH
BAR, PILLION FOOTREST, R
BAR, RH

43610-23E00-000   4361023E00000

4361023E00000

Unit Price

15
BAR,PILLION FOOTREST,L<br />BAR, LH
BAR, PILLION FOOTREST, L
BAR, LH

43710-23E00-000   4371023E00000

4371023E00000

Unit Price

16
PIN
PIN

09208-08011-000   0920808011000

0920808011000

Unit Price

17
E RING
E RING

08332-1106B-000   083321106B000

083321106B000

Unit Price

18
SPRING
SPRING

09440-05005-000   0944005005000

0944005005000

Unit Price

19
STEEL BALL 7/32<br />BALL
STEEL BALL 7/32
BALL

06111-07004-000   0611107004000

0611107004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of DR. Let us know if you have any questions.
