REAR GLIP

FAIRING FOR SUZUKI DR 650 2012

HEAD LAMP HOUSING

Item numbers

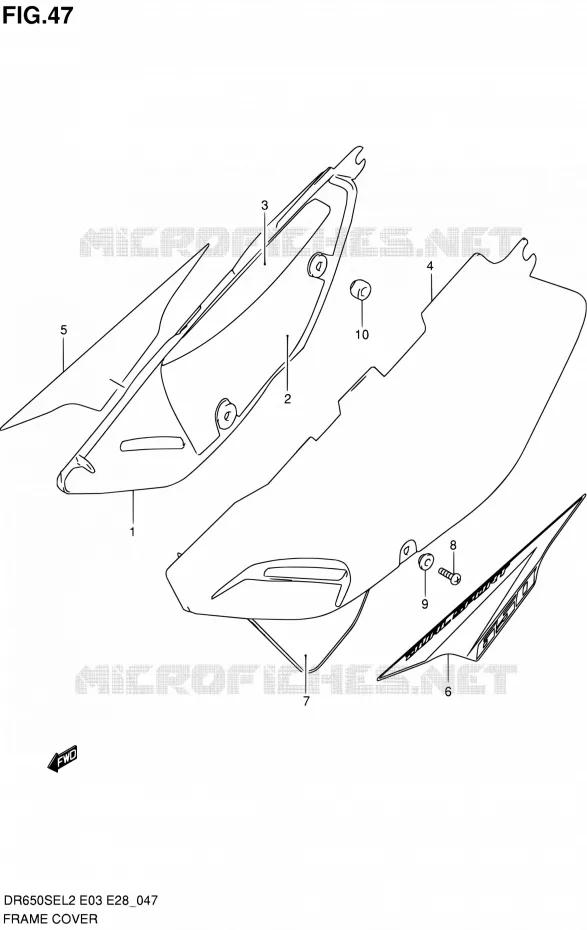

FAIRING Suzuki MOTO 650 DR 2012 DR650SE L2 (E03,E28,E33)
1
1
2
3
4
4
5
5
6
6
7
8
9
10
1
COVER, FRAME, R(WHITE)
COVER, FRAME RH (WHITE)

47111-32E10-30H   4711132E1030H

4711132E1030H

Unit Price

1
COVER, FRAME, R(GRAY)
COVER, FRAME RH (GRAY)

47111-32E10-YUD   4711132E10YUD

4711132E10YUD

Unit Price

2
SHIELD, FRAME COVER, R NO.1
SHIELD, COVER LOWER RH

47166-32E00-000   4716632E00000

4716632E00000

Unit Price

3
SHIELD, FRAME COVER, R NO.2
SHIELD, COVER UPPER RH

47167-32E00-000   4716732E00000

4716732E00000

Unit Price

4
COVER, FRAME, L(WHITE)
COVER, FRAME LH (WHITE)

47211-32E10-30H   4721132E1030H

4721132E1030H

Unit Price

4
COVER, FRAME, L(GRAY)
COVER, FRAME LH (GRAY)

47211-32E10-YUD   4721132E10YUD

4721132E10YUD

Unit Price

5
TAPE, FRAME COVER RH

68135-32E50-JJZ  

68135-32E51-JJZ
 6813532E50JJZ

Unit Price

5
DISCONTINUE
TAPE, RH

68135-32E50-HLW   6813532E50HLW

6813532E50HLW
Not available
6
DISCONTINUE
TAPE, LH

68145-32E50-HLW   6814532E50HLW

6814532E50HLW
Not available
6
DISCONTINUE
TAPE, LH

68145-32E50-JJZ  

6814532E50JJZ
Not available
7
TAPE, FRAME COVER LWR, L
TAPE, NO.2, LH

68146-32E00-000   6814632E00000

6814632E00000

Unit Price

8
SCREW
SCREW

02142-0616A-000   021420616A000

021420616A000

Unit Price

9
WASHER
WASHER

09169-06031-000   0916906031000

0916906031000

Unit Price

10
CUSHION
CUSHION, MUFFLER

09321-10019-000   0932110019000

0932110019000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki DR 650 SE of DR. Let us know if you have any questions.

Genuine parts for Suzuki 650 DR 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 DR 2012

Select your Suzuki 2012 model

650 DR 2012 DR650SE L2 (E03,E28,E33)

DR 650 SE

Suzuki DR

Displacement: 650 cc
Year: 2012
Model code DR650SE L2 (E03,E28,E33)
