INDICATORS

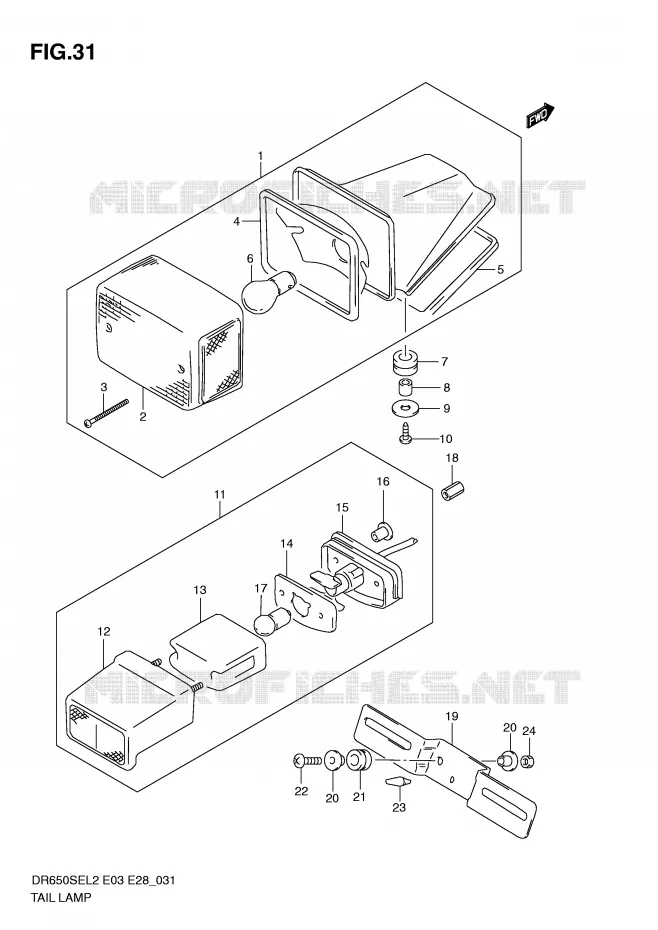

TAIL LIGHT FOR SUZUKI DR 650 2012

WIRING HARNESS (DR650SEL2 E03) REFER TO FIG.33 (1-D-12) FOR DR650SEL2 E28

Item numbers

LAMP ASSY, RR COMBINATION
LAMP ASSY, TAIL

35710-32E30-000 3571032E30000

$169,97

Unit Price

LENS

35712-14D30-000 3571214D30000

$62,97

Unit Price

SCREW
SCREW (4X45)

09125-04501-000 0912504501000

$4,97

Unit Price

GASKET, LENS
GASKET

35713-14D30-000 3571314D30000

$9,97

Unit Price

GASKET

35717-32E30-000 3571732E30000

$4,97

Unit Price

BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

SPACER (6.1X8X9.5)

09180-06248-000 0918006248000

$3,97

Unit Price

WASHER (6.5X20X1.6)

09160-06088-000 0916006088000

$2,97

Unit Price

SCREW

02142-0625B-000 021420625B000

$3,97

Unit Price

LAMP ASSY, LICENSE

35910-32E30-000 3591032E30000

$154,97

Unit Price

COVER, LICENSE
COVER, LENS

35917-17C00-000 3591717C00000

$67,97

Unit Price

LENS

35912-38A30-000 3591238A30000

$19,97

Unit Price

GASKET, LICENSE LAMP
GASKET

35913-38A30-000 3591338A30000

$4,97

Unit Price

CUSHION

35761-24B31-000 3576124B31000

$14,97

Unit Price

SPACER

35766-24B30-000 3576624B30000

$3,97

Unit Price

BULB(12V10W)
BULB (12V, 5W)

09471-12140-000

Not available

NUT
NUT, LICENSE LAMP

09140-04006-000 0914004006000

$7,97

Unit Price

BRACKET, LICENSE PLATE

35927-26E30-000 3592726E30000

$17,97

Unit Price

WASHER

09169-06073-000 0916906073000

$5,97

Unit Price

CUSHION

09320-09016-000 0932009016000

$3,97

Unit Price

SCREW

02142-0620A-000

02142-0620B-000

$2,97

Unit Price

CUSHION

09321-06023-000 0932106023000

$3,97

Unit Price

NUT

08310-0006A-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
