OIL PUMP FOR SUZUKI DR 650 2014

OIL COOLER

Item numbers

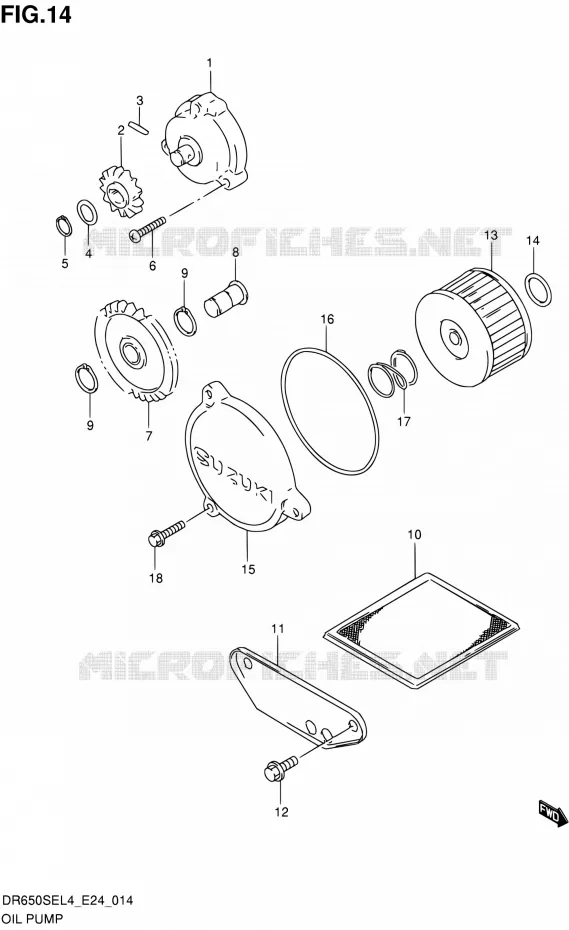

OIL PUMP Suzuki MOTO 650 DR 2014 DR650SE L4 (E24)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
1
PUMP ASSY, ENGINE OIL
PUMP, ENGINE OIL

16400-32E00-000   1640032E00000

1640032E00000

Unit Price

2
GEAR, ENG OIL PUMP DRIVEN
GEAR, DRIVEN

16331-32E00-000   1633132E00000

1633132E00000

Unit Price

3
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM, 10X20X0.50
SHIM (10X20X0.5)

09181-10186-000   0918110186000

0918110186000

Unit Price

5
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

6
SCREW
SCREW

02112-0625A-000   021120625A000

021120625A000

Unit Price

7
GEAR, OIL PUMP DRIVE(NT:30)
GEAR, OIL PUMP DRIVE

16321-32E00-000   1632132E00000

1632132E00000

Unit Price

8
SHIFT, ENG OIL PUMP DRIVE GEAR
SHAFT

16322-32E01-000   1632232E01000

1632232E01000

Unit Price

9
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

10
STRAINER COMP,ENG OIL
STRAINER COMP, ENG OIL

16520-32E00-000  

16520-32E01-000
 1652032E00000

Unit Price

11
CAP, OIL STRAINER
CAP

16523-32E00-000   1652332E00000

1652332E00000

Unit Price

12
BOLT (6X12)
BOLT (6X12)

09103-06285-000   0910306285000

0910306285000

Unit Price

13
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-37450-000   1651037450000

1651037450000

Unit Price

14
O RING (D:2.4,ID:15.8)
O RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000
Not available
15
CAP, OIL FILTER

16512-14D00-000   1651214D00000

1651214D00000

Unit Price

16
O RING OIL FLT CAP
O RING (D:2.4, ID:73)

09280-72001-000   0928072001000

0928072001000
Not available
17
SPRING

09440-21006-000   0944021006000

0944021006000

Unit Price

18
BOLT,6X16<br />BOLT
BOLT, 6X16
BOLT

01547-06167-000   0154706167000

0154706167000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
