HANDLEBAR FOR SUZUKI DR 650 2019

FRONT FORK

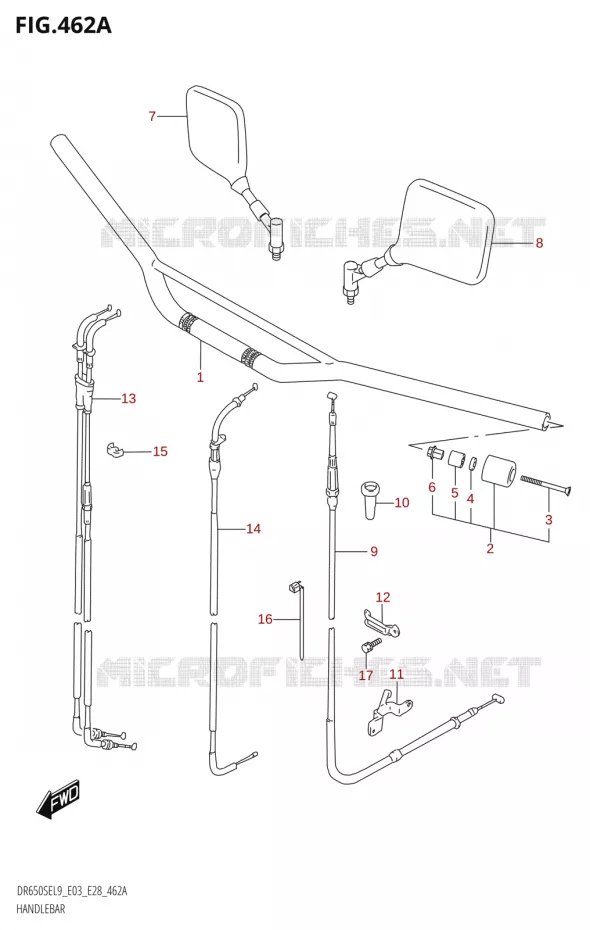

HANDLEBAR Suzuki MOTO 650 DR 2019 DR650SE L9 (E03)
1
HANDLEBAR(BLACK)

56110-32E00-291   5611032E00291

5611032E00291

Unit Price

2
BALANCER SET, HANDLEBAR

56200-29832-000   5620029832000

5620029832000

Unit Price

3
.SCREW
.SCREW

02122-0660B-000   021220660B000

021220660B000

Unit Price

4
.WASHER(6.5X16X4)

09160-06131-000   0916006131000

0916006131000

Unit Price

5
.EXPANDER, HANDLE BALANCER

56272-10G20-000   5627210G20000

5627210G20000

Unit Price

6
.NUT, HANDLE BALANCER

56273-10G10-000   5627310G10000

5627310G10000

Unit Price

7
MIRROR ASSY, RR VIEW, R

56500-06G30-000   5650006G30000

5650006G30000

Unit Price

8
MIRROR ASSY, RR VIEW, L

56600-06G30-000   5660006G30000

5660006G30000

Unit Price

9
CABLE ASSY, CLUTCH

58200-32E01-000   5820032E01000

5820032E01000

Unit Price

10
BOOT,CLUTCH CABLE
BOOT, CLUTCH CABLE

58273-31000-000  

58273-31001-000
 5827331000000

Unit Price

11
STOPPER, CLUTCH CABLE

58634-32E00-000   5863432E00000

5863432E00000

Unit Price

12
CLAMP

09403-09307-000  

09403-09328-000
 0940309307000

Unit Price

13
CABLE ASSY, THROTTLE

58300-32E00-000   5830032E00000

5830032E00000

Unit Price

14
CABLE, STARTER

58410-32E00-000   5841032E00000

5841032E00000

Unit Price

15
CLIP
CLIP

09408-00066-000   0940800066000

0940800066000

Unit Price

16
CLAMP<br />CLAMP(L:235)
CLAMP
CLAMP(L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

17
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
