CYLINDER

CRANKCASE FOR SUZUKI DR 650 2021

CRANKCASE COVER

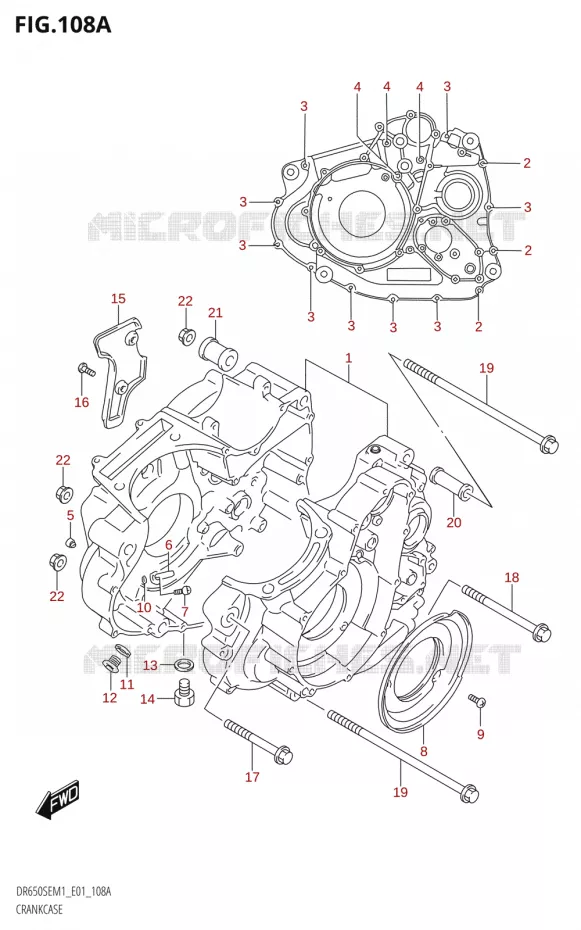

CRANKCASE Suzuki MOTO 650 DR 2021 DR650SE M1 (E01)
1
CRANKCASE SET

11300-32882-000   1130032882000

1130032882000

Unit Price

2
BOLT
BOLT

01547-0660A-000  

01547-0660B-000
 015470660A000

Unit Price

3
.BOLT
.BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

4
.BOLT

01547-0680A-000   015470680A000

015470680A000

Unit Price

5
.JET, OIL GALLERY

11180-43410-000   1118043410000

1118043410000

Unit Price

6
JET, PISTON COOLING

11390-04F00-000   1139004F00000

1139004F00000

Unit Price

7
BOLT(6X12)
BOLT(6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

8
SEPARATOR, CRANKCASE OIL

11323-32E00-000   1132332E00000

1132332E00000

Unit Price

9
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

10
O RING<br />O-RING(D:1.2,ID:4)
O RING
O-RING(D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

11
GASKET,13.8X18.8X0.4<br />GASKET(13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET(13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

12
PLUG, CYL HEAD<br />PLUG(14X12)
PLUG, CYL HEAD
PLUG(14X12)

09248-14011-000  

0924814011000
Not available
13
GASKET,13.8X18.8X0.4<br />GASKET(13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET(13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

14
PLUG<br />PLUG(14X12)
PLUG
PLUG(14X12)

09247-14026-000   0924714026000

0924714026000

Unit Price

15
COVER, BREATHER

11317-32E00-000   1131732E00000

1131732E00000

Unit Price

16
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

17
BOLT(10X100)

09103-10110-000   0910310110000

0910310110000

Unit Price

18
BOLT(10X130)

09103-10237-000   0910310237000

0910310237000

Unit Price

19
BOLT
BOLT(10X235)

09103-10239-000   0910310239000

0910310239000

Unit Price

20
SPACER, ENGINE MOUNT(L:65)
SPACER(L:65)

11610-45410-000   1161045410000

1161045410000

Unit Price

21
SPACER,ENGINE MOUNT(L27)<br />SPACER,ENGINE MOUNT,L27(L:27)
SPACER, ENGINE MOUNT(L27)
SPACER, ENGINE MOUNT, L27(L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

22
NUT<br />NUT(M10)
NUT
NUT(M10)

09159-10115-000   0915910115000

0915910115000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki DR 650 SE of DR. Let us know if you have any questions.
