CARBURETOR FOR SUZUKI FREEWIND 650 1998

CARBURETOR FITTINGS

Item numbers

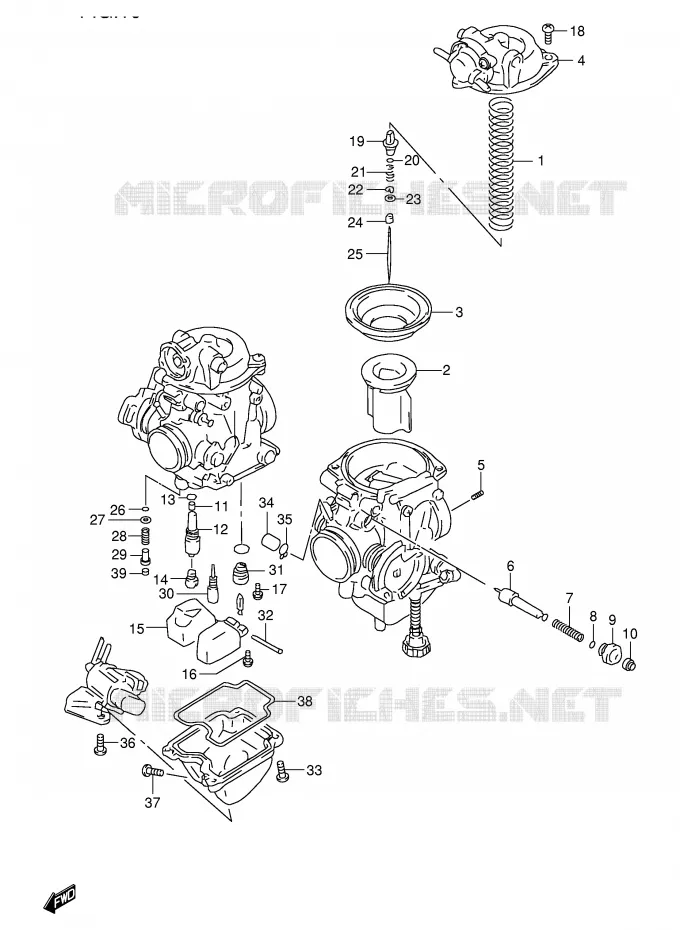

CARBURETOR Suzuki MOTO 650 FREEWIND 1998 XF650W(E2)
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
29
30
30
31
31
32
33
34
35
36
37
38
39
1
SPRING

13573-04F00-000   1357304F00000

1357304F00000

Unit Price

2
VALVE, PISTON

13501-04F00-000   1350104F00000

1350104F00000
Not available
2
VALVE, PISTON

13501-04F30-000   1350104F30000

1350104F30000
Not available
3
DIAPHRAGM

13507-04F00-000   1350704F00000

1350704F00000
Not available
4
COVER ASSY, DIAPHRAGM, LH

13502-04F00-000   1350204F00000

1350204F00000
Not available
4
COVER ASSY, DIAPHRAGM, RH

13502-04F10-000   1350204F10000

1350204F10000
Not available
5
JET, PILOT AIR (150)
JET, PILOT AIR (150)

09492-30013-000   0949230013000

0949230013000
Not available
5
DISCONTINUE
JET, PILOT AIR (155)

09492-31001-000   0949231001000

0949231001000
Not available
6
PLUNGER ASSY

13411-04F00-000   1341104F00000

1341104F00000
Not available
7
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

8
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

9
GUIDE SCREW,PLUNGER<br />HOLDER, GUIDE
GUIDE SCREW, PLUNGER
HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

10
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

11
JET, NEEDLE (P-0)

09494-00907-000   0949400907000

0949400907000
Not available
12
HOLDER, JET

13385-04F00-000   1338504F00000

1338504F00000
Not available
13
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

14
JET, MAIN (115)

09491-23012-000   0949123012000

0949123012000

Unit Price

14
JET, MAIN (122.50)
JET, MAIN (122.5)

09491-24023-000   0949124023000

0949124023000

Unit Price

15
FLOAT ASSY

13250-04F00-000   1325004F00000

1325004F00000

Unit Price

16
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

17
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

18
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

19
HOLDER
HOLDER

13418-33E00-000   1341833E00000

1341833E00000

Unit Price

20
O RING
O RING

09280-05004-000   0928005004000

0928005004000

Unit Price

21
SPRING

13481-04F00-000   1348104F00000

1348104F00000

Unit Price

22
E RING,MULTIPLE JET NOZZLE<br />E RING
E RING, MULTIPLE JET NOZZLE
E RING

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

23
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

24
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

24
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

25
NEEDLE, JET (5DH23-53-3)

13383-04F00-000   1338304F00000

1338304F00000
Not available
25
NEEDLE, JET (5DH34-53-3)

13383-04F40-000   1338304F40000

1338304F40000
Not available
26
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

27
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

28
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

29
ADJUSTER<br />SCREW, PILOT (3.0)
ADJUSTER
SCREW, PILOT (3.0)

13279-33E00-000   1327933E00000

1327933E00000

Unit Price

30
JET, PILOT (20)

09492-20024-000   0949220024000

0949220024000

Unit Price

30
JET, PILOT (22.5)

09492-22014-000   0949222014000

0949222014000

Unit Price

31
VALVE ASSY, NEEDLE

13370-04F00-000  

13370-04F01-000
 1337004F00000

Unit Price

31
VALVE ASSY, NEEDLE

13370-04F40-000   1337004F40000

1337004F40000
Not available
32
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-01010-000   1325401010000

1325401010000

Unit Price

33
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

34
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

35
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

36
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

37
PLUG,DRAIN<br />SCREW, DRAIN
PLUG, DRAIN
SCREW, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

38
GASKET

13258-04F00-000   1325804F00000

1325804F00000

Unit Price

39
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

99x
CARBURETOR ASSY, LH

13201-04F00-000   1320104F00000

1320104F00000
Not available
99x
CARBURETOR ASSY, LH

13201-04F01-000   1320104F01000

1320104F01000
Not available
99x
CARBURETOR ASSY, LH

13201-04F10-000   1320104F10000

1320104F10000
Not available
99x
CARBURETOR ASSY, LH

13201-04F11-000   1320104F11000

1320104F11000
Not available
99x
CARBURETOR ASSY, LH

13201-04F30-000   1320104F30000

1320104F30000
Not available
99x
CARBURETOR ASSY, RH

13201-04F31-000   1320104F31000

1320104F31000
Not available
99x
CARBURETOR ASSY, RH

13201-04F41-000   1320104F41000

1320104F41000
Not available
99x
CARBURETOR ASSY, RH

13202-04F00-000   1320204F00000

1320204F00000
Not available
99x
CARBURETOR ASSY, RH

13202-04F01-000   1320204F01000

1320204F01000
Not available
99x
CARBURETOR ASSY, RH

13202-04F10-000   1320204F10000

1320204F10000
Not available
99x
CARBURETOR ASSY, RH

13202-04F11-000   1320204F11000

1320204F11000
Not available
99x
CARBURETOR ASSY, RH

13202-04F30-000   1320204F30000

1320204F30000
Not available
99x
CARBURETOR ASSY, LH

13202-04F31-000   1320204F31000

1320204F31000
Not available
99x
CARBURETOR ASSY, LH

13202-04F41-000   1320204F41000

1320204F41000
Not available
