CLUTCH

TRANSMISSION FOR SUZUKI FREEWIND 650 1999

GEAR SHIFTING ASSY

Item numbers

SHAFT SET, CNTR
COUNTERSHAFT (NT:12)

24120-14810-000 2412014810000

$192,97

Unit Price

GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:16)

24221-14A10-000 2422114A10000

$111,97

Unit Price

GEAR, 3RD DRIVE

24231-12D20-000

24231-12D21-000

$102,97

Unit Price

GEAR, 4TH DRIVE
GEAR, 4TH DRIVE (NT:21)

24241-14A10-000 2424114A10000

$100,97

Unit Price

BUSH

09300-25023-000

24252-19F00-000

$17,97

Unit Price

GEAR, 5TH DRIVE
GEAR, 5TH DRIVE (NT:23)

24251-14A10-000 2425114A10000

$100,97

Unit Price

WASHER

09167-25012-000 0916725012000

$4,97

Unit Price

WASHER, 5TH DRIVE GEA
WASHER (25X34X1.0)

09181-25167-000 0918125167000

$5,97

Unit Price

3RD PINION CIRCLIP
CIRCLIP

09380-25003-000 0938025003000

$5,97

Unit Price

BEARING 22 X 56 X 16
BEARING, RH (22X56X16)

09262-22028-000 0926222028000

$93,97

Unit Price

BALL BEARING
BEARING, LH (17X40X12)

09262-17027-000 0926217027000

$41,97

Unit Price

BEARING, 17X40X12

09262-17045-000

09262-17046-000

$45,97

Unit Price

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-14A00-000 2474114A00000

$8,97

Unit Price

BOLT

01500-08163-000

01500-0816B-000

$4,97

Unit Price

SHAFT, DRIVE
DRIVESHAFT

24130-14A10-000 2413014A10000

$180,97

Unit Price

GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:29)

24311-14A01-000 2431114A01000

$101,97

Unit Price

BUSH

09300-20032-000 0930020032000

$22,97

Unit Price

SHIM
WASHER (20X30X1.0)

09181-20195-000 0918120195000

$3,97

Unit Price

GEAR, 2ND DRIVEN
GEAR, 2ND DRIVEN (NT:26)

24321-14A10-000 2432114A10000

$111,97

Unit Price

BUSH

09301-25002-000 0930125002000

$25,97

Unit Price

3RD PINION CIRCLIP
CIRCLIP

09380-25003-000 0938025003000

$5,97

Unit Price

GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:26)

24331-14A20-000 2433114A20000

$102,97

Unit Price

BUSH, DRIVEN GEAR
BUSH, 3RD DRIVEN

24332-24510-000 2433224510000

$17,97

Unit Price

LOCK WASHER
WASHER

09169-25001-000 0916925001000

$3,97

Unit Price

LOCK WASHER
WASHER (25.1X41X1.5)

09167-25013-000 0916725013000

$4,97

Unit Price

WASHER
WASHER (25.5X35X1.0)

09167-25016-000 0916725016000

$5,97

Unit Price

GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:21)

24341-14A10-000 2434114A10000

$100,97

Unit Price

GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:19)

24351-14A10-000 2435114A10000

$100,97

Unit Price

BEARING DRIVE SHAFT
BEARING, RH (20X42X12)

09262-20059-000 0926220059000

$28,97

Unit Price

BEARING, 25X62X17

09262-25083-000

09262-25125-000

$71,97

Unit Price

OIL SEAL, 25X44X7
OIL SEAL, LH (25X44X7)

09283-25096-000 0928325096000

$18,97

Unit Price

SPROCKET, ENGINE(15T)
SPROCKET (NT:15)

27511-31D00-000 2751131D00000

$47,97

Unit Price

PLATE, ENGINE SPROCKET
PLATE

27512-44B00-000 2751244B00000

$9,97

Unit Price

DAMPER, ENGINE SPROCKET
DAMPER

27517-37400-000 2751737400000

$16,97

Unit Price

BOLT
BOLT (6X13)

09111-06039-000 0911106039000

$10,97

Unit Price

CHAIN, DRIVE(RK525SMOZ8)

27600-32C10-110

27600-06G40-112

$286,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

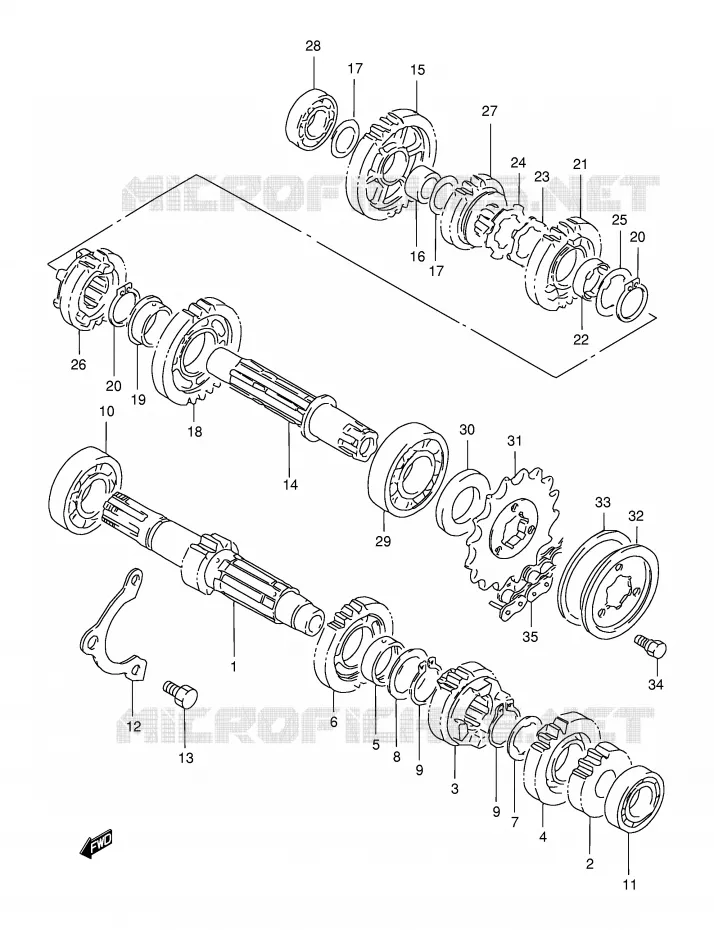

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
