Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (MODEL V / W / X E4,E17,E18,E22,E25,E34,P9,P37) REFER TO FIG.25C(D-10) FOR MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,

HEADLIGHT (MODEL Y / K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) FOR SUZUKI FREEWIND 650 2000

INDICATORS

Item numbers

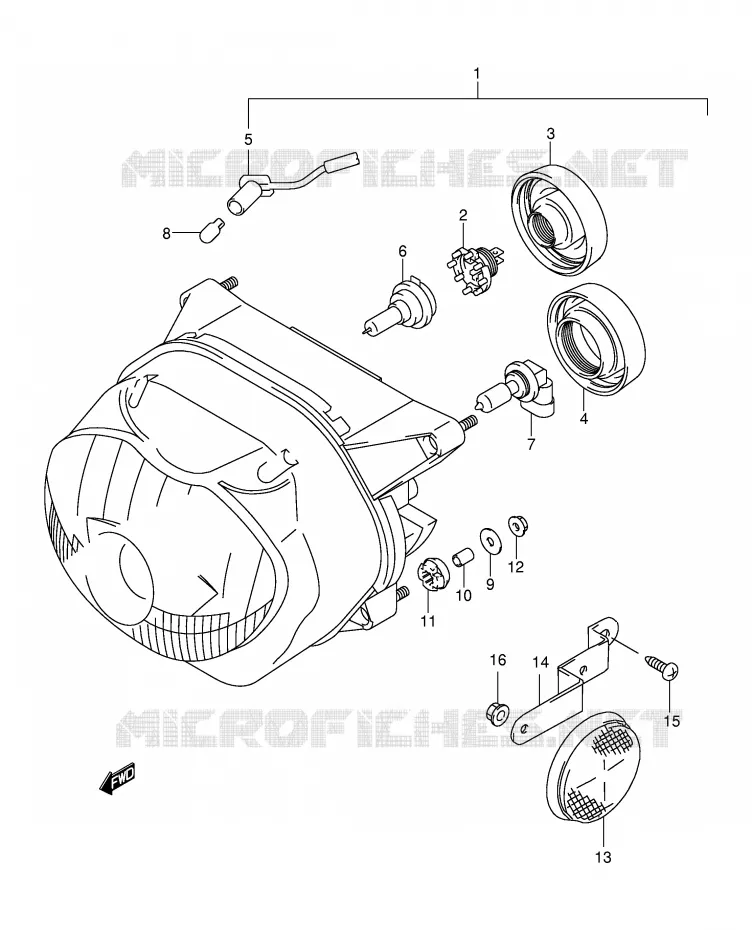

HEADLIGHT (MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) Suzuki MOTO 650 FREEWIND 2000 XF650Y(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
HEADLAMP ASSY

35100-04F90-999   3510004F90999

3510004F90999
Not available
2
ADAPTER ASSY
ADAPTOR ASSY

35175-24F00-000   3517524F00000

3517524F00000

Unit Price

3
SOCKET, COVER

35125-24F10-000   3512524F10000

3512524F10000

Unit Price

4
SOCKET, COVER

35125-24F00-000   3512524F00000

3512524F00000

Unit Price

5
CORD ASSY

36118-04F90-000   3611804F90000

3611804F90000
Not available
6
BULB(12V21W)
BULB (12V, 55W, H7, PX26D, PHLIPS)

09471-12188-000  

0947112188000
Not available
7
BULB(12V55W)
BULB (12V, 60W, HB3, P20D)

09471-12151-000  

0947112151000
Not available
8
09471-12216
BULB (12V, 5W)

09471-12081-000  

0947112081000
Not available
9
WASHER (6.5X20X1.6)
WASHER (6.5X20X1.6)

09160-06088-000   0916006088000

0916006088000

Unit Price

10
SPACER (6.5X9X12.5)
SPACER (6.5X9X12.5)

09180-06267-000   0918006267000

0918006267000

Unit Price

11
CUSHION
CUSHION

09320-09010-000   0932009010000

0932009010000

Unit Price

12
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

13
REFLEX REFLECTOR ASSY, FR SIDE

35950-14A10-000  

35950-14A11-000
 3595014A10000

Unit Price

14
BRACKET, FRONT SIDE REAR

35956-04F00-000   3595604F00000

3595604F00000
Not available
15
03511-0516A
SCREW, FRONT SIDE REAR

03512-05163-000  

0351205163000
Not available
16
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL Y/K1 E4,E17,E18,E22,E25,E34,E54,P9,P37) of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.

Genuine parts for Suzuki 650 FREEWIND 2000
