OIL PUMP

OIL COOLER FOR SUZUKI FREEWIND 650 2001

OIL PIPE

Item numbers

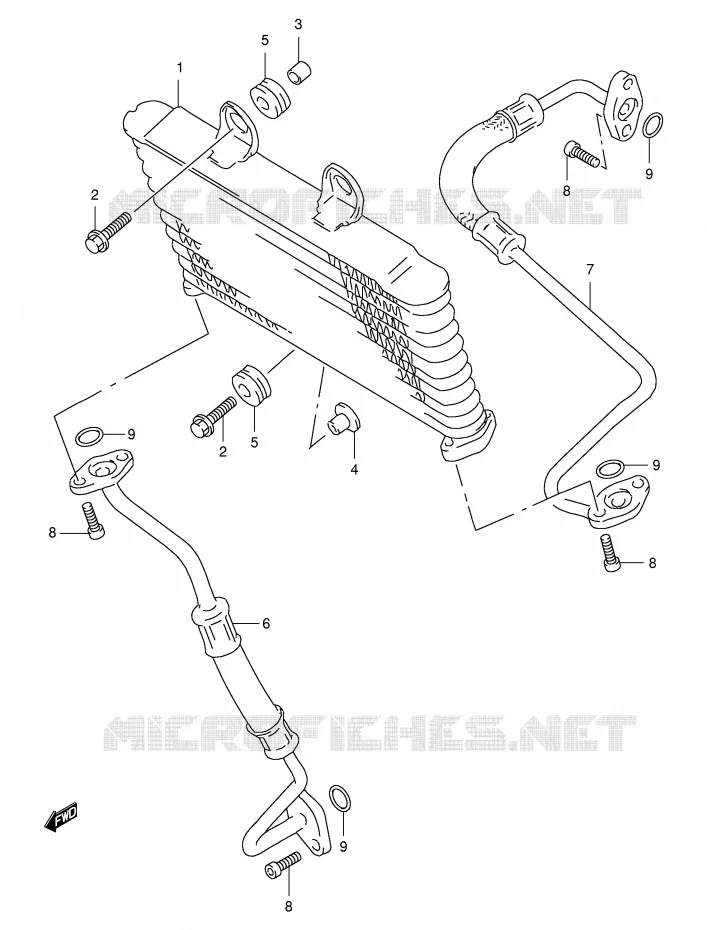

OIL COOLER Suzuki MOTO 650 FREEWIND 2001 XF650UK1(E2)

1

COOLER ASSY, OIL

16600-04F00-000 1660004F00000

Not available

2

BOLT

09116-06129-000

09116-06171-000

$4,97

Unit Price

3

SPACER
SPACER (6.5X10X10)

09180-06310-000 0918006310000

$3,97

Unit Price

4

SPACER(6.5X10X11.6)
SPACER, LOWER (6.5X10X11.6)

09180-06319-000 0918006319000

$6,97

Unit Price

5

CUSHION
CUSHION, OIL COOLER

09320-10015-000 0932010015000

$3,97

Unit Price

6

HOSE, OIL COOLER, RH

16460-04F00-000 1646004F00000

Not available

7

HOSE, OIL COOLER, LH

16470-04F00-000 1647004F00000

Not available

8

BOLT

07130-06163-000

07130-0616B-000

$6,97

Unit Price

9

O RING, CYLINDER
O RING (D:2.4, ID:12.3)

09280-12008-000 0928012008000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki FREEWIND 650 of FREEWIND. Let us know if you have any questions.
